BASSKIT AI 8SQ

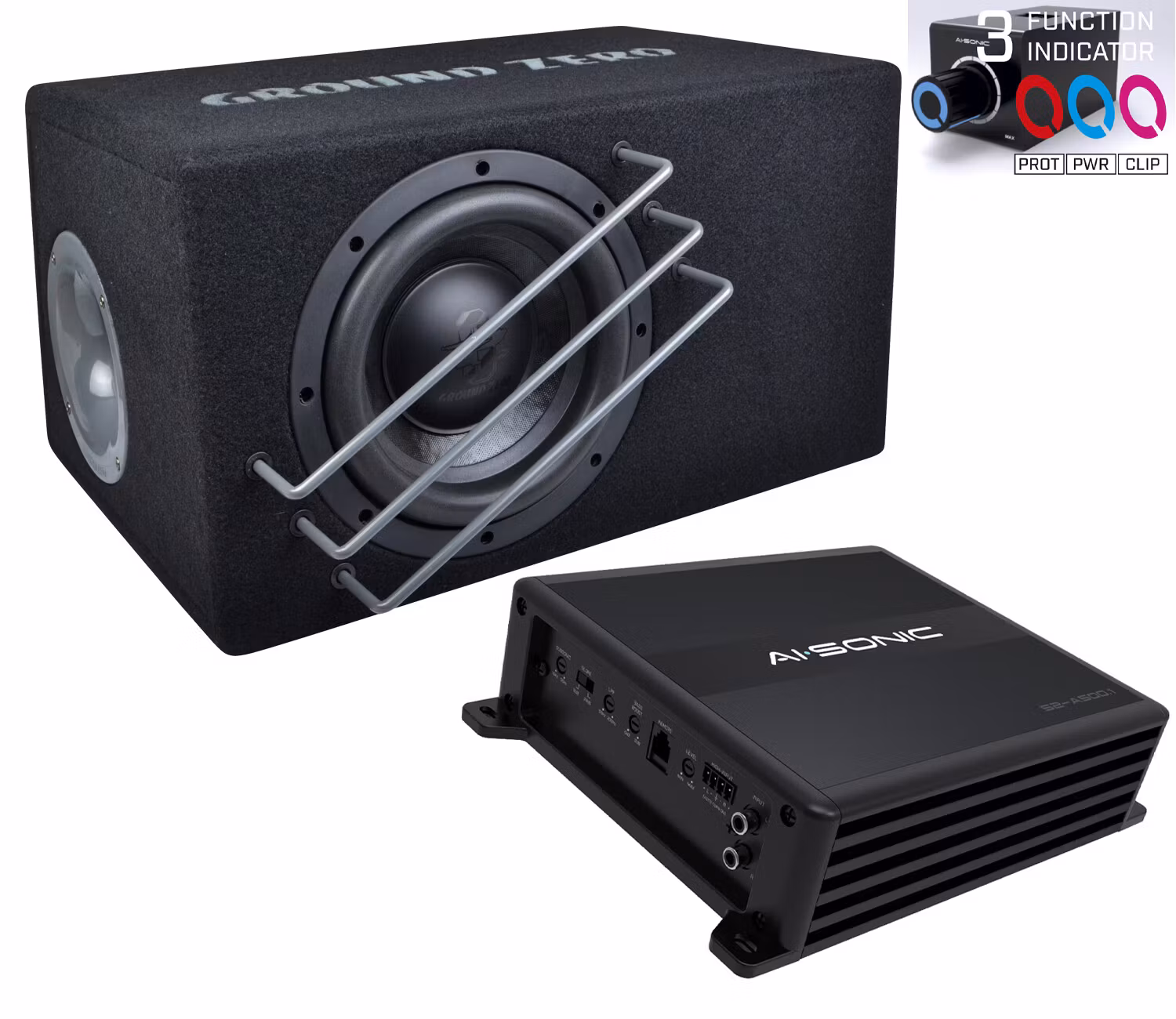

This kit includes Passive vented enclosure including 8″ GZUW 8SQ-D2 subwoofer.

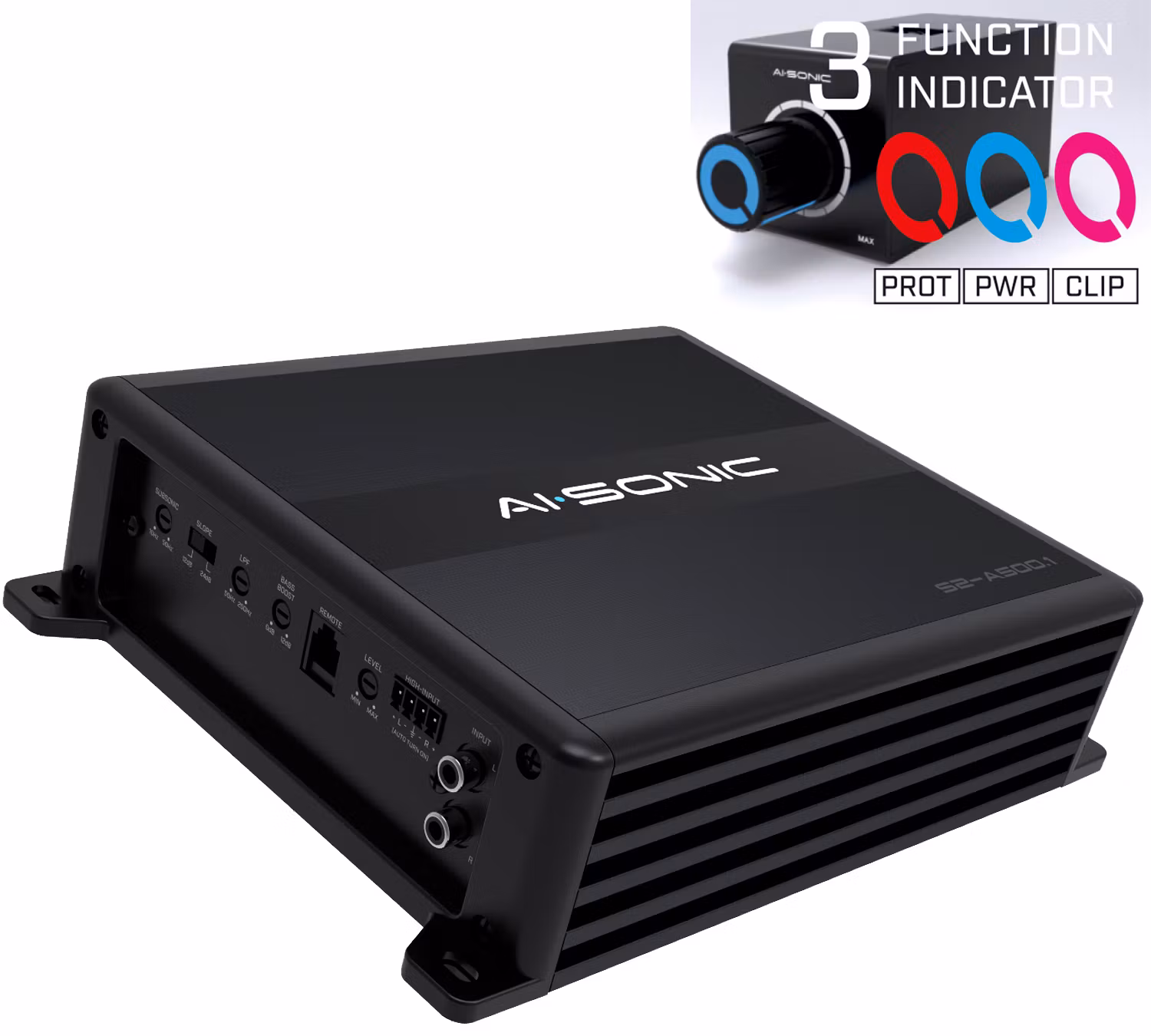

AI-Sonic S2-A500.1 is mono D class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs. Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo! Includes a remote control, which has three different indicator-leds. (protection, power and clipping) (Works only when LPF is turned on.)

Teknisk information

• RMS POWER (1ohm) 12v THD 0.5% 500W
• RMS POWER (2ohm) 12v THD 0.5% 350W
• RMS POWER (4ohm) 12v THD 0.5% 220W
• T.H.D 0.5%
• BANDWIDTH: 10-200 Hz
• S/N RATIO(A-WEIGHTED): 90dB
• INPUT SENSITIVITY: 0.35-6V
• LOW PASS: 50-200 Hz
• SUBSONIC: 10-50Hz
• CROSSOVER SLOPE: 12dB/24dB /oct
• BASS BOOST: 0-12dB(@45Hz)
• POWER FUSE: 30A•2
• HIGH-LEVEL VOLTAGE: 0.53-9V
• Cable fitting size:
• +12V = 20mm2
• GND = 20mm2
• REM = 6mm2
• SPEAKER = 6mm2
• Current Draw (Max): 57A
• DIMENSIONS W: 183mm / (7.2IN)
• H: 60mm / (2.4 IN)
• L: 274mm / (10.8 IN)

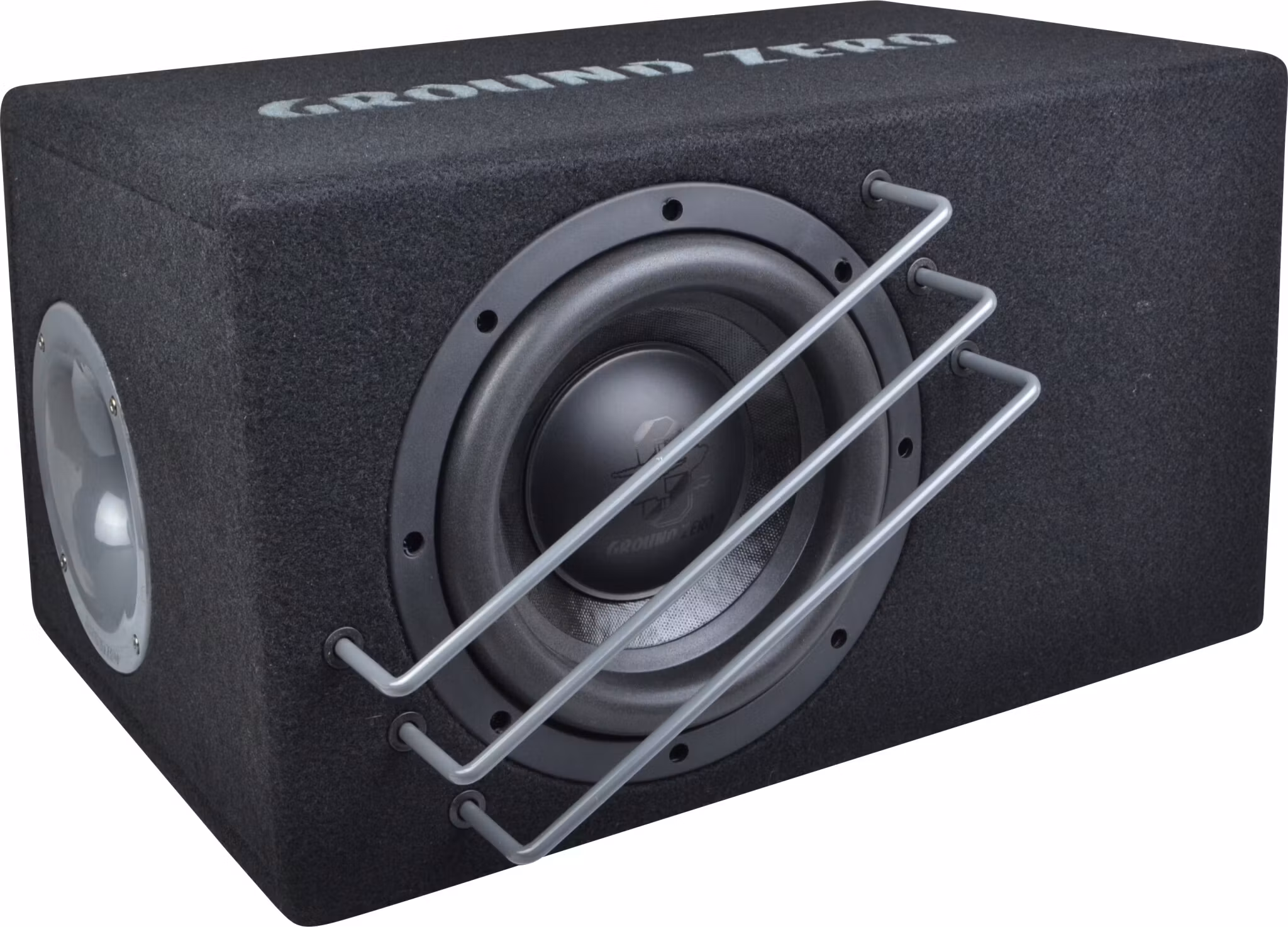

• 8″ vented SQ loaded enclosure
• Subwoofer GZUW 8SQ-D2
• Resonance-free aluminum cast basket
• 2″ copper voice coil
• High quality vented enclosure
• Airflow optimized ventilation tube
• Solid enclosure from MDF
• GZ Push terminal
• Power handling 300 Watts RMS
• Impedance 2x2 Ohm
• Xmax 20mm (p2p)
• New volume 20.5 Liter
• Tuning frequenzy 40 Hz
• Roll-off frequenzy 33 Hz
• Ventilation port 1x7cm
• Port length 34cm
• Dimensions (w x h x d) 430 x 250 x 318mm
• Backwall angle 78°.
