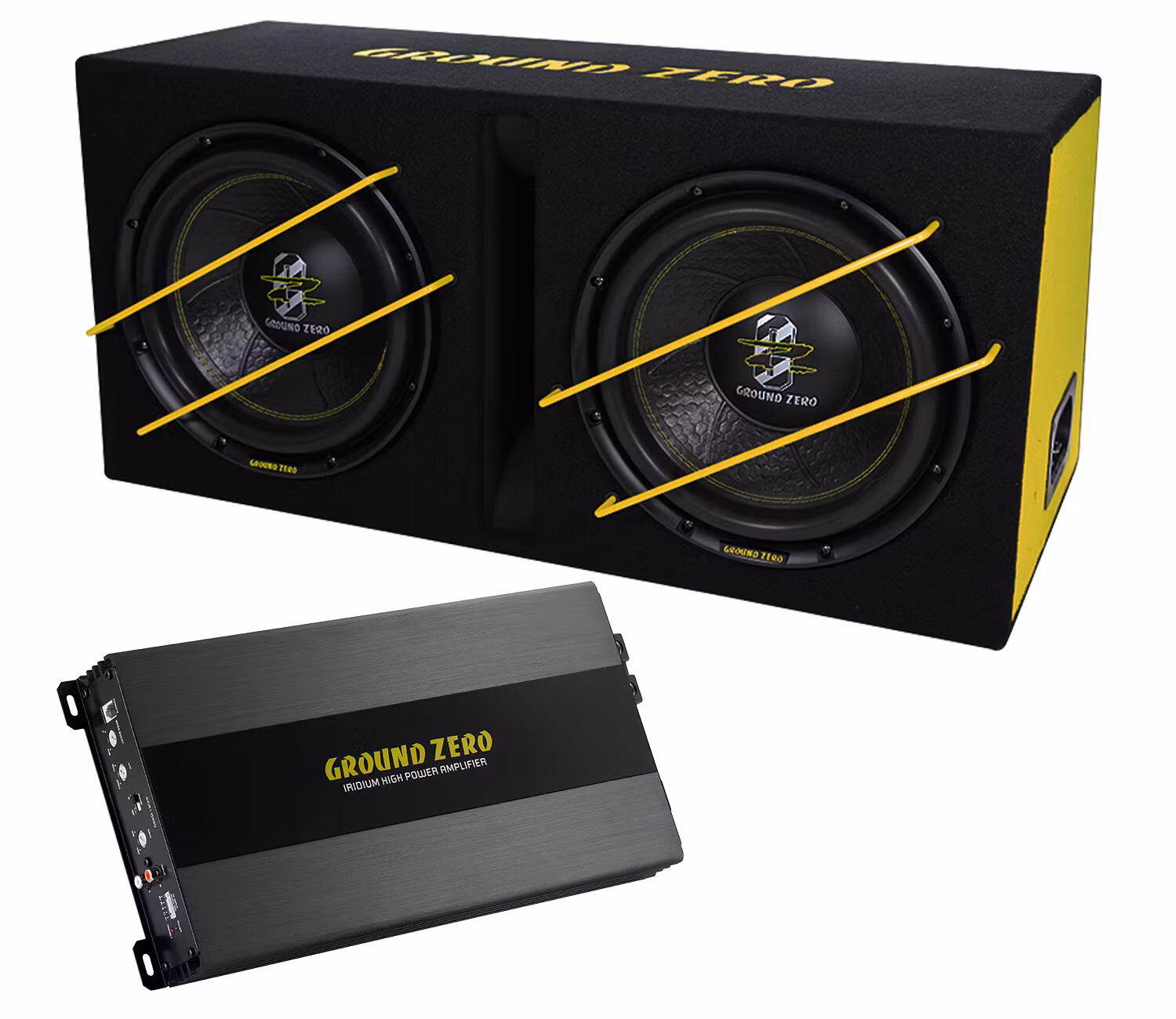

BASSKIT GZ 777

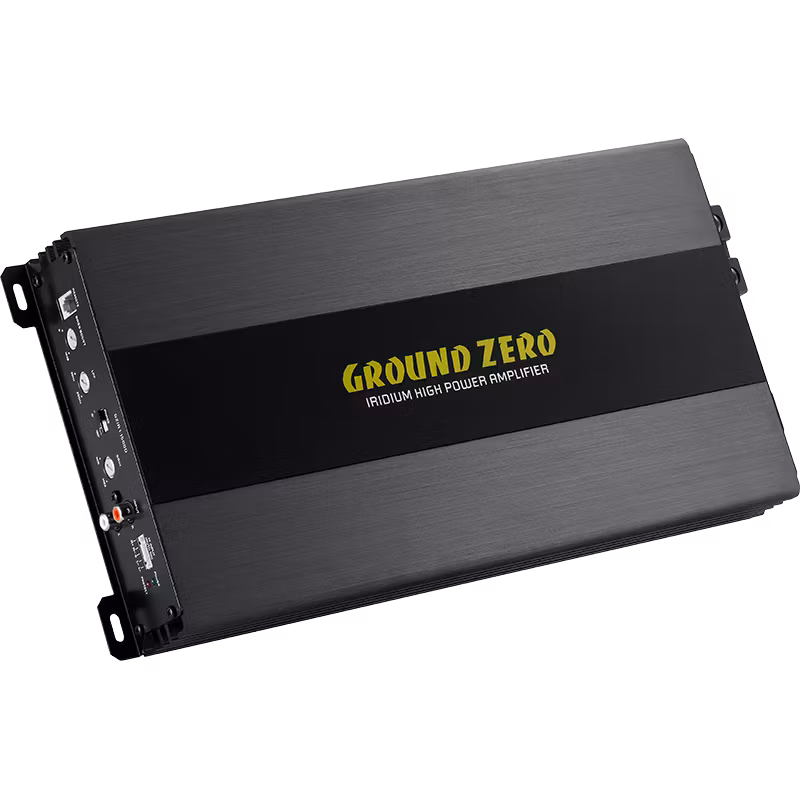

1-channel subwoofer amplifier with class D circuit, integrated active crossover and black anodized heatsink Mono amplifier Class D technology Variable active crossover and bass boost, phase shift Stable power supply Large terminals Black anodized heatsink with Ground Zero lettering Bass remote control included High-level input with auto-on function.

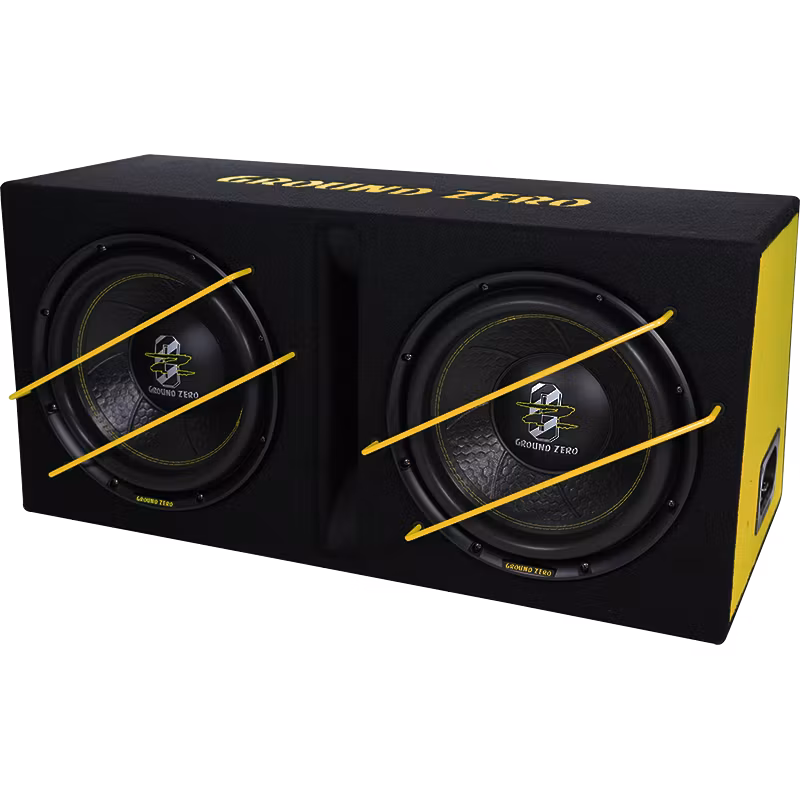

Passive vented enclosure including two 12″ IRIDIUM SPL subwoofers with EFP front bass channel and angled rear wall 12″ vented SPL subwoofer loaded enclosure Subwoofer GZIW 12XSPL-D2 Front vented Wooden enclosure Push terminal

Teknisk information

• Model
• SPL Subwoofer Box
• Diameter
• 2x 30 cm / 2x 12″
• Power Handling (RMS/SPL.)
• 1000 / 2000 Watts
• Net Volume
• 90 L / 3.18″
• Subwoofer
• 2x GZIW 12XSPL-D2
• Dimensions (B x H x T1/T2)
• 840 x 400 x 430/310 mm / 33.07″ x 15.75″ x 16.93″/12.20″
• High-Quality Class D amplifier
• Channels: 1
• Output Power (@ 4Ω): 775 Watts RMS
• Output Power (@ 2Ω): 1300 Watts RMS
• Output Power (@ 1Ω): 1500 Watts RMS
• Frequency Response: 10 – 250 Hz
• Low pass filter 30 Hz – 250 Hz (12 dB/oct)
• Total harmonic distortion (THD+N) 0.08%
• Damping factor 100
• Input sensitivity 200 mV – 6 V
• Bass remote control included
• Dimensions (W x L x H)
• 192 x 302 x 49 mm / 7.56 x 11.89 x 1.93″.
