Ground Zero GZCF 200NEO-PRO

200 mm / 8″ 2-way coaxial speaker system with coated paper cone and 25 mm / 1″ compression tweeter

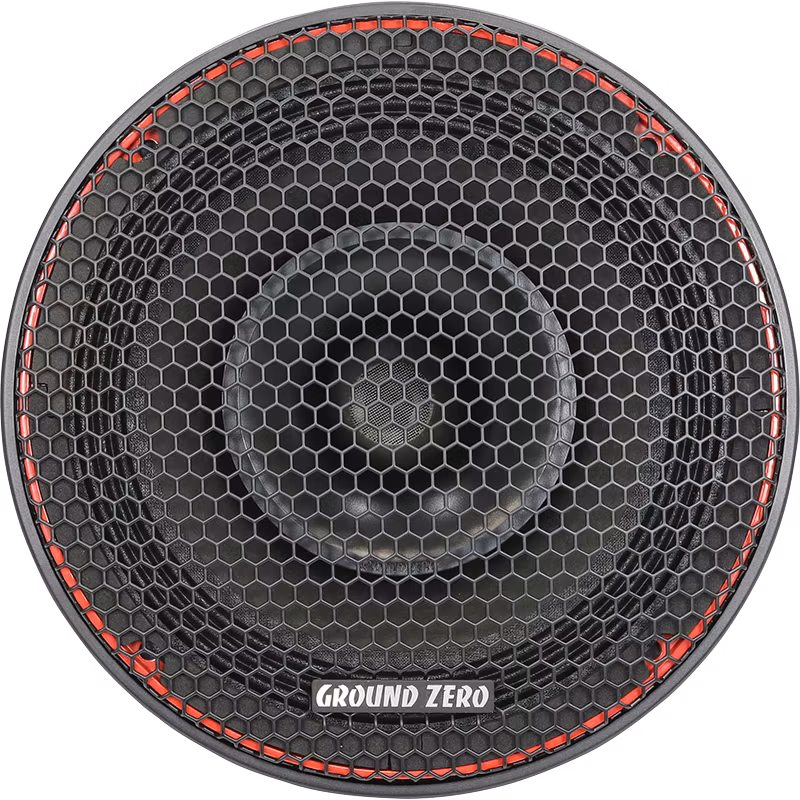

2-way high-power coaxial loudspeaker system Coated paper cone Wave shaped textile surround High-efficient neodymium motor Aluminum cast basket High efficiency (SPL) 25 mm / 1″ compression tweeter High-efficient neodymium motor For active use Incl. Hexagon style protection grill

Teknisk information

• Speaker diameter 200 mm / 8”
• Impedance 4 + 4 Ohm / ohms
• frequency response 120 Hz – 20 kHz
• power handling (RMS) 250 + 50 Watt / Watts (midwoofer/tweeter)
• power handling (max) 400 / 100 Watt / Watts (midwoofer/tweeter)
• sensitivity 99 dB
• resonance frequency: 83.5 Hz
• Vas: 13.25 L
• Qms: 3.72
• Qes: 0.19
• Qts: 0.18
• BL: 12.74
• Re: 3.29 Ohm
• Le: 0.36 mH
• Mms: 17.63 g
• Cms: 0.21 mm/n
• Xmax: 12 mm
• voice coil: 63 mm / 2.5”
• magnet: (midwoofer) Ø 105 mm / 4.1” Neodym
• mounting cutout: 181 mm
• mounting depth: 104 mm
