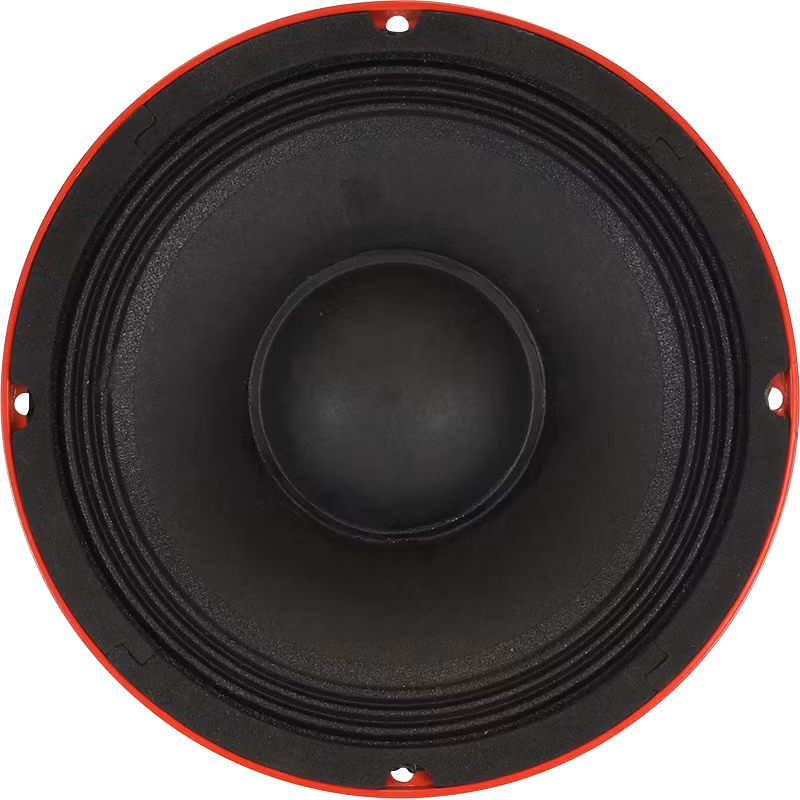

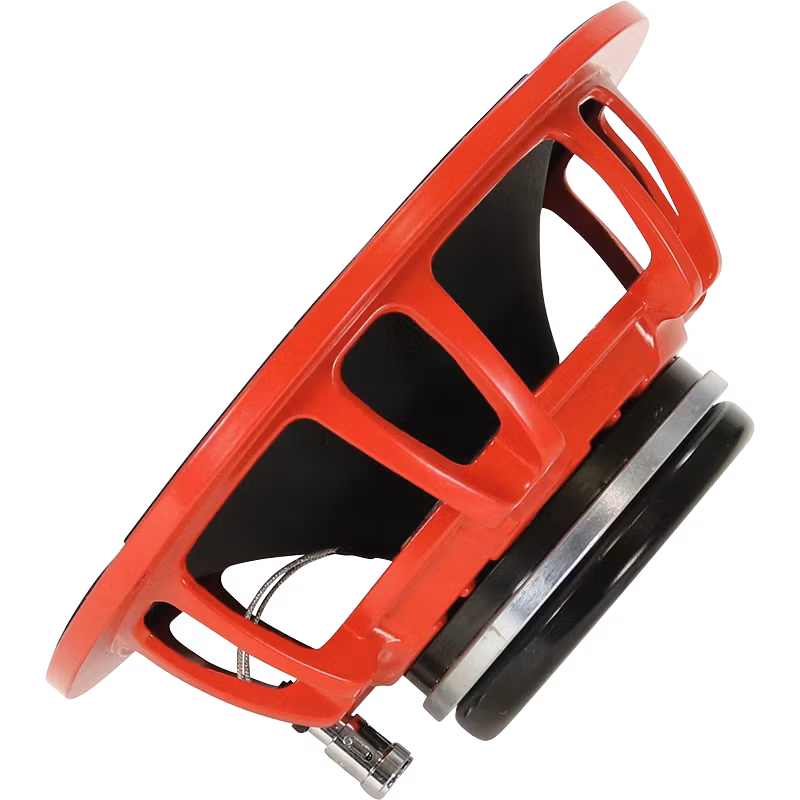

GROUND ZERO GZCM 8.0N-PROX

8″ high end SPL midrange speaker with neodymium motor and aluminum cast basket

8″ high power midrange speaker with neodymium motor 63 mm / 2.5″ CCA voice coil Fiber reinforced paper cone Neodymium motor Aluminum cast basket Aluminum phase plug water repellend cone Incl. protection grill Push terminal 1 piece / package

Teknisk information

• Speaker diameter: 200 mm / 8”
• Impedance 4 Ohm
• Frequency response: 120 Hz – 7 kHz
• Power handling (RMS) 300 Watt / Watts
• Power handling (max) 500 Watt / Watts
• Sensitivity: 98 dB
• Resonance frequency: 90 Hz
• Vas: 10.1 L / 0.36 cu.ft.
• Qms: 10.21
• Qes: 0.22
• Qts: 0.21
• BL: 13.1 N/A
• Re: 3.4 Ohm / ohms
• Le: 0.32 mH
• Mms: 19.8 g
• Cms: 0.16 mm/N
• Xmax (p2p) 12 mm / 0.47“
• Voice coil: 63 mm / 2.5”
• Magnet: 105 mm / 4.1”
• Neodym / neodymium
• Outer diameter: 210 mm / 8.27”
• Mounting cutout: 181 mm / 7.12”
• Mounting depth: 82 mm / 3.23”
