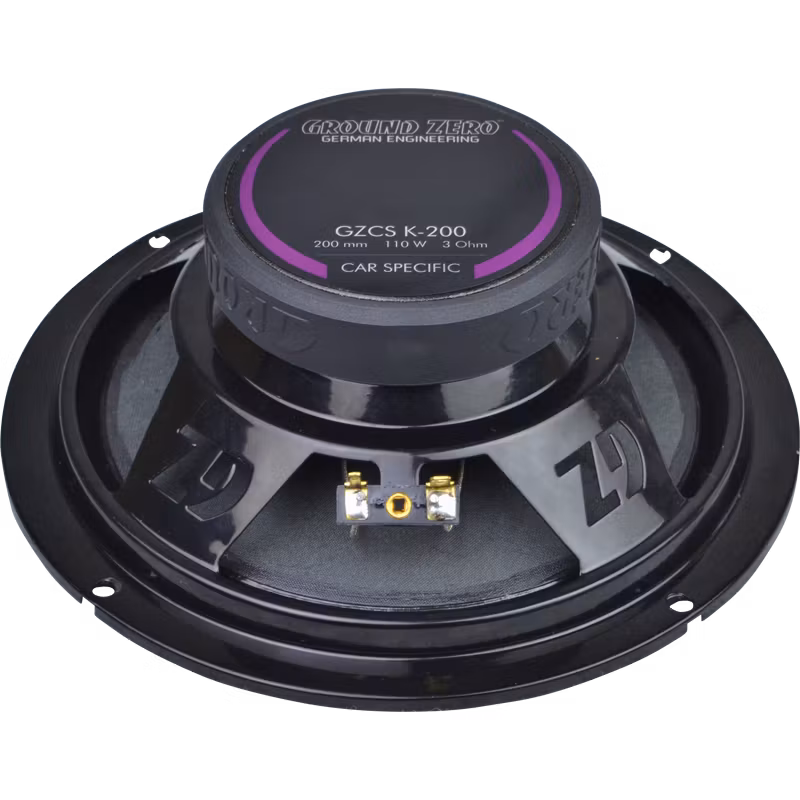

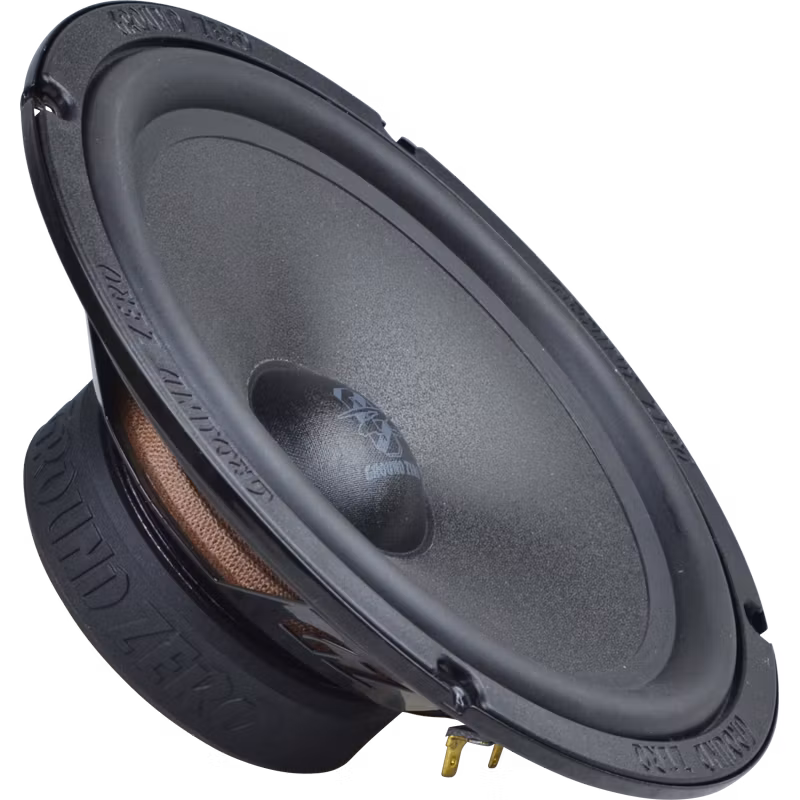

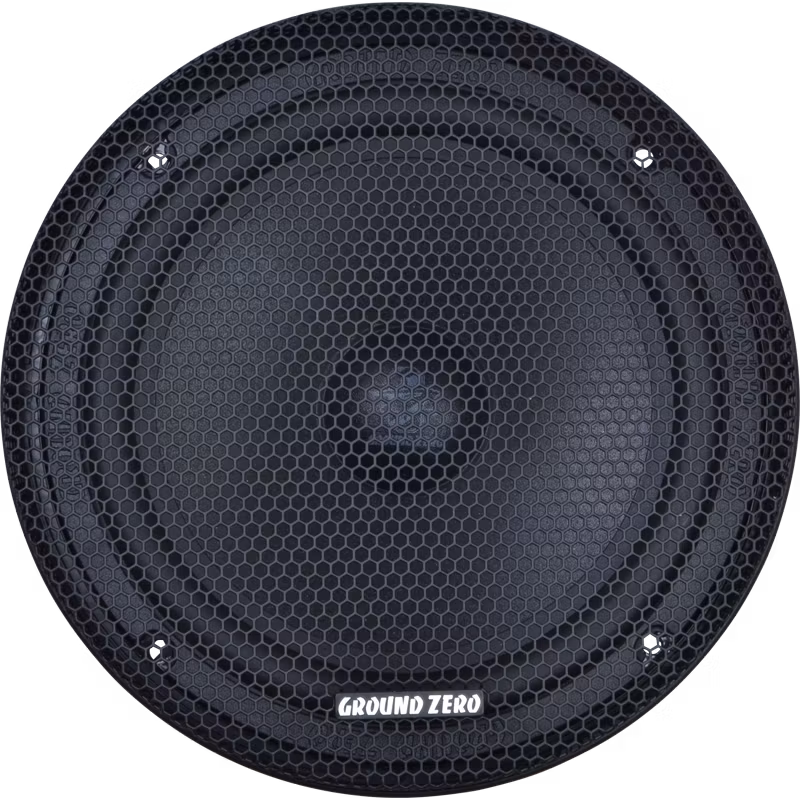

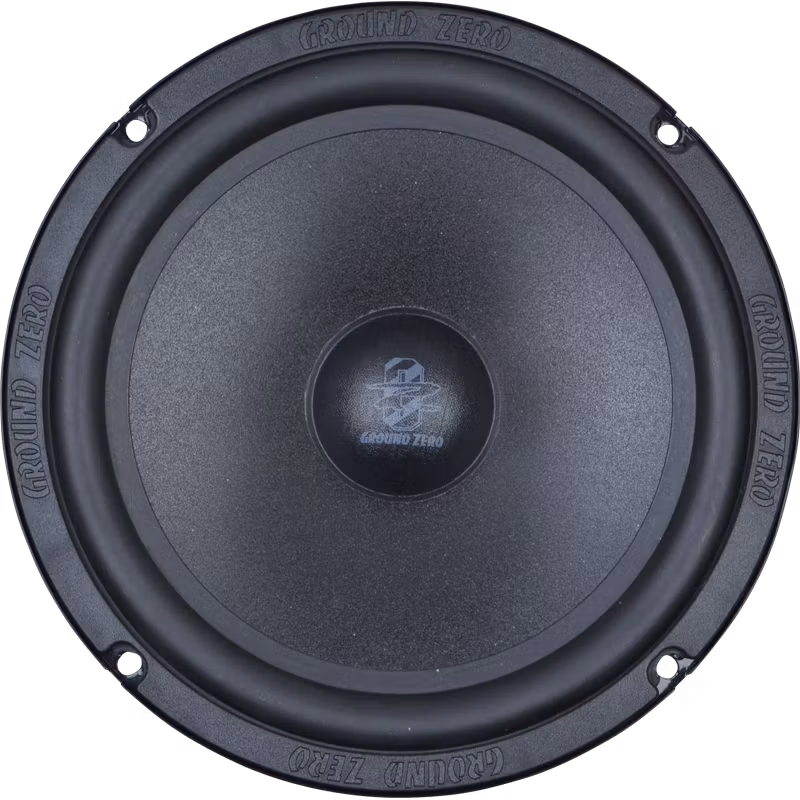

GROUND ZERO GZCS K-200VW

Plug´n´play installation Car specific 200 mm / 8″ midrange speaker for VW and identical brands

By also purchasing the GZCS T-25VW tweeters, you can upgrade your vehicle’s entire front speaker system at once, without cutting the original speaker wires.

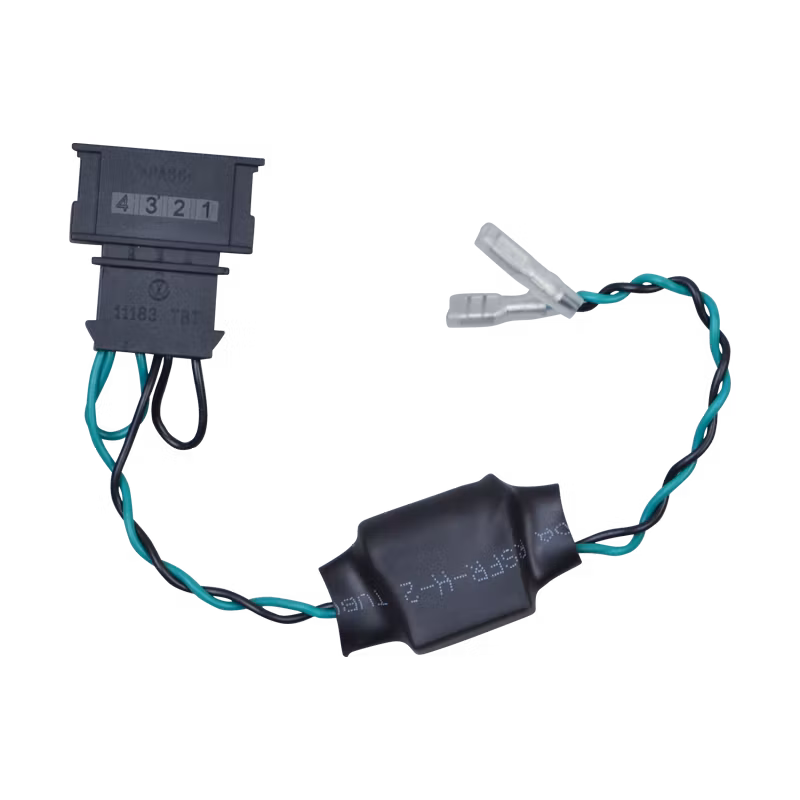

compatible with VW and identical brands Retrofit or replacement for factory loudspeakers Coated paper cone Powerful ferrite motor Resonance free steel basket 6 dB/oct in-line low pass filter Car specific connection 1 pair / package

Teknisk information

• Compatibility list with ACV 271320-25 speaker adapter:
• Volkswagen Caddy III (2K / 2KN) 2003-2015
• Volkswagen Caddy IV (2K / 2KN facelift) 2015-2020
• Volkswagen Transporter T5 2003-2009
• Volkswagen Transporter T5 facelift / T5.1 2009-2015
• Volkswagen Multivan T5 2003-2009
• Volkswagen Multivan T5 facelift / T5.1 2009-2015
• Volkswagen Caravelle T5 2003-2009
• Volkswagen Caravelle T5 facelift / T5.1 2009-2015
• Volkswagen Golf V (1K) 2003-2008
• Volkswagen Golf VI Variant (1KM) 2009-2013
• Volkswagen Jetta V (1KM) 2005-2010
• Volkswagen Jetta VI (16) 2010-2018
• Volkswagen Sharan II (7N) 2010-2022
• Volkswagen Tiguan I (5N) 2007-2016
• Volkswagen Touran I (1T) 2003-2015
• Specification:
• Model Car specific midrange speaker
• Diameter 200 mm / 8″
• Power handling (RMS/max.) 80 / 110 Watts
• Impedance 3 Ohms
• Efficiency 88.5 dB
• Frequency Response 40 Hz – 4.5 kHz
• Voice coil 38 mm / 1.5″ copper
• Cone Reinforced paper
• Mounting Ø 177 mm / 6.97″
• Mounting depth 69 mm / 2.72″
• Resonance frequency (Fs) 48 Hz
• Damping ratio (Qts) 0.61
• Equiv. air volume (Vas) 30.3 L / 1.01 ft³
