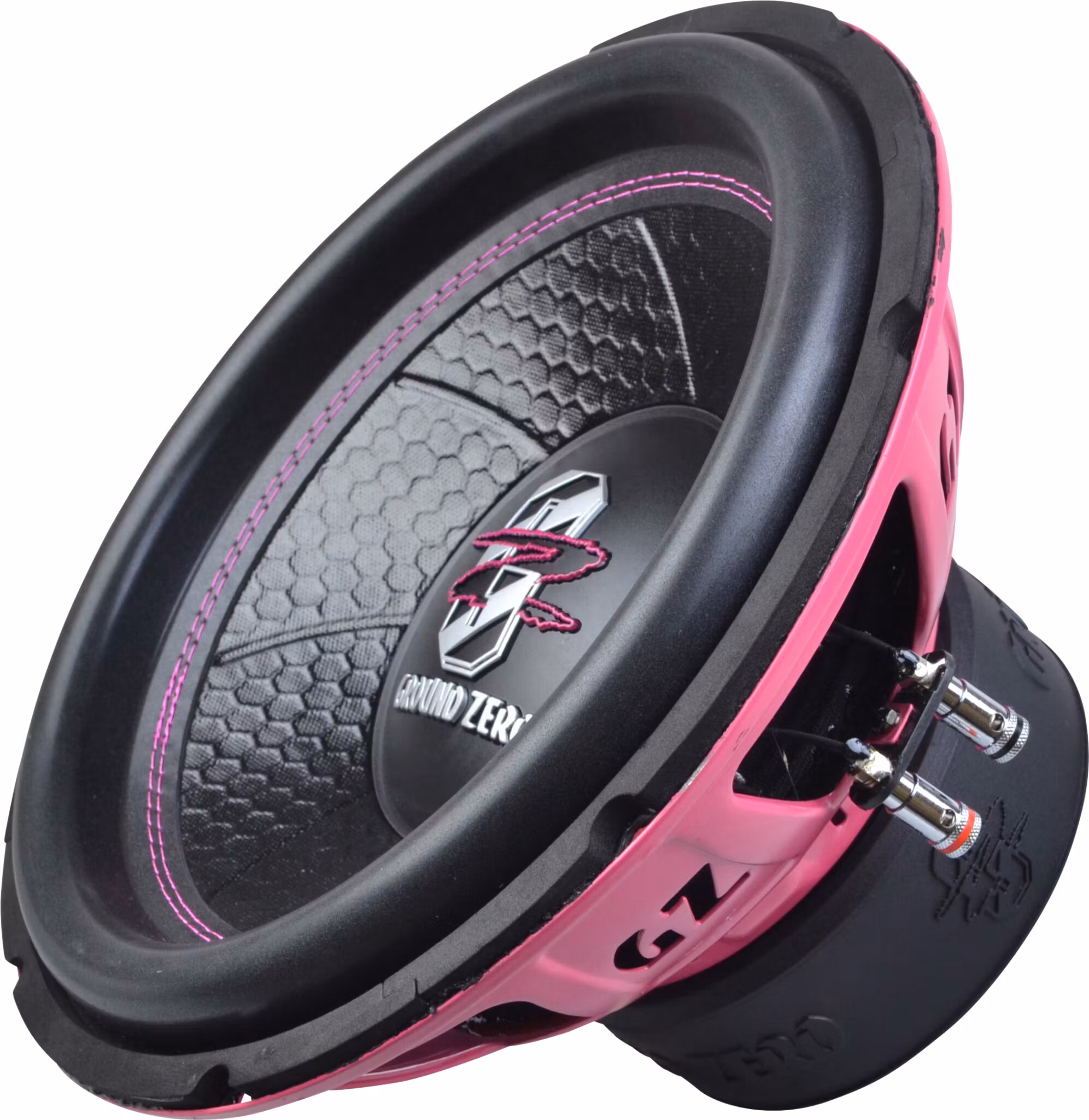

Ground Zero GZIW 12XSPL-D2 PINK

Don´t get fooled by the affordable price! These budget class SPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.

Teknisk information

• Pink 12″ XSPL Subwoofer
• Progressive 2-layer spider
• Voice coil 63 mm / 2.5″
• Impedance 2 x 2 Ohm
• Re 4.33 Ohm
• Fs 32,5 Hz
• Qms 10.76
• Qes 0.79
• Qts 0.73
• Vas 40.4 L
• Le 2.48 mH
• Mms 231 gr
• Bl 15.9
• Xmax 34 mm / 1.34″
• Effiency ( SPL 1w / 1m )
• Power handling ( SPL ) 1000 Watts
• Rec. amplifier power 500 - 1000 Watts
• Outer diameter 310 mm / 12.2″
• Mounting cut out 285 mm / 11.22″
• Mounting depth 162 mm / 6.38″
• Recommended enclosures:
• Vented 45L net
• Port 10cm / 4″, length 21cm
• Bandpass ( 4th order ) 25L net sealed / 40L net vented
• Port 10cm / 4″, length 11cm
• Tuning frequency Fb 57 Hz
• Bandwith 35 - 100 Hz.
