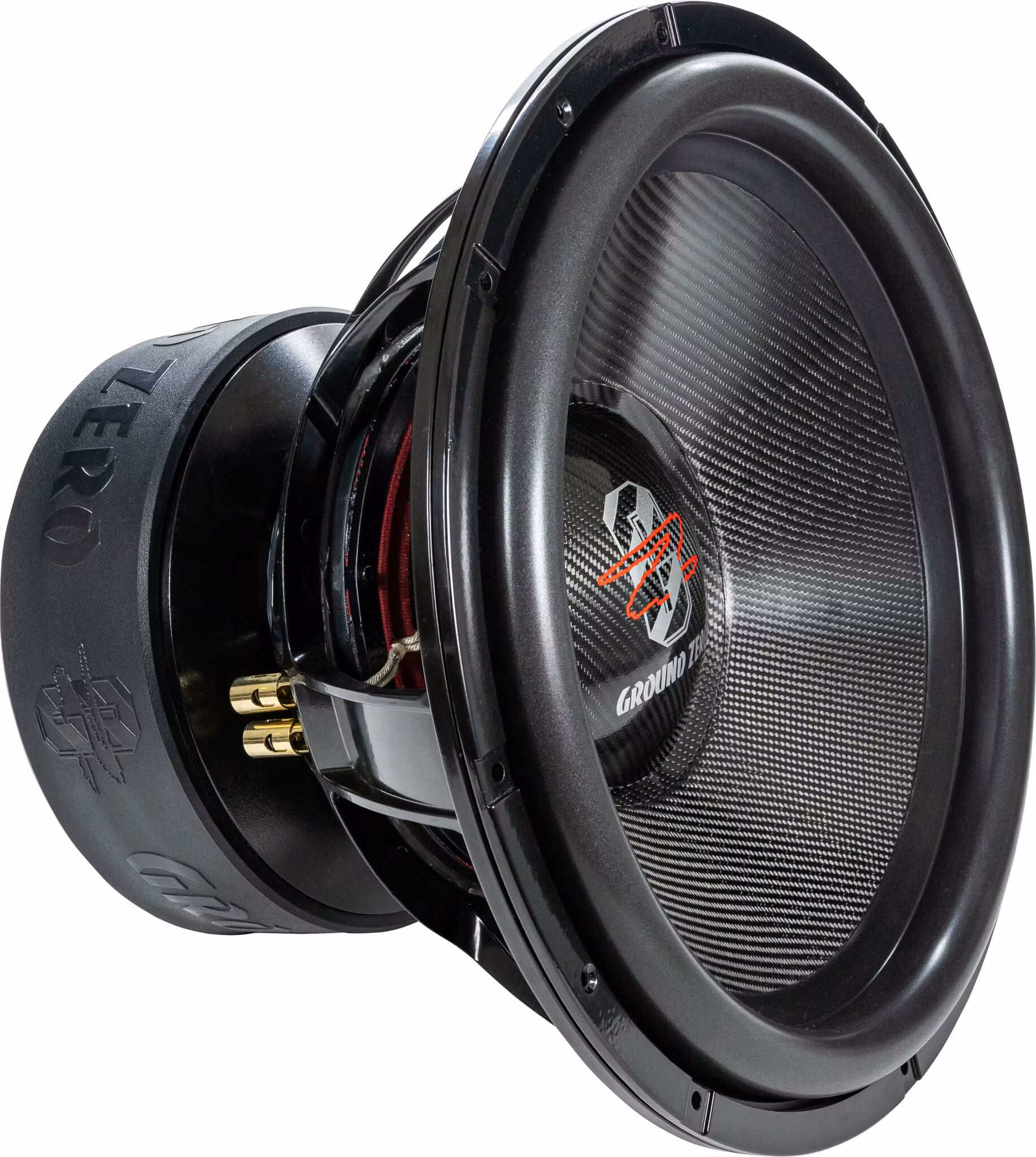

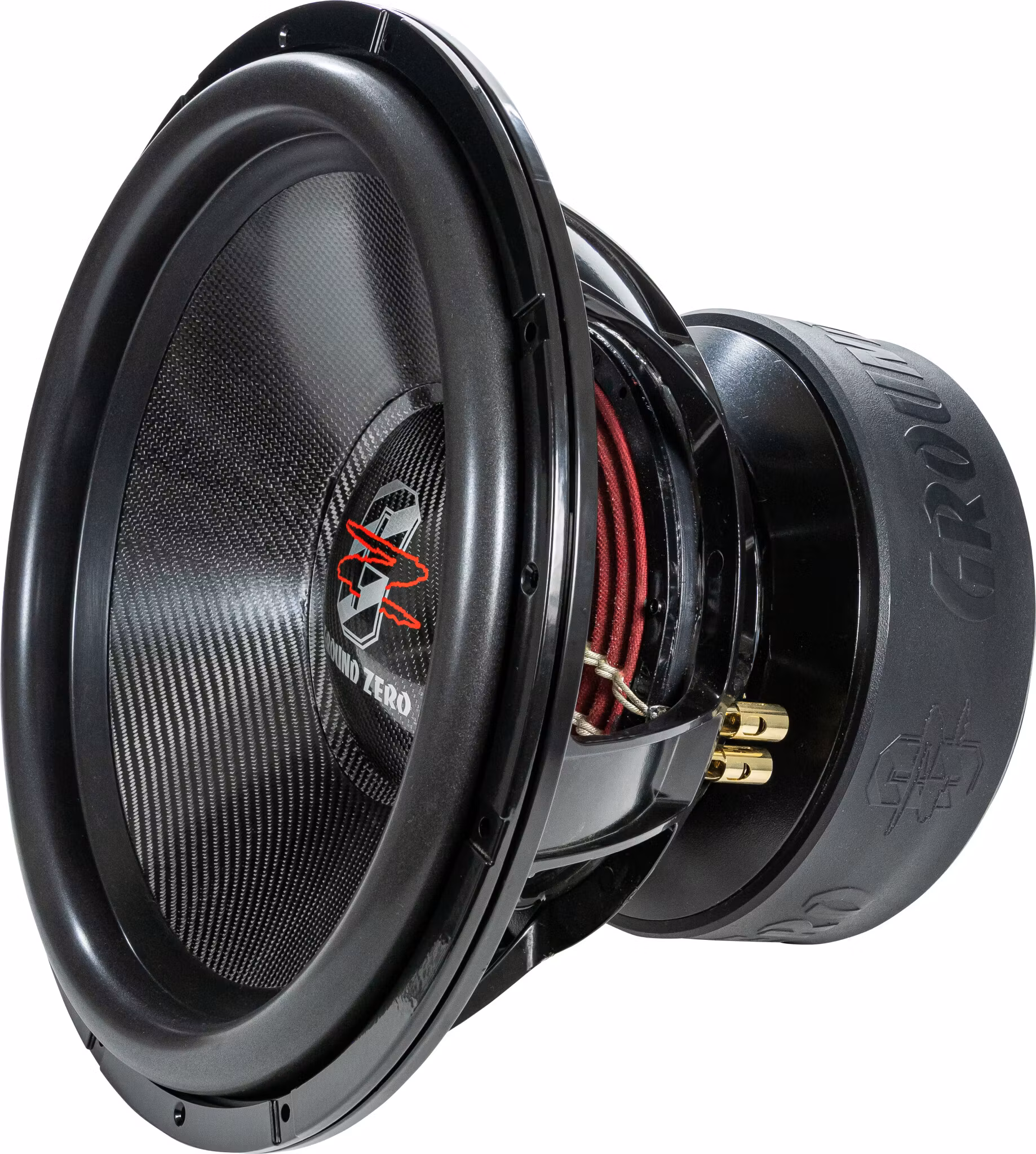

Ground Zero GZPW 18C

The GZPW 18C is a new 18″ subwoofer from the Plutonium series that will leave no one cold!

This subwoofer has been completely redesigned:

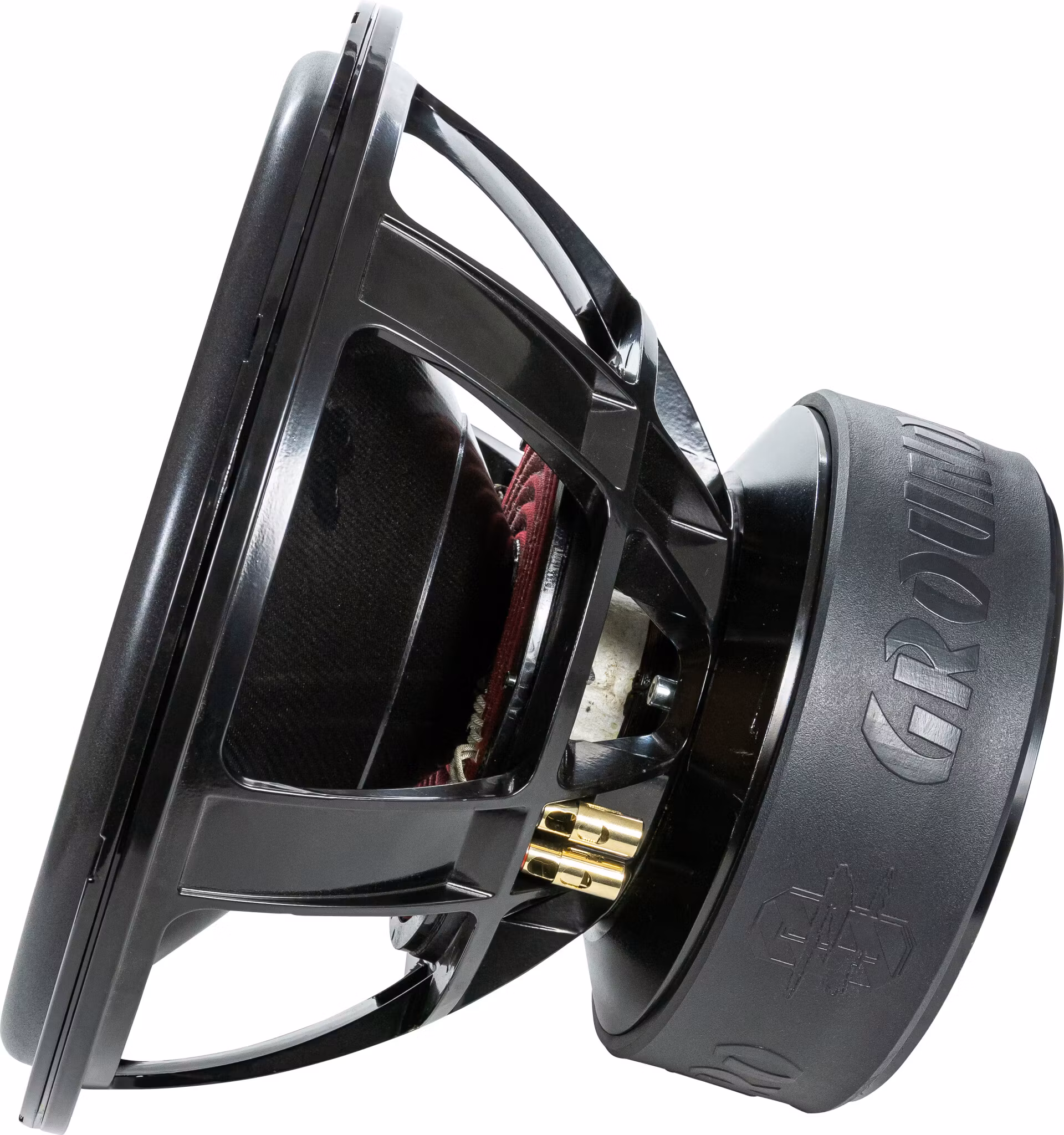

A redesigned, airflow optimized aluminum cast basket. Thanks to the airflow optimized basket, this subwoofer breathes better than previous models = more SPL!

Extremely durable and lightweight carbon-fiber cone = can withstand even higher pressures and movements without problems.

A stiff 7-layer / 10″ spider.

These subwoofers are designed using Klippel optimization. The testing periods last 10 hours, during which the element′s power endurance is exceeded fourfold, and its behavior is studied thru numerous different measurements. This allows weak points to be eliminated already at the planning stage, resulting in an subwoofer without weaknesses!

Teknisk information

• Type High-Power Subwoofer
• Diameter 46 cm / 18″
• Voice coil diameter (mm / inch) 75mm / 3“
• Impedance 2 x 1
• Re (Ohm) 1.51
• FS (Hz) 34
• Qms 9.266
• Qes 0.391
• Qts 0.375
• Le (mH) 2.508
• Vas (Liter / cu.ft.) 29.44 / 1.03
• MMS gr 1344
• Xmax (mm / inch) 80/ 3.15
• SPL (1w/1m) 88 BL
• (Tesla – m) 34.25
• Sd (cm²) 1195
• Power handling (Watts RMS/SPL) 6000
• Empfohlene Verstärkerleistung / Recommended amplifier power 4000-6000 WRMS
