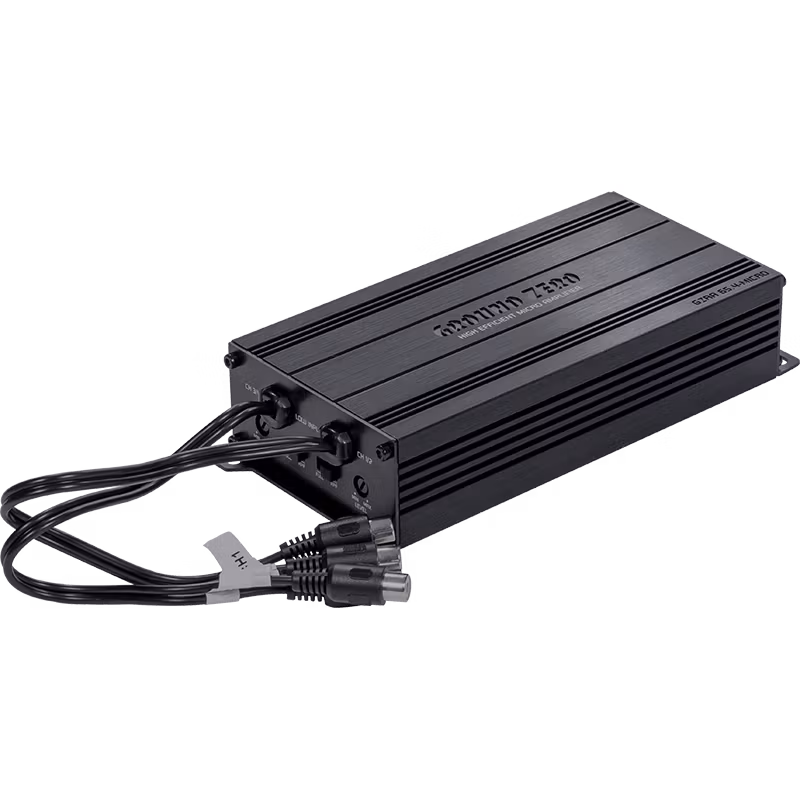

Ground Zero GZRA 65.4-MICRO

GZRA 65.4-MICRO is ultra-compact 4-channel ISO-amplifier for plug and play OEM installations

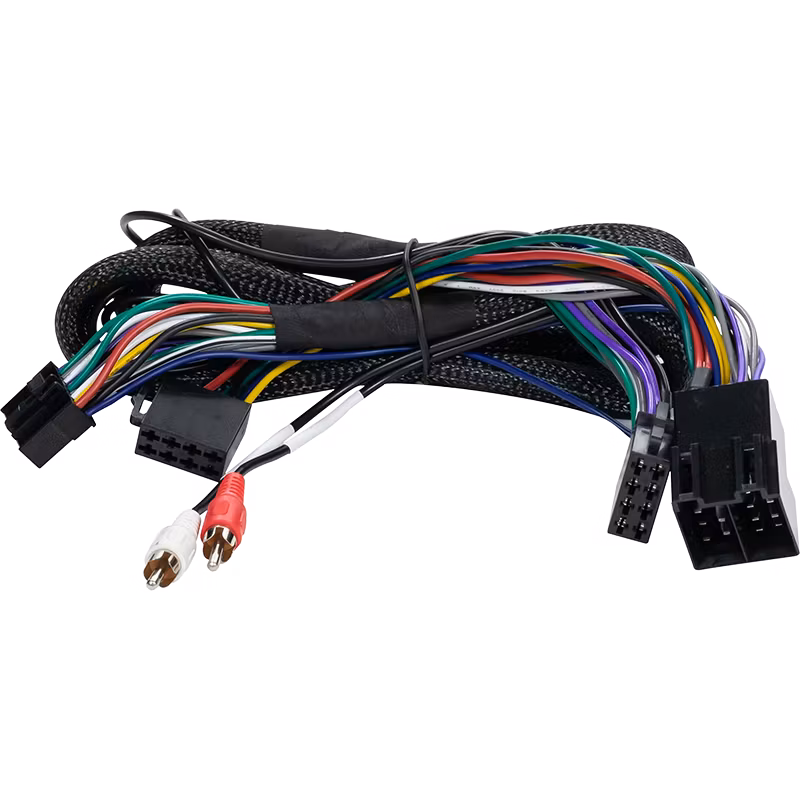

• Micro 4-channel ISO-amplifier • SMD components • Class D technology • Fixed high-pass filter for easy setup • Easy integration of additional mono amplifiers • Stable power supply • Compact heatsink with engraved Ground Zero lettering • High-level input with auto-on function • Incl. ISO harness

Teknisk information

• Type Class D amplifier
• Channels 4
• Output Power (@ 4Ω) 4x 65 Watts RMS
• Output Power (@ 2Ω) 4x 75 Watts RMS
• Output Power (@ 4Ω) bridged 2x 150 Watts RMS
• max. Output Power 340 Watts
• Frequency Response 10 Hz – 22 kHz
• HPF / LPF / BPF ● / ● / ●
• Bass Boost / Phase switch ○ / ○
• High level input / Auto-on ● / ●
• Remote Control ○
• BIAS Setting ○
• Linkmode ○
• Dimensions (w x l x h)
• heat sink 82 x 185 x 40 mm / 3.23″ x 7.28″ x 1.57″
