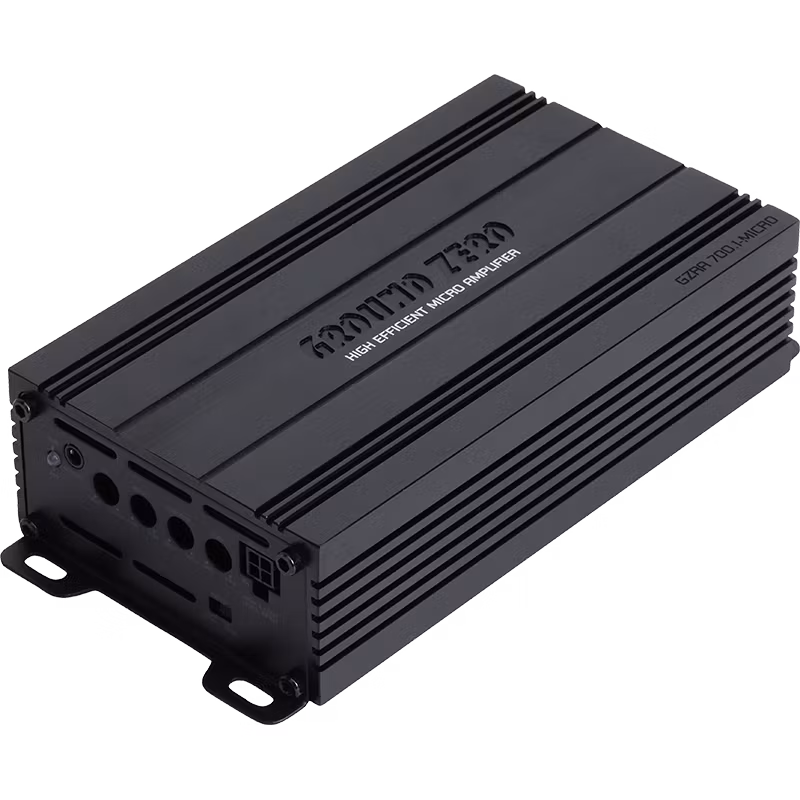

Ground Zero GZRA 700.1-MICRO

GZRA 700.1-MICRO is a high-efficient class D mono amplifier ultra-compact subwoofer amplifier with class D circuit, integrated active crossover and auto-on function. This amplifier is perfect match for GZRA 65.4-Micro amplifier.

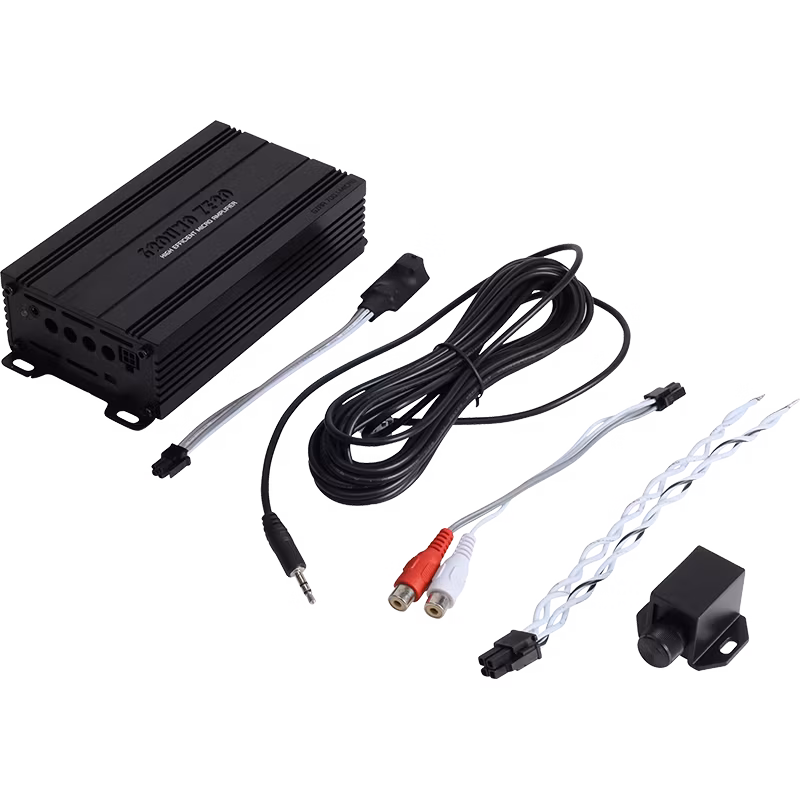

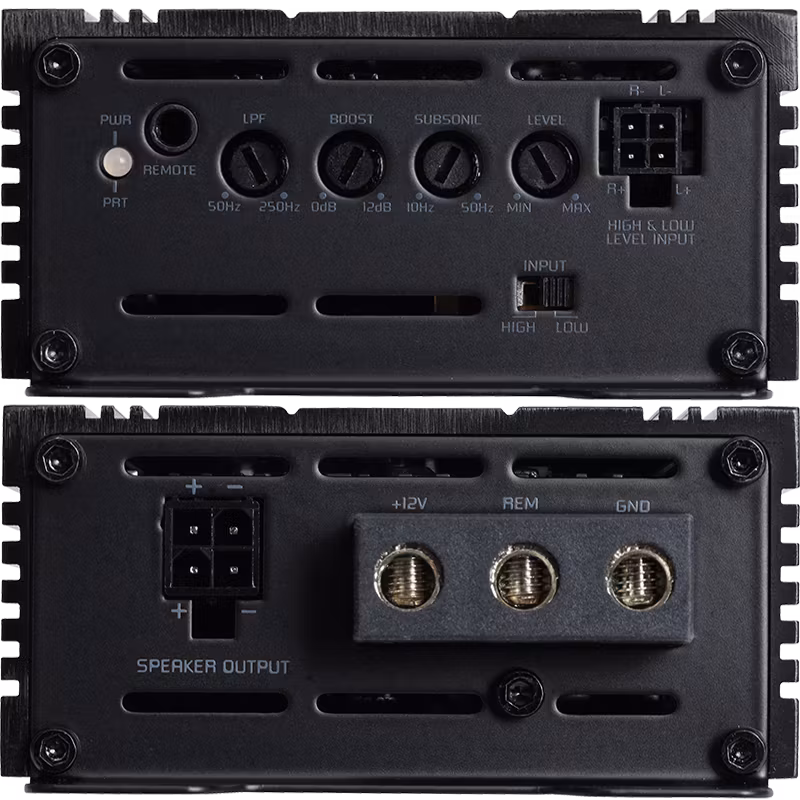

• Micro subwoofer amplifier • SMD components • Class D technology • Variable active crossover and bass boost • Stable power supply • Compact heatsink with engraved Ground Zero lettering • Bass remote control included • High-level input with auto-on function

Teknisk information

• Type Class D mono amplifier
• Channels 1
• Output Power (@ 4Ω) 250 Watts RMS
• Output Power (@ 2Ω) 450 Watts RMS
• Output power (@ 1Ω) 700 Watts RMS
• max. Output Power (CEA-2006A / 10%THD+N) 900 Watts
• Input sensitivity RCA / high-level 0.4 – 8.3 V / 1.3 – 25 V
• Frequency Response 10 – 250 Hz
• Subsonic / LPF / BPF ● / ● / ●
• Bass Boost / Phase Shift ● / ○
• High level input / Auto-on ● / ●
• Remote Control included
• BIAS Setting ○
• Linkmode ○
• Dimensions (w x l x h)
• heat sink 82 x 167 x 40 mm / 3.23″ x 6.57″ x 1.57″
• .
