GZ Pink Powerpacked 2x12 inc

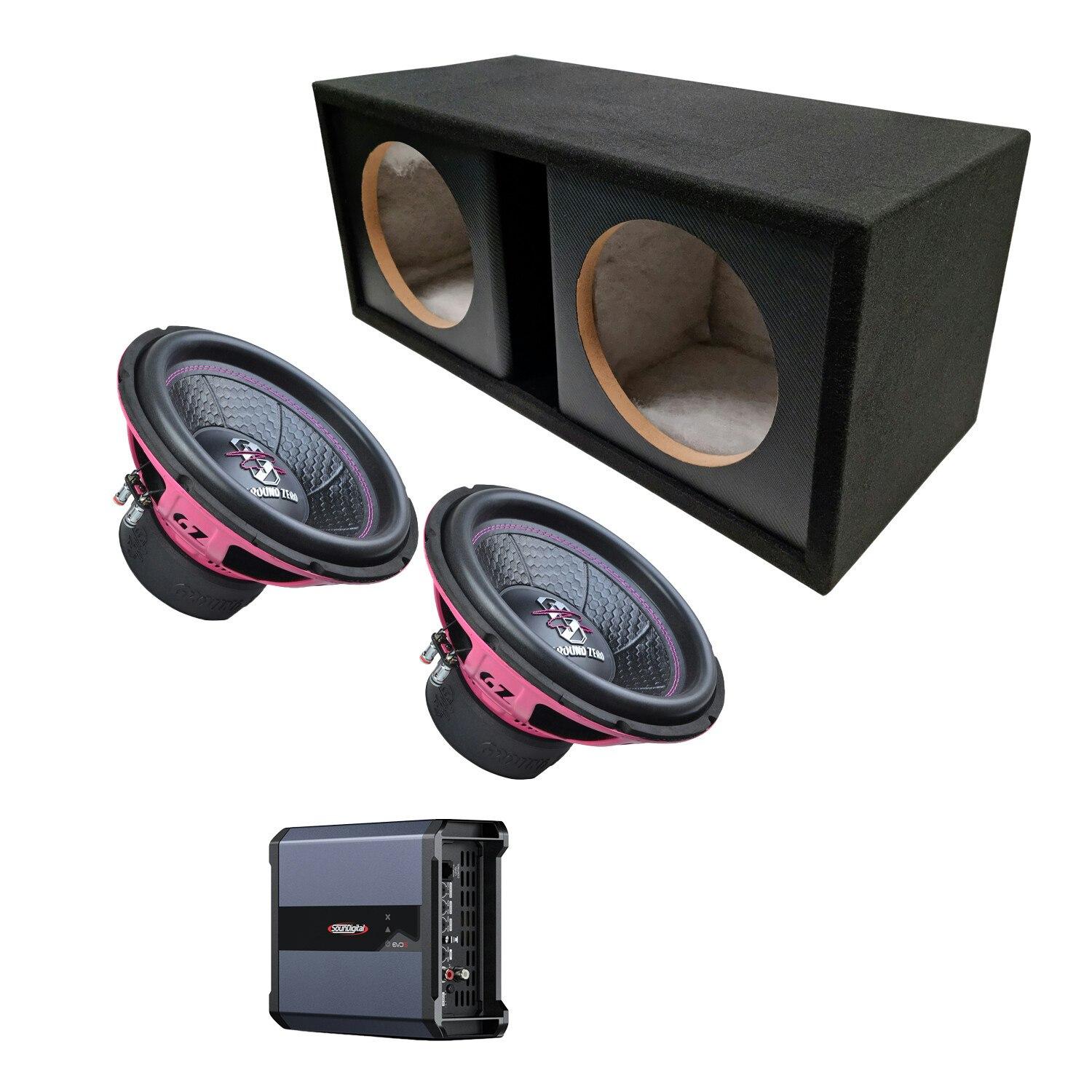

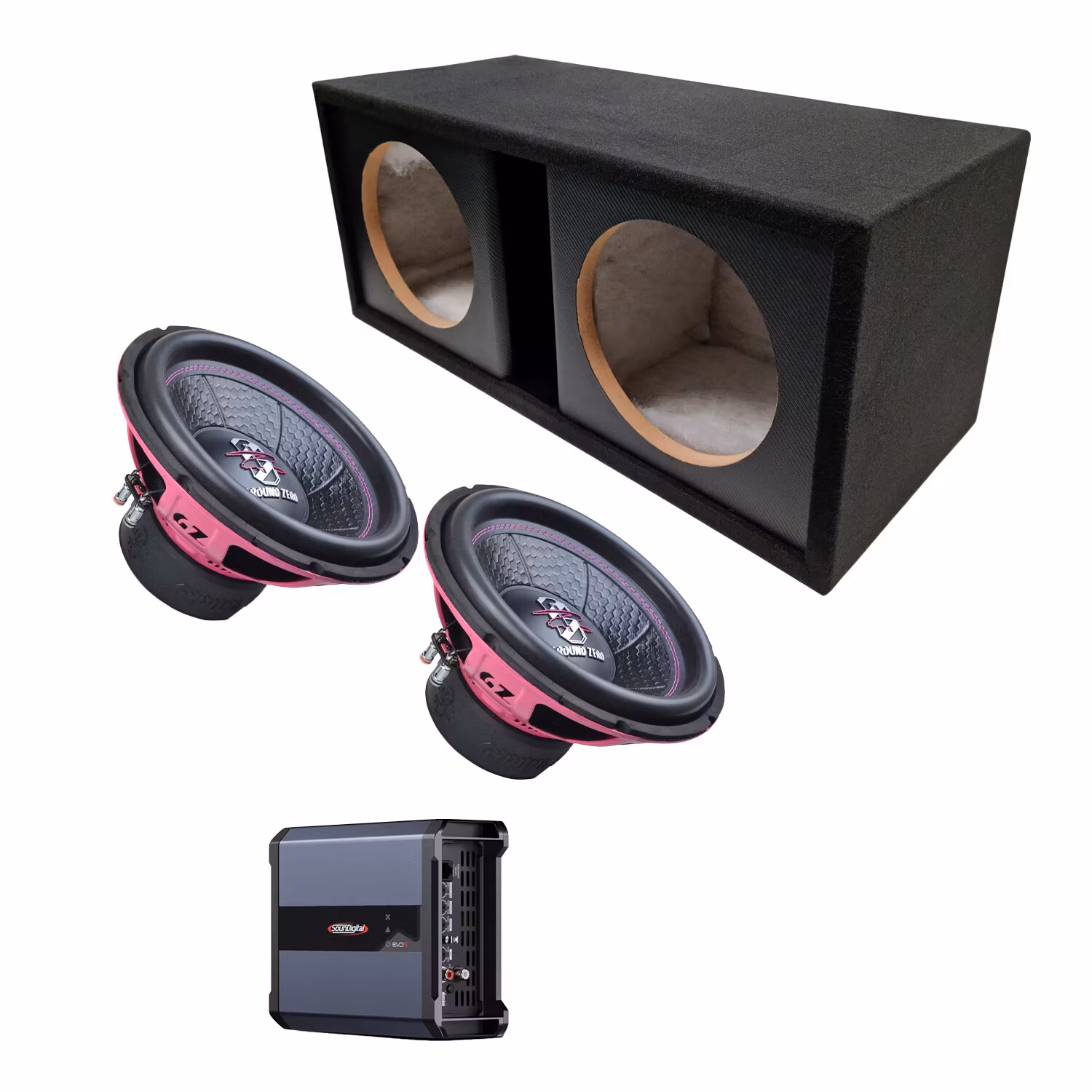

GZ Pink Powerpacked 2x12 inc includes 2pcs of GZIW 12XSPL-D2 PINK -subwoofers, 4-AI212SLOT -enclosure and SD1200.1-2 EVO5 -amplifier.

GZIW 12XSPL-D2 PINK:

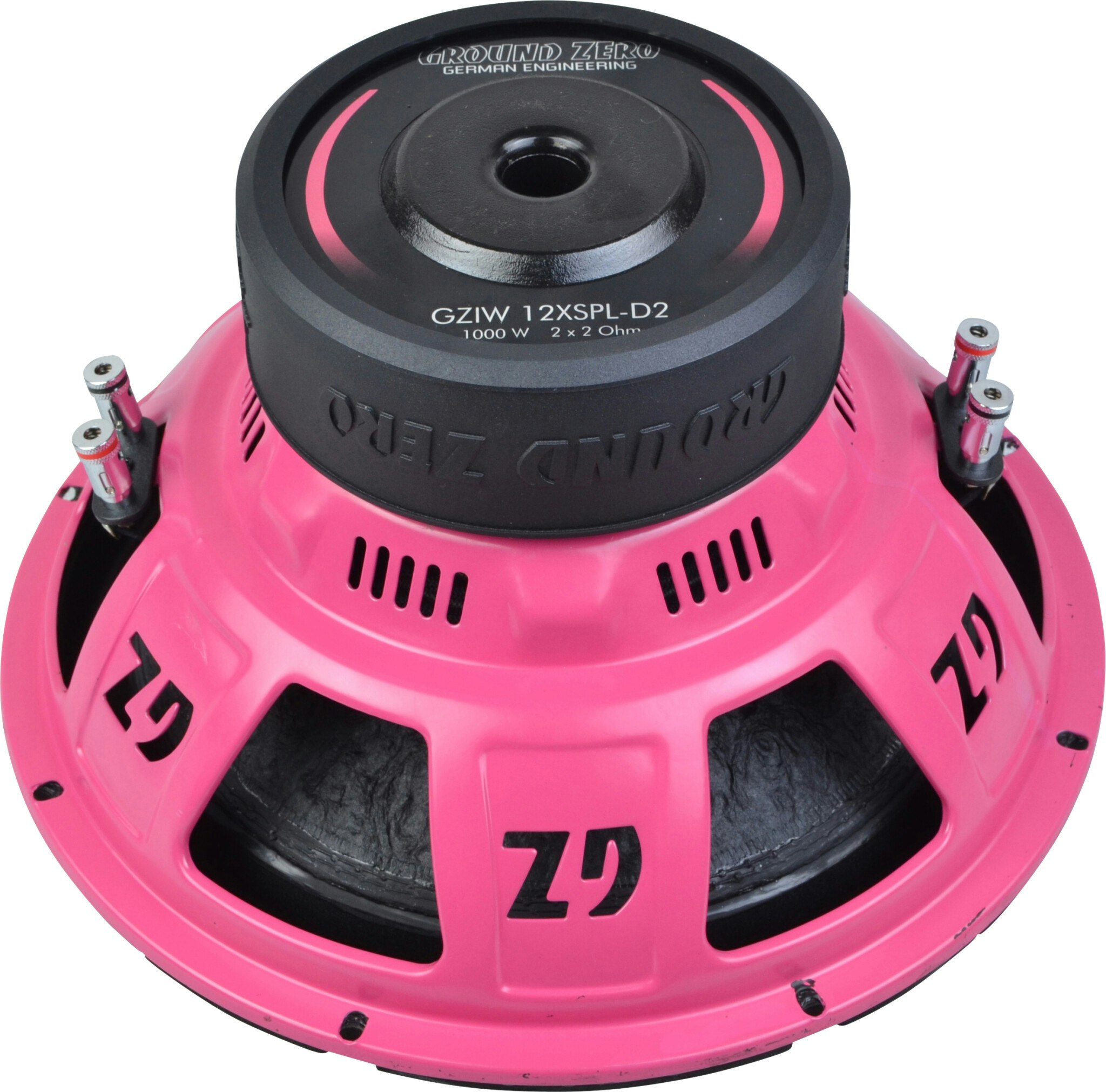

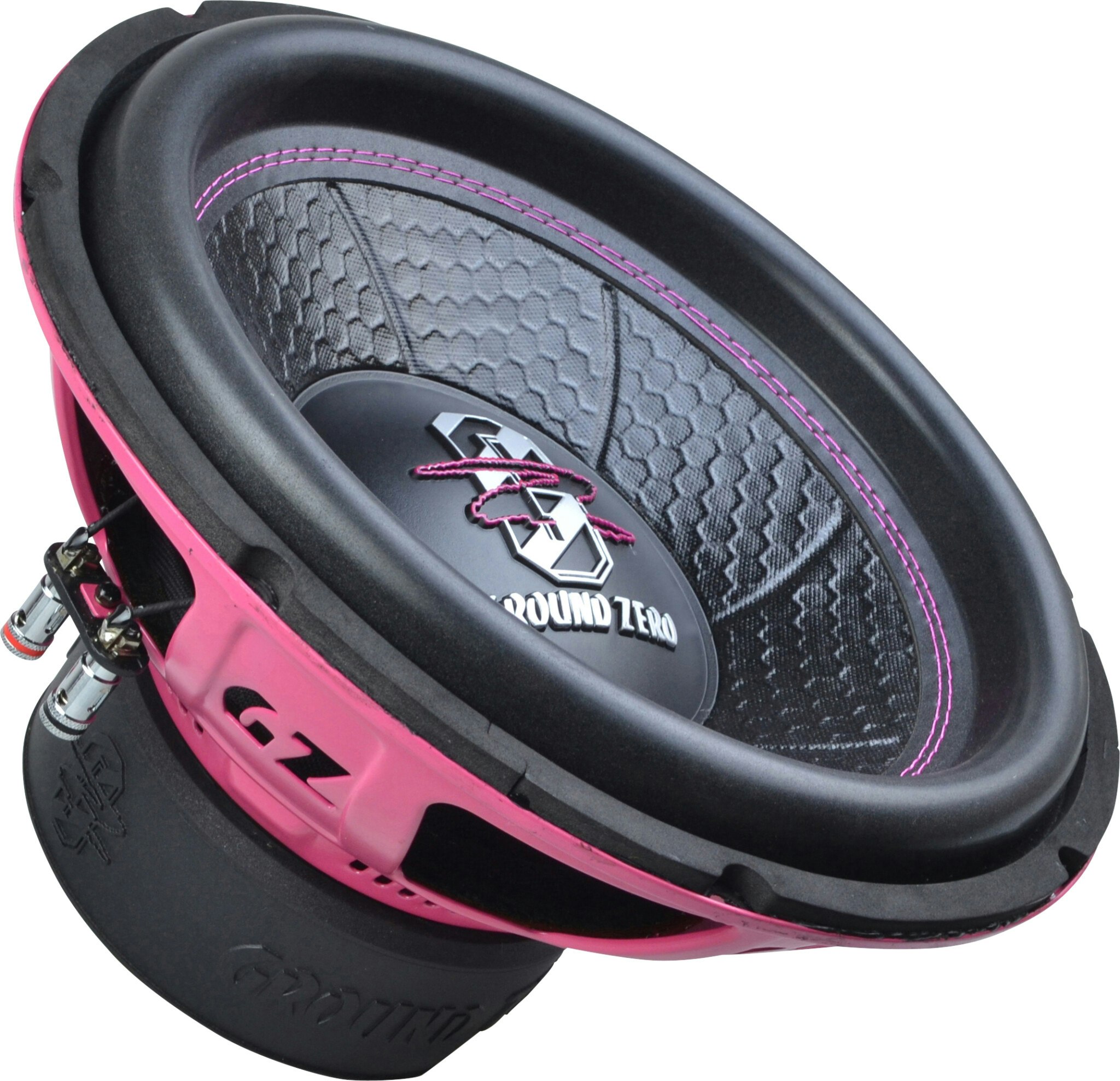

Don´t get fooled by the affordable price! These budget class SPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.

4-AI212SLOT:

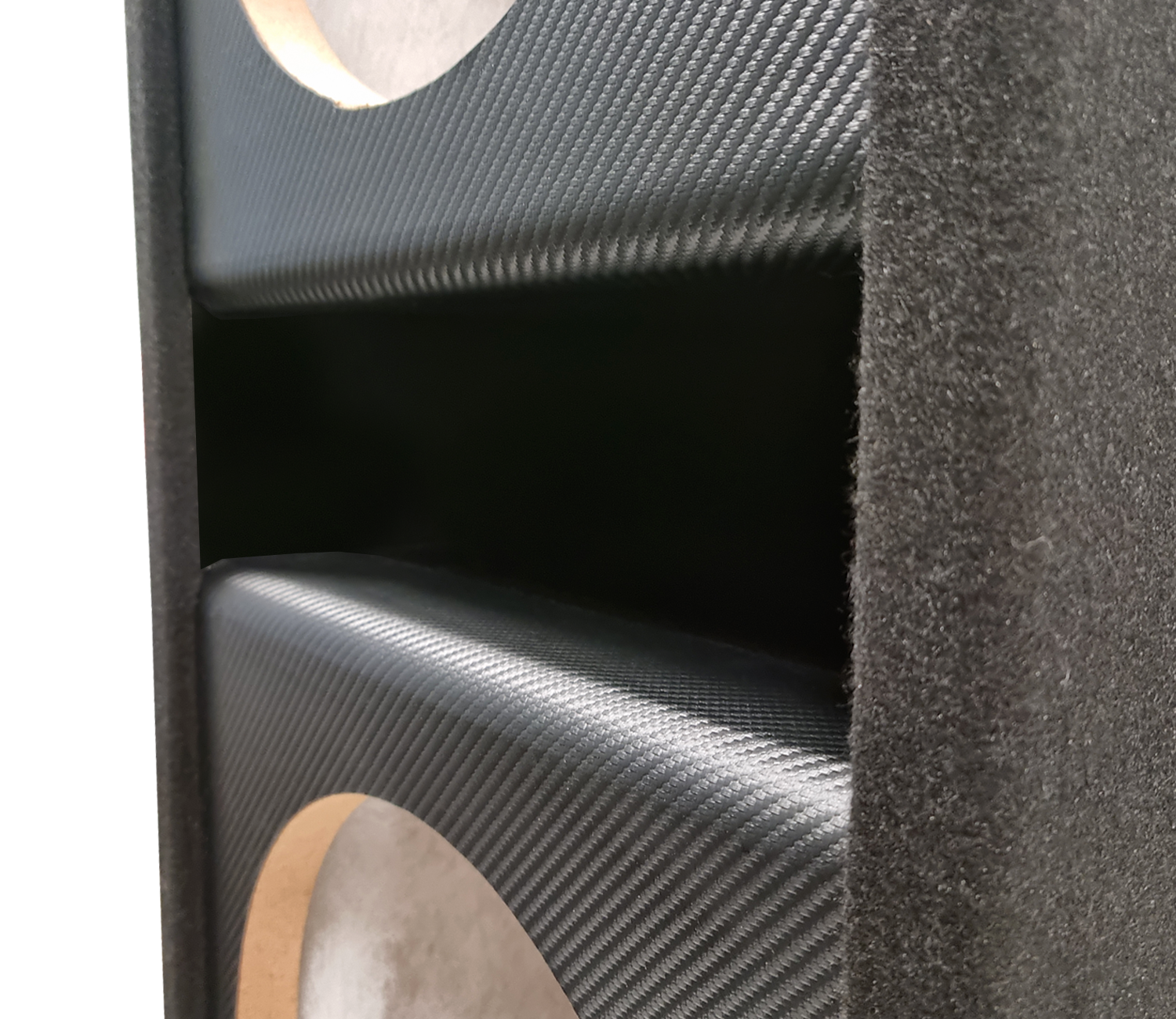

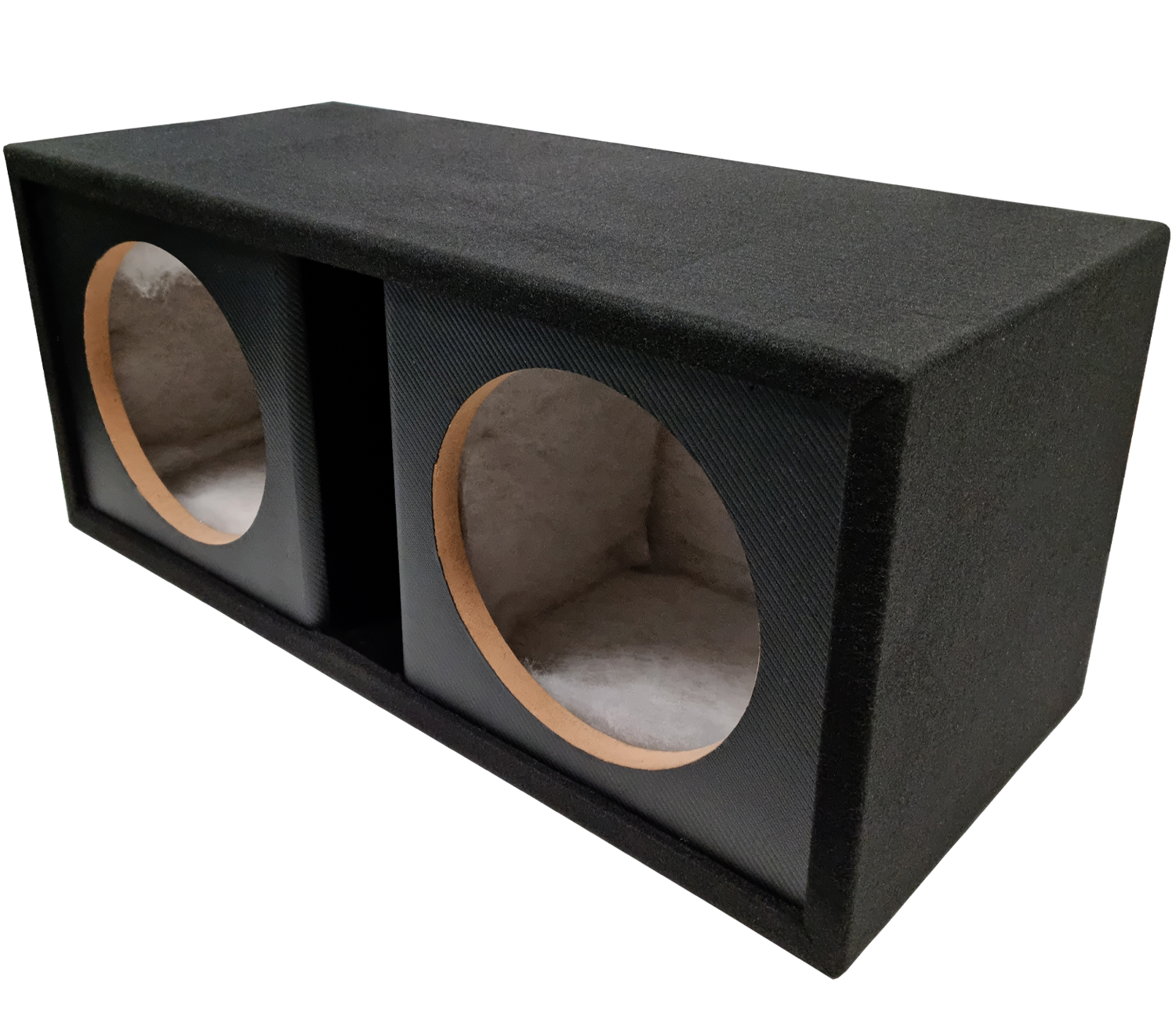

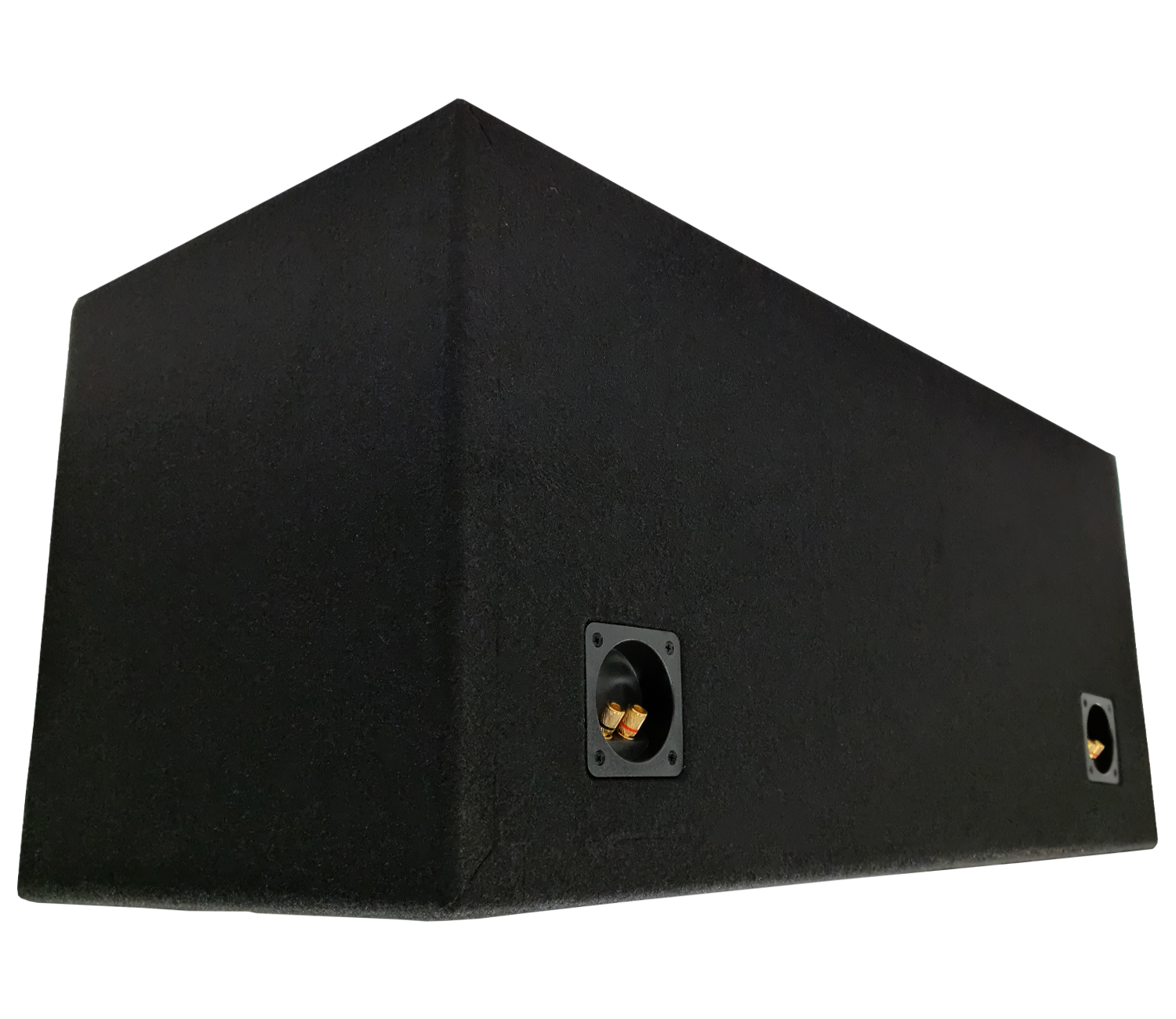

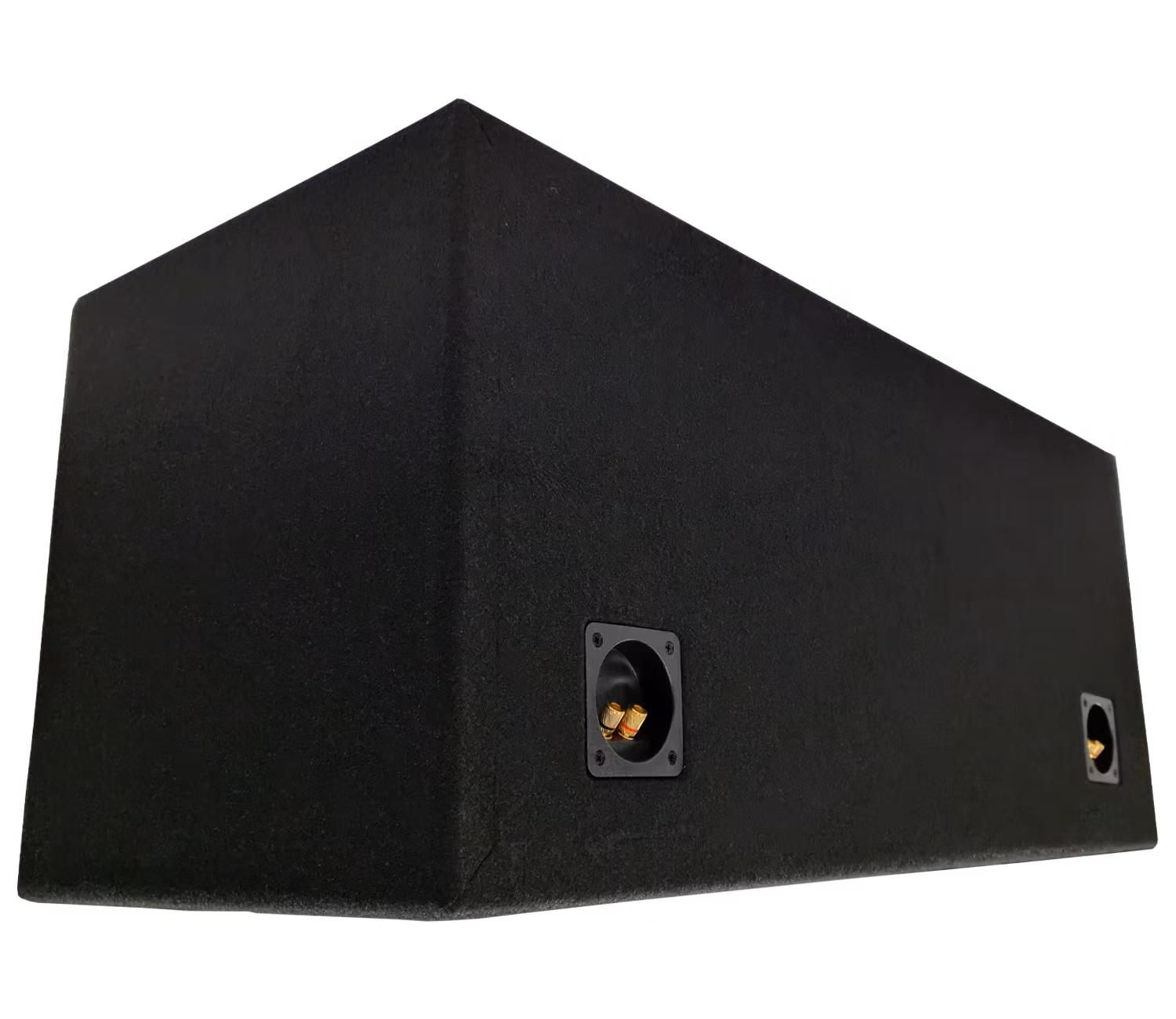

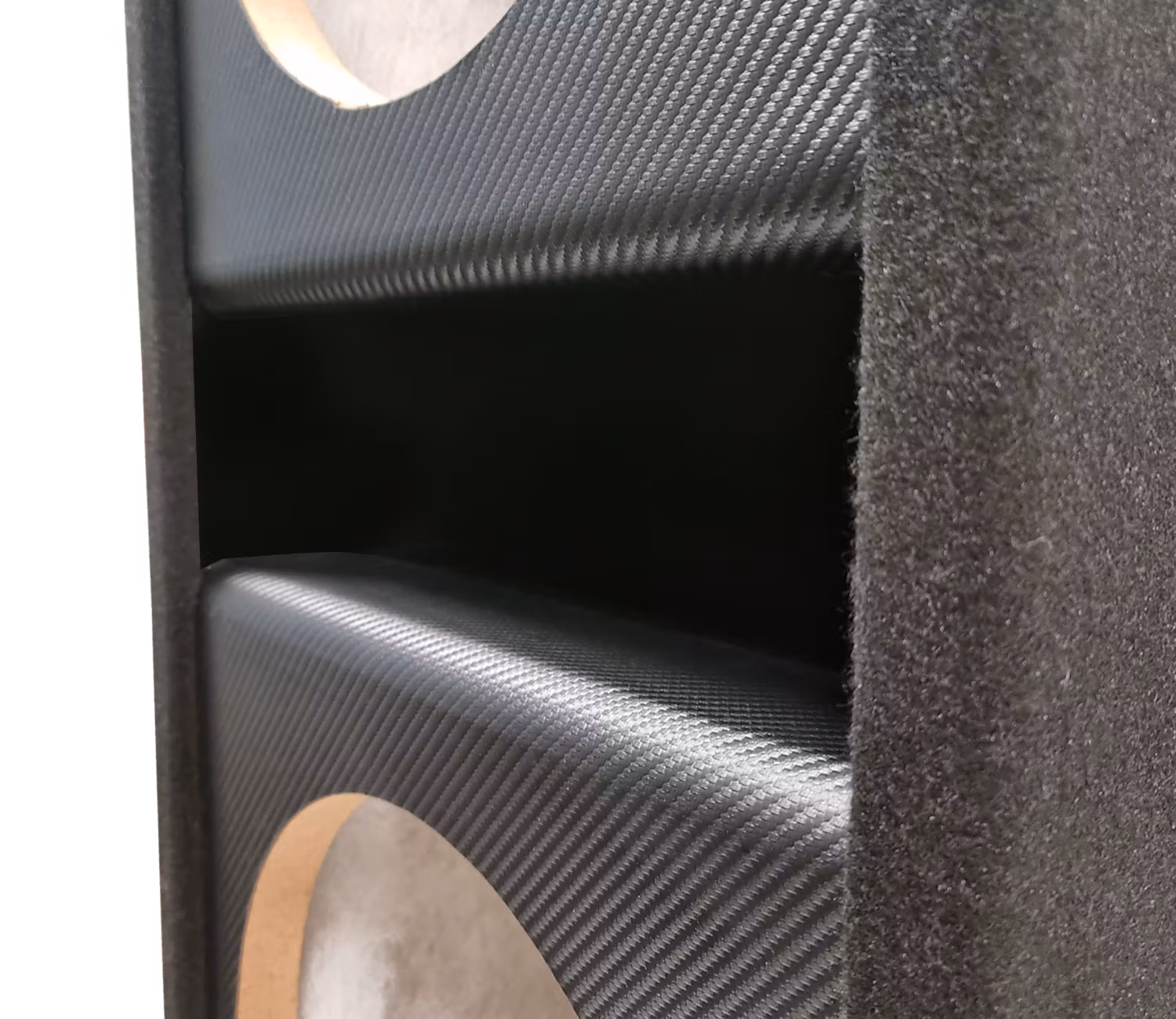

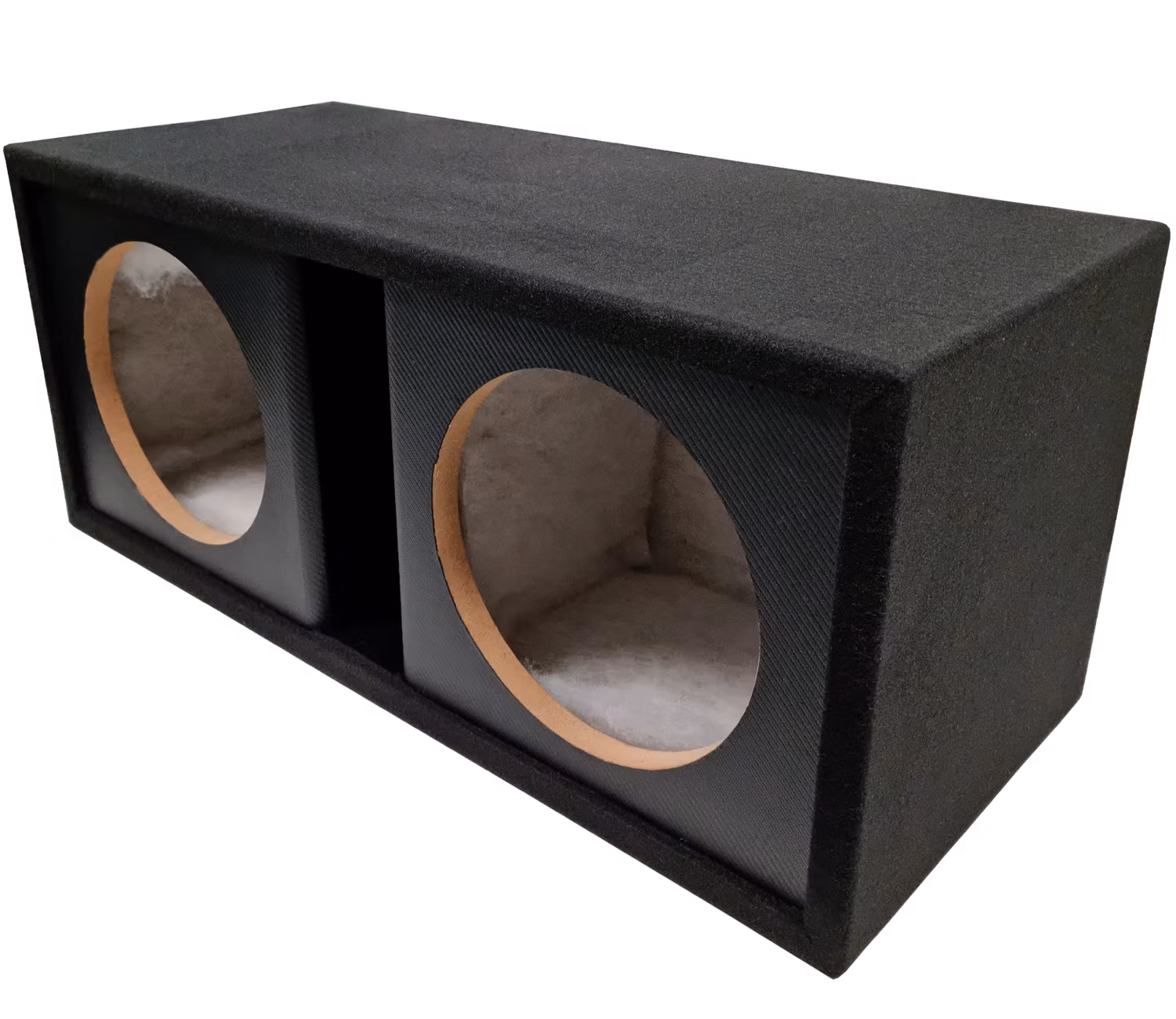

4-AI212SLOT is an BIG subwoofer enclosure, made of MDF board. The large port with rounding. Enclosure is upholstered at black carpet and the front panel has carbon fiber look tape. Enclosure has cable terminals also. Dimensions: width 930mm x height 380mm x depth 400mm

SD1200.1-2 EVO5:

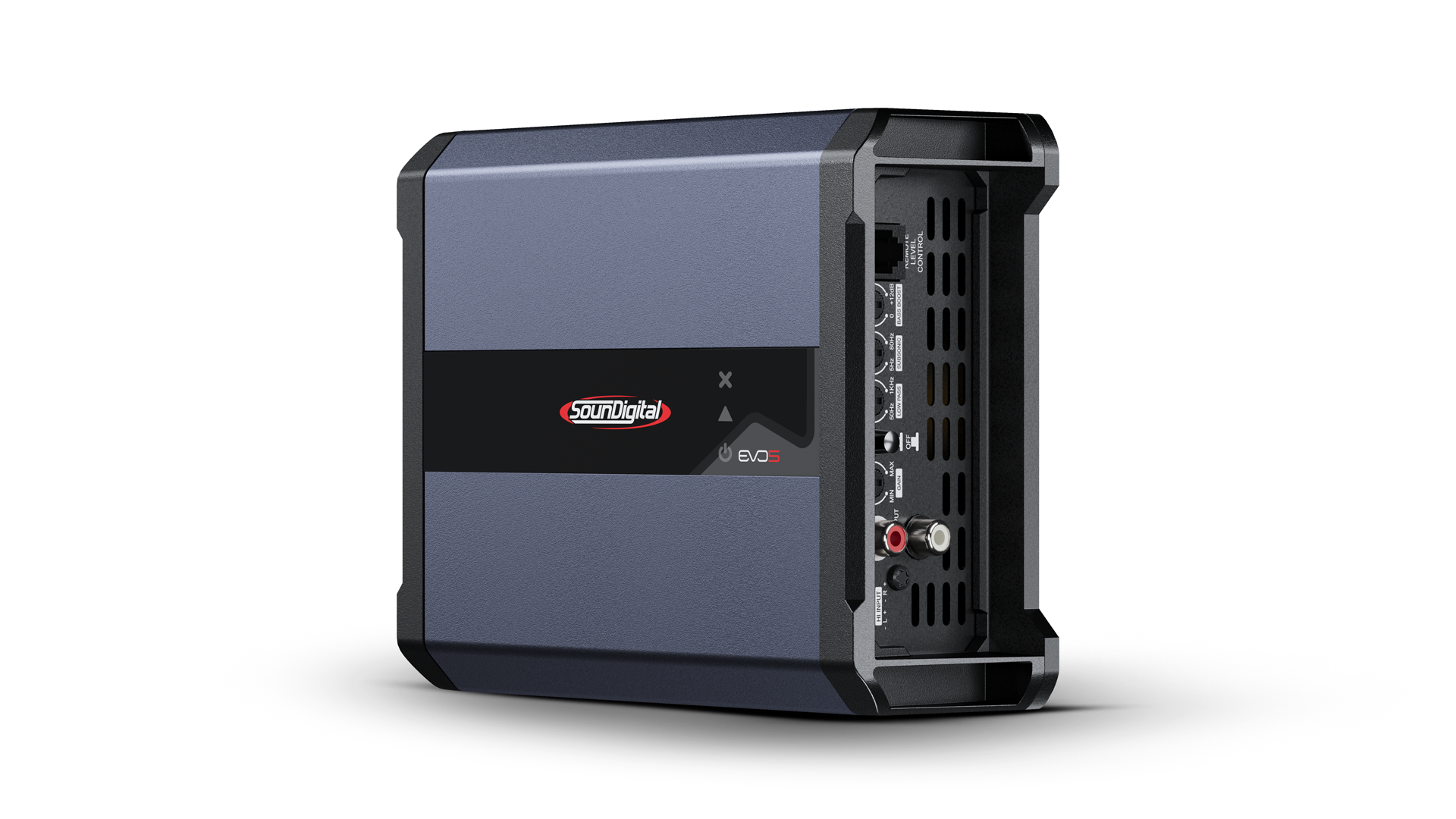

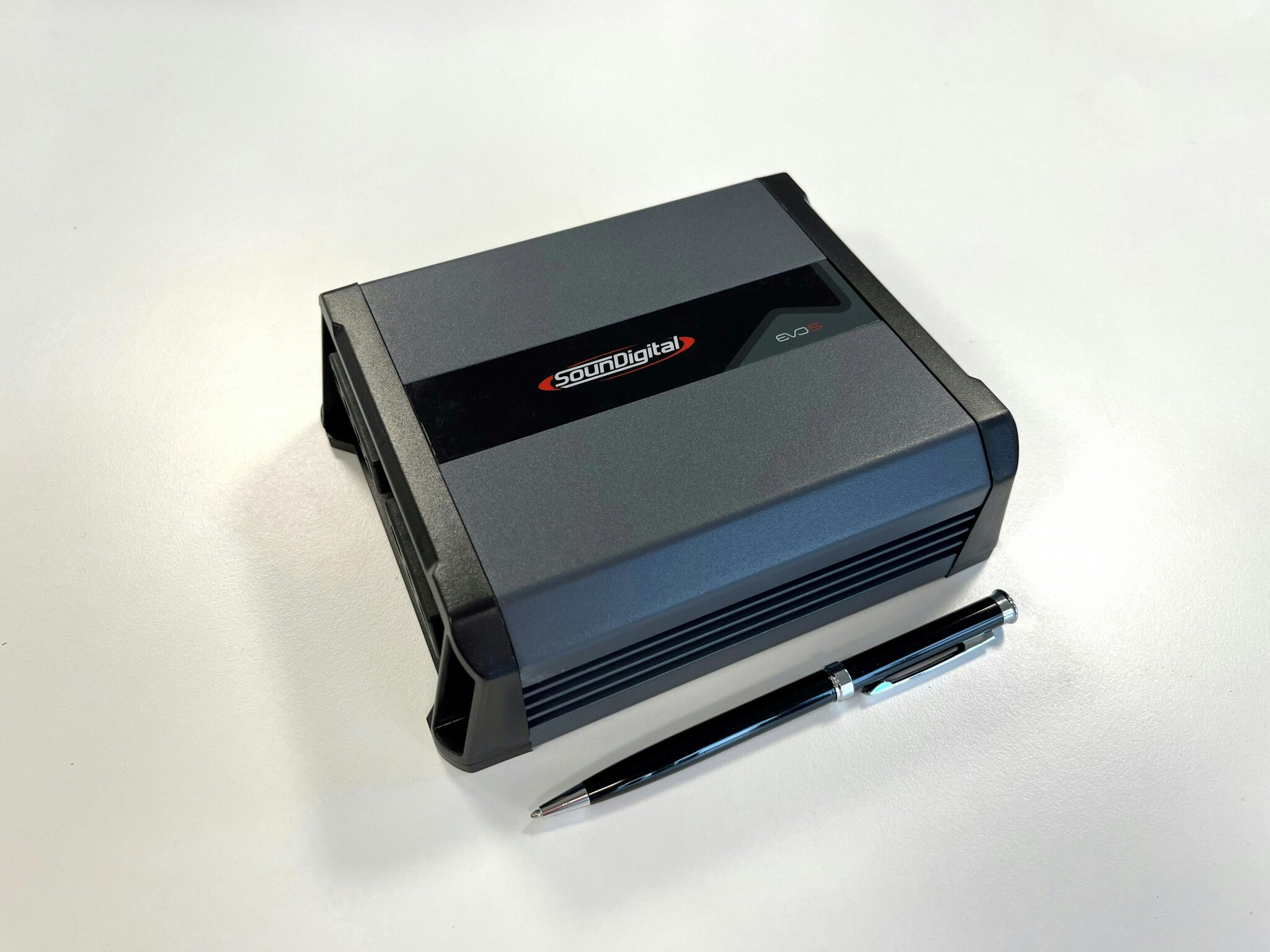

The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Teknisk information

• GZIW 12XSPL-D2 PINK:
• Pink 12″ XSPL Subwoofer
• Progressive 2-layer spider
• Voice coil 63 mm / 2.5″
• Impedance 2 x 2 Ohm
• Re 4.33 Ohm
• Fs 32,5 Hz
• Qms 10.76
• Qes 0.79
• Qts 0.73
• Vas 40.4 L
• Le 2.48 mH
• Mms 231 gr
• Bl 15.9
• Xmax 34 mm / 1.34″
• Effiency ( SPL 1w / 1m )
• Power handling ( SPL ) 1000 Watts
• Rec. amplifier power 500 - 1000 Watts
• Outer diameter 310 mm / 12.2″
• Mounting cut out 285 mm / 11.22″
• Mounting depth 162 mm / 6.38″
• 4-AI212SLOT:
• Ported enclosure for 2x12″ subwoofer
• Net volume: 2x40 liters.
• Port area: 350 cm2
• Port height: 350mm
• Port width: 100mm
• Tuning frequency: 38 Hz
• Diameter of speaker hole: 285mm
• Measurements ( W x H x D ): 930 x 380 x 400.
• SD1200.1-2 EVO5:
• Power @ 1Ω: N/A
• Power @ 2Ω: 1 X 1200 WRMS
• Power @ 4Ω: 1 X 792 WRMS
• Frequency Response (-3dB):
• 5Hz ~ 25kHz
• Subsonic Filter:
• 5Hz ~ 80Hz
• Low Pass Filter:
• 50Hz ~ 1kHz
• Bass Boost:
• 0dB ~ 12dB @ 50Hz
• Operating Voltage:
• 9V ~ 16V
