GZ SQL Bundle 8 inc coax

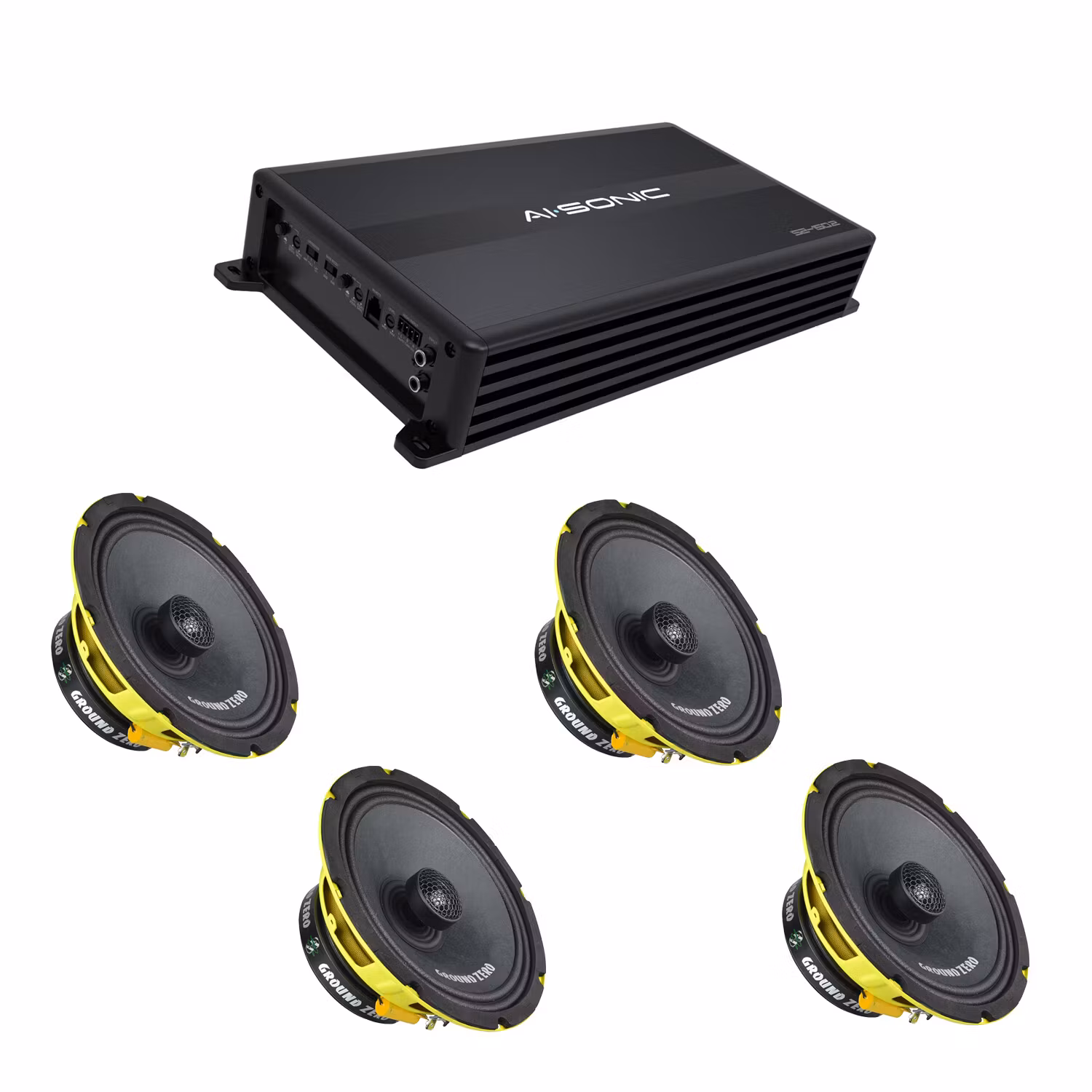

GZ SQL Bundle 8 inc coax includes 4pcs of LOUD GZCF 8.0SPL speakers and high quality Ai-Sonic S2-A150.2 amplifier

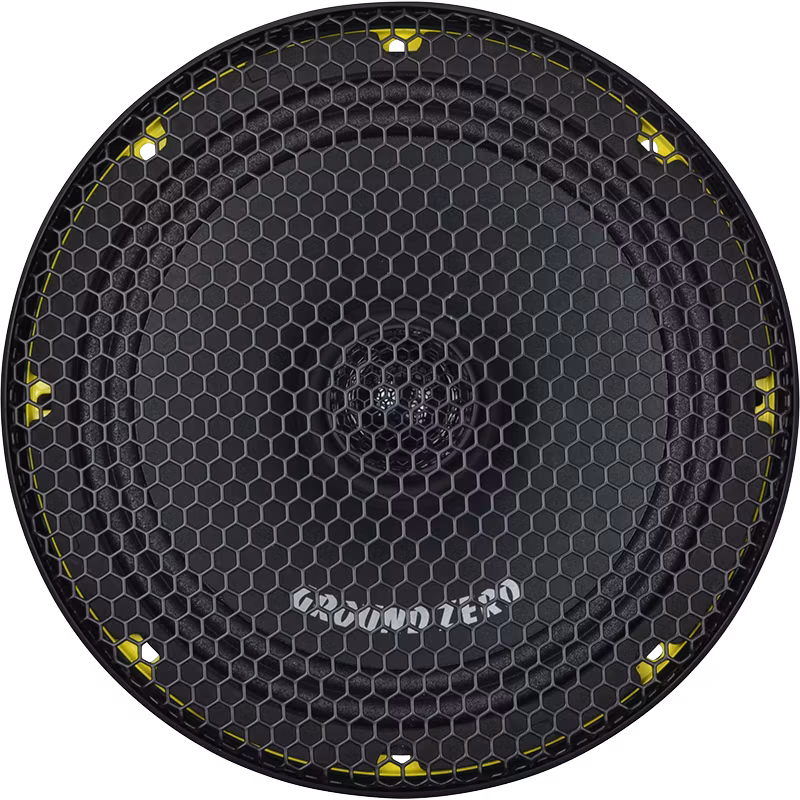

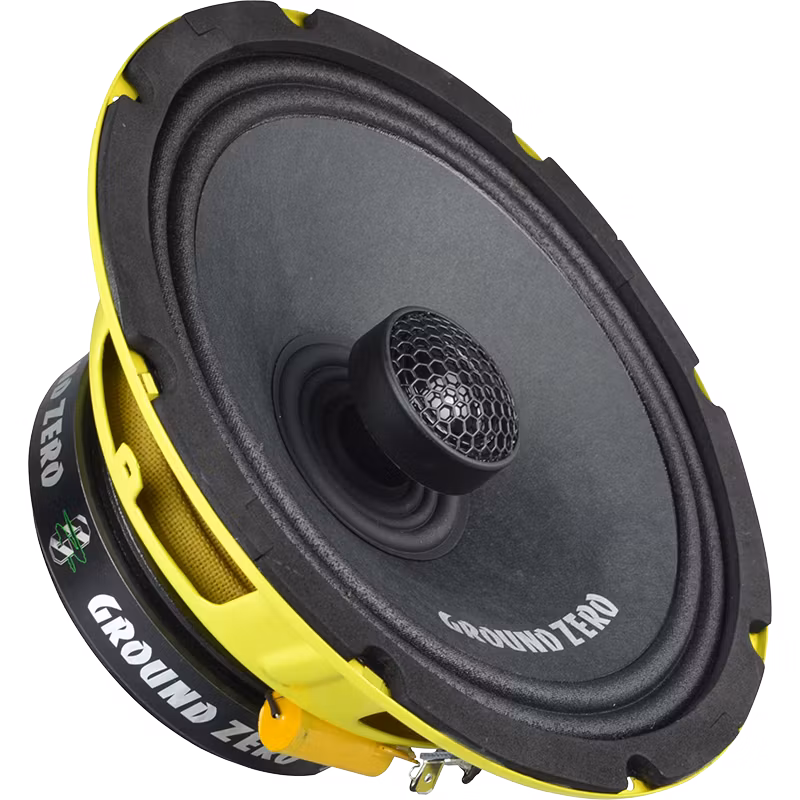

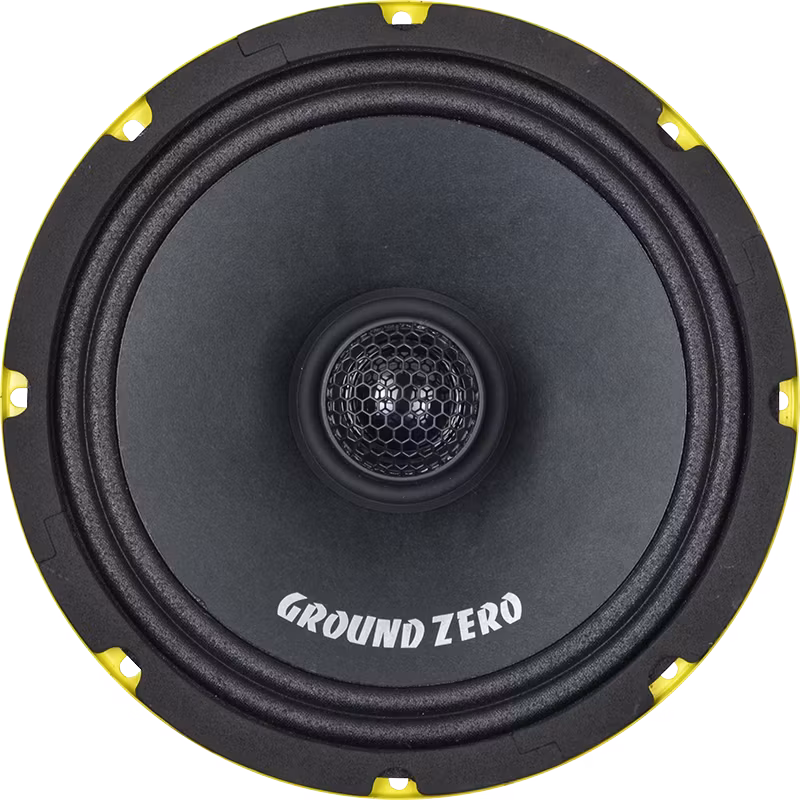

GZCF 8.0SPL:

LOUD 200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter.

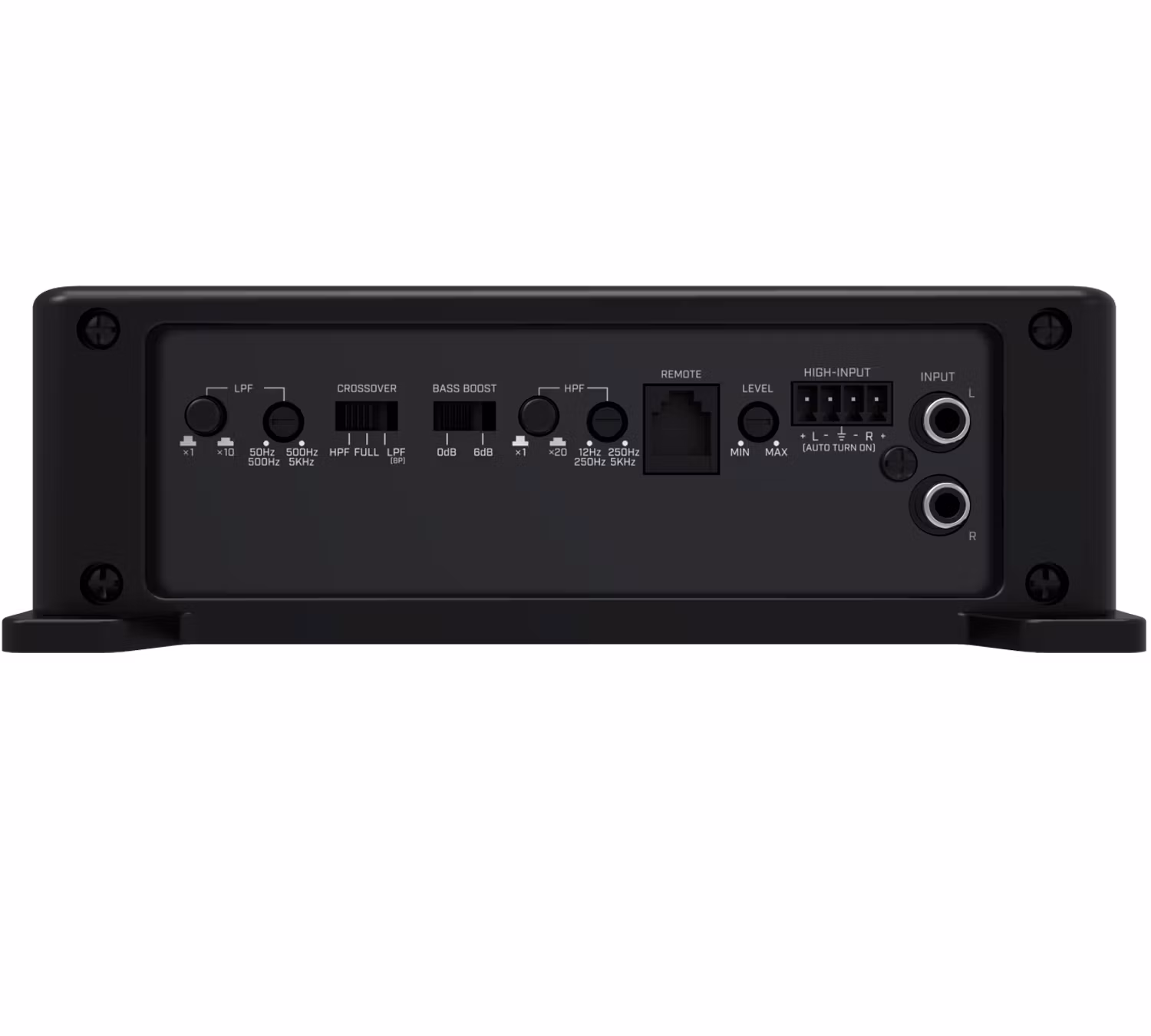

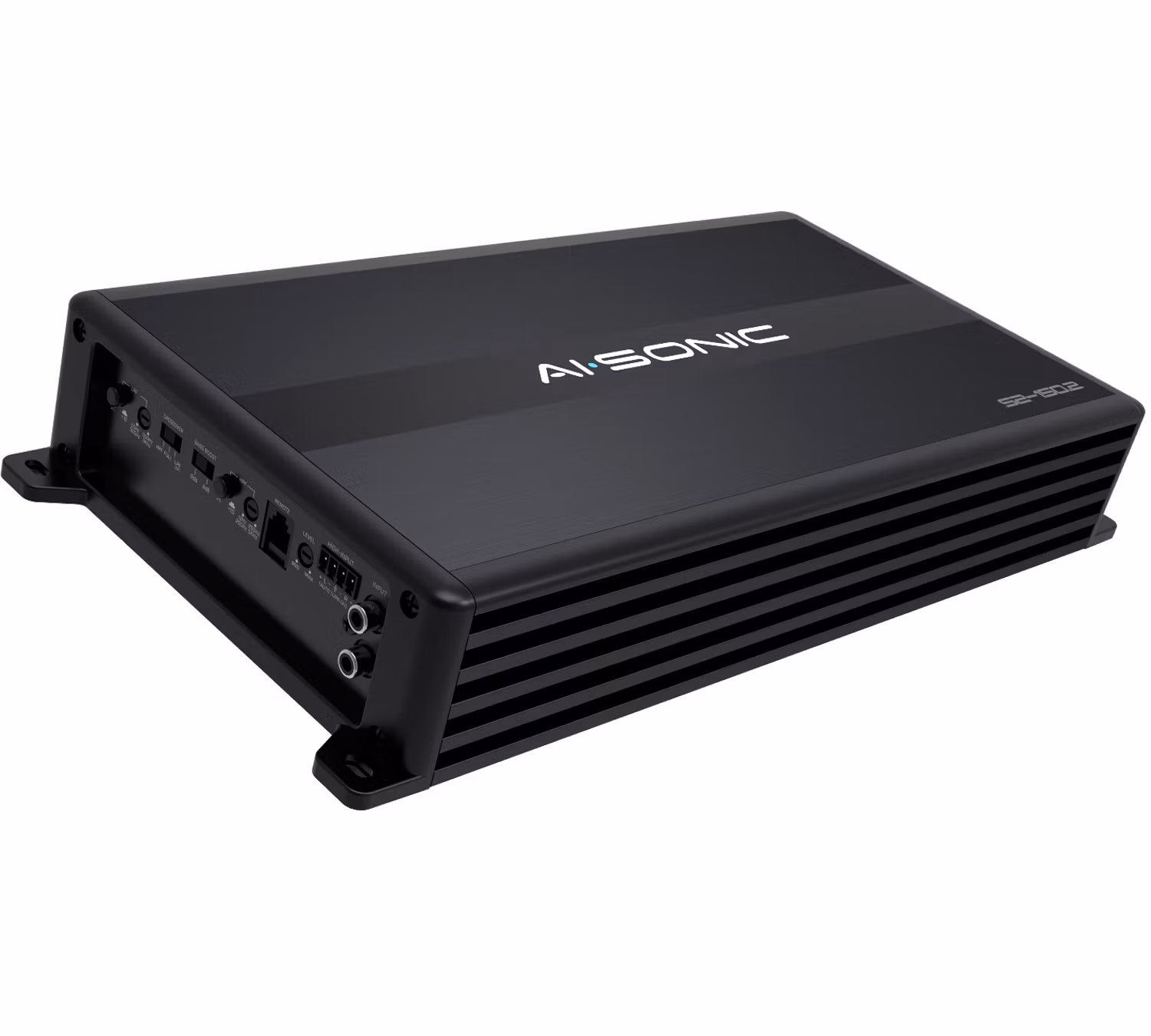

S2-A150.2:

AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality. Amplifier gives more power as there are mentioned at the specs.

Finished dark cover, which profile is brushed black aluminium. When amplifier is on. There is indicator light in AI-Sonic logo!

Includes a remote control, which has three different indicator-leds. (protection, power and clipping)

Designed in Finland.

(Bass level control sold separately and it works only when LPF is turned on.)

Teknisk information

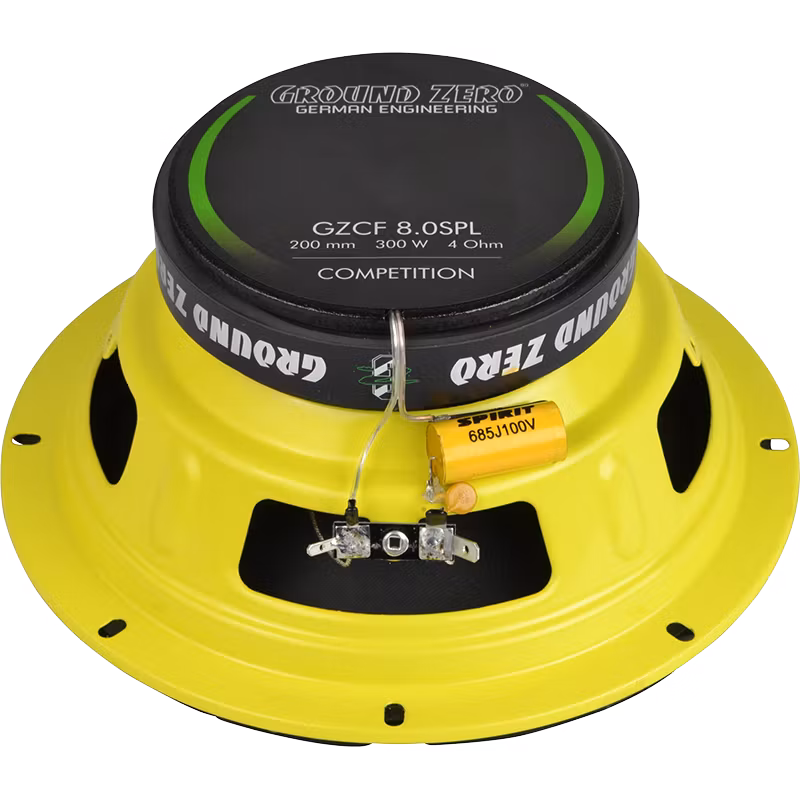

• GZCF 8.0SPL:
• 300 Watts max
• 200 mm / 8″ 2-way coaxial speaker system with paper cone and 25 mm / 1″ Mylar tweeter
• 2-way coaxial speaker system
• Pressed paper cone
• High-excursion foamed W-surround
• Resonance free steel basket
• 25 mm / 1″ Mylar tweeter
• Ferrite motor
• 6 dB/oct high pass filter
• Incl. Hexagon style protection grill.

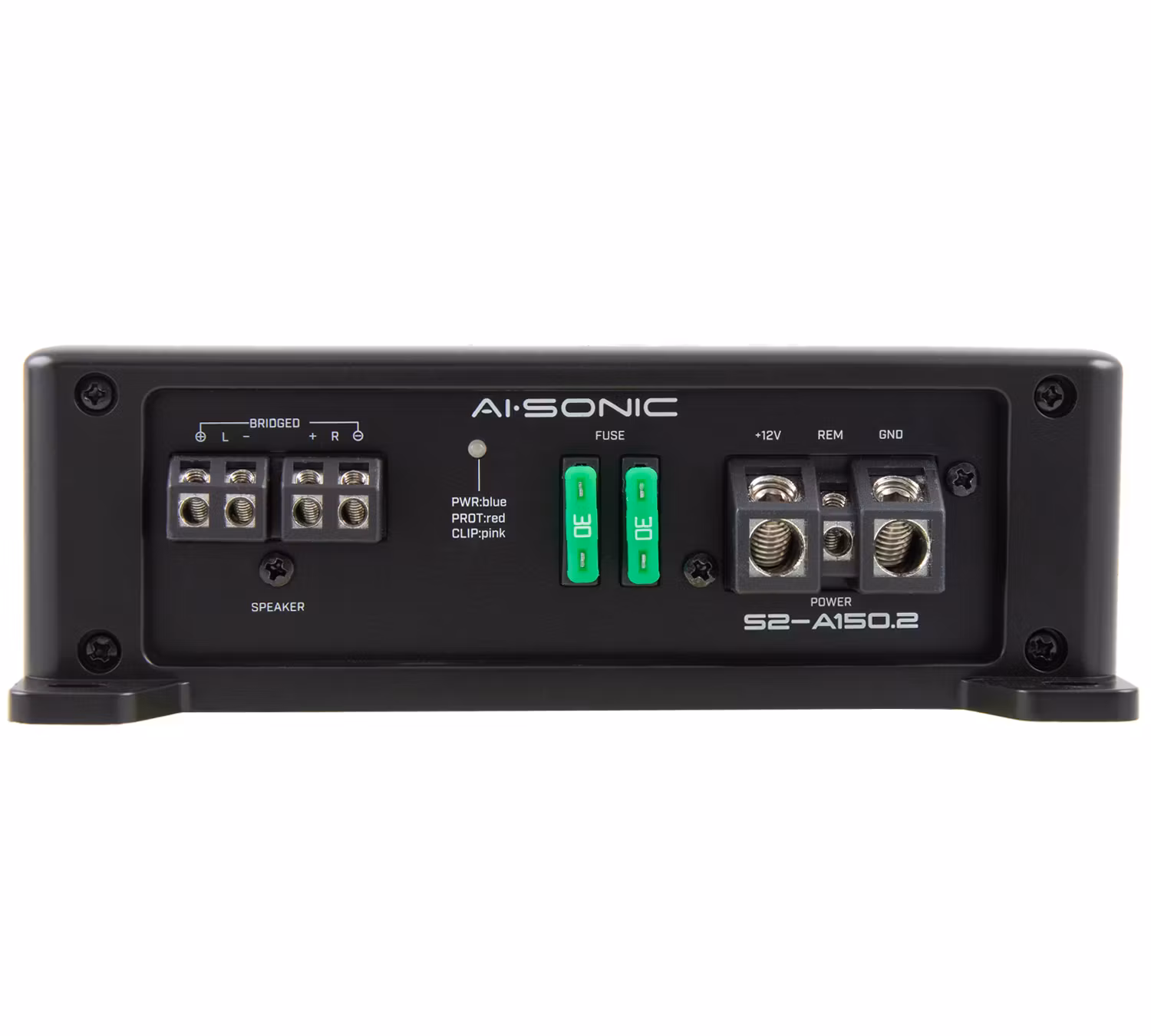

• S2-A150.2:
• RMS POWER (2ohm) 12v 1%THD 2x225W
• RMS POWER (4ohm) 12v 1%THD 2 x 150W
• BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
• T.H.D 0,02% 4ohm, 0.04 % 2ohm
• BANDWIDTH: 10Hz-40KHz
• S/N RATIO (A-WEIGHTED): 105dB
• CHANNEL SEPARATION: 45dB
• INPUT SENSITIVITY :0.5-6V
• LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
• HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
• BAND PASS(FRONT ): 12Hz- 5KHz
• CROSSOVER SLOPE: 12dB/oct
• BASS BOOST: 0/6dB(@45Hz)
• POWER FUSE: 2 x 30A
• HIGH-LEVEL VOLTAGE: 0.75-9V
• Cable fitting size:
• +12V = 20mm2
• GND = 20mm2
• REM = 6mm2
• SPEAKER = 6mm2
• Current Draw (Max): 52A
• DIMENSIONS W: 183mm / (7.2 IN)
• H: 60mm / (2.4 IN)
• L: 374mm / ( 14.7IN).
