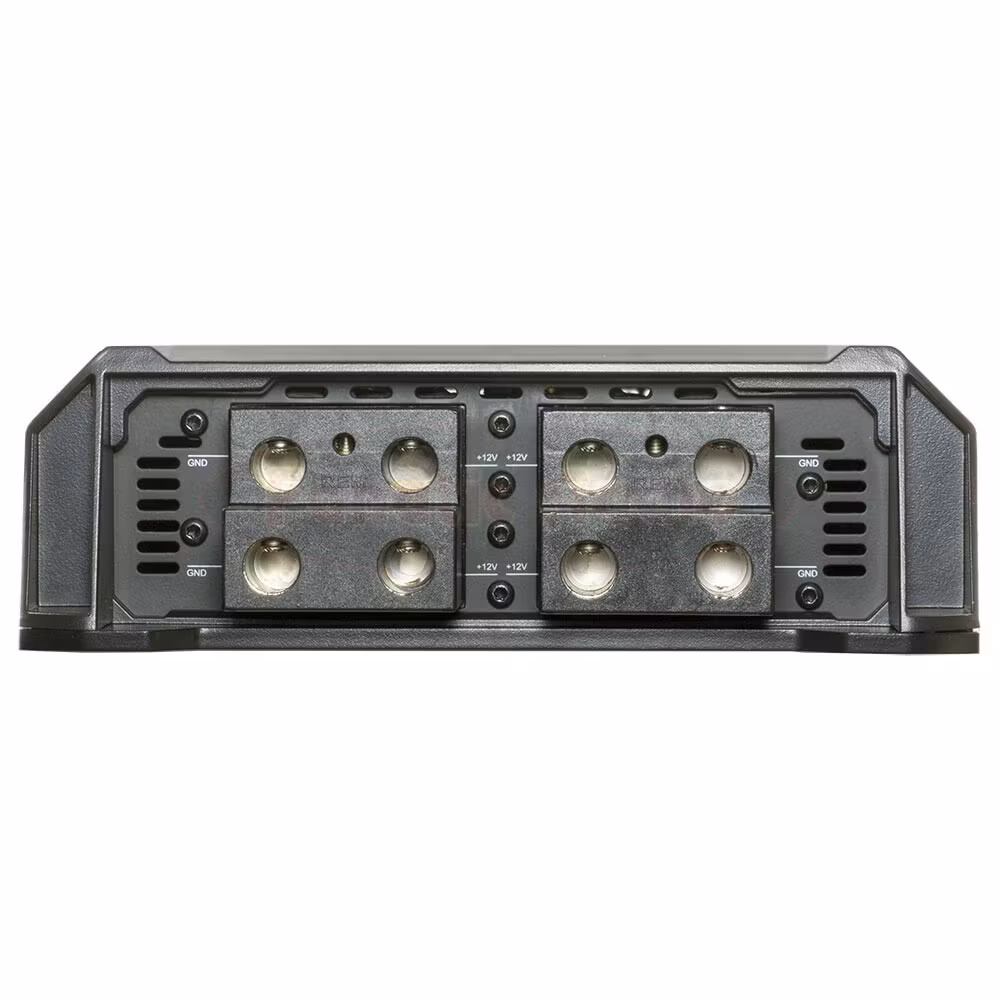

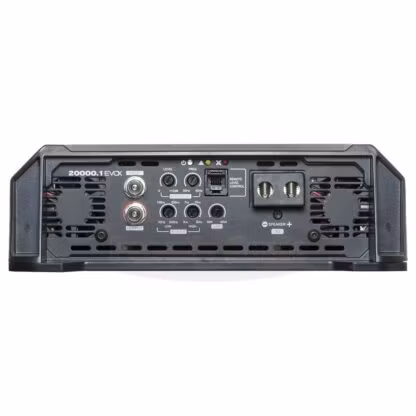

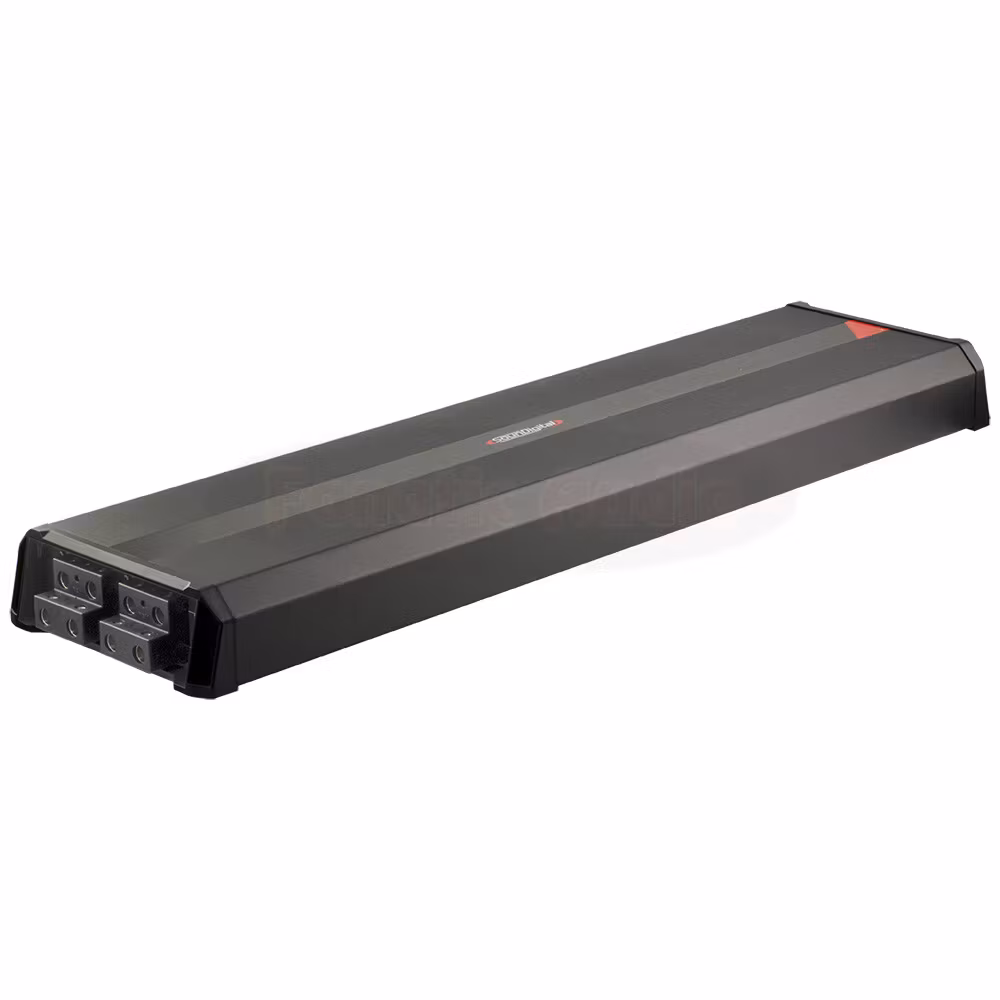

SounDigital 20000.1 EVOX - 1ohm

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system. The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

Teknisk information

• Compatible with SD-RLC Remote level control.
• Power @ 12.6V @ 4Ω: 1 X 8712 WRMS
• Power @ 12.6V @ 2Ω: 1 X 13200 WRMS
• Power @ 12.6V @ 1Ω: 1 X 20000 WRMS
• Power @ 14.4V @ 4Ω: 1 X 9714 WRMS
• Power @ 14.4V @ 2Ω: 1 X 14718 WRMS
• Power @ 14.4V @ 1Ω: 1 X 22300 WRMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 980 A
• Current Draw (Max): 1960 A
• Recommended Fuse (Music): 1200 A
• Total Efficiency: 81%
• Damping Factor: 200
• Frequency Response (-3dB): 5Hz – 500Hz
• SNR: 76dB
• Crossover HPF: 5Hz – 30Hz
• Crossover LPF: 50Hz – 500Hz
• THD + N (10% Rated Power): 0.2%
• Product Dimensions: 34 x 8.8 x 2.8 in
• Koppla inte förstärkaren under angiven nominell impedans!
• Do not run your amp under rated impedance!.
