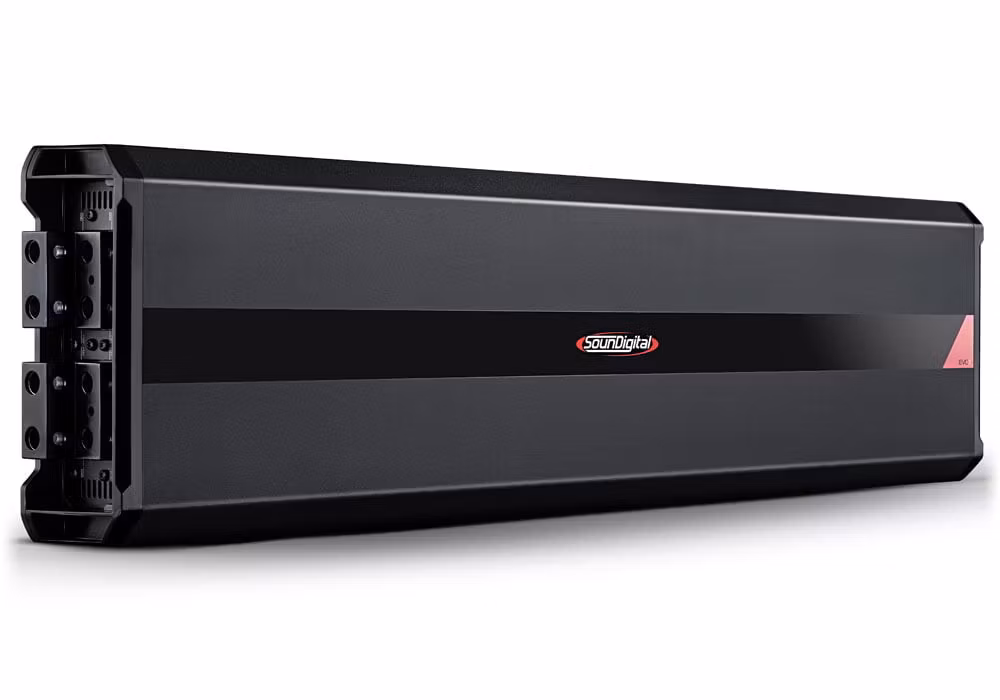

SounDigital 35000.1 EVOX 1 ohm

The 35000.1 EVOX is a compact, modern amplifier that delivers 35000W RMS of power over 1 channel. Amplifier for exclusive use in competitions.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Teknisk information

• 35000.1 EVOX – 1Ω
• Power @ 12.6V @ 4Ω: 1 X 15246 WRMS
• Power @ 12.6V @ 2Ω: 1 X 23100 WRMS
• Power @ 12.6V @ 1Ω: 1 X 35000 WRMS
• Power @ 14.4V @ 4Ω: 1 X 16999 WRMS
• Power @ 14.4V @ 2Ω: 1 X 25757 WRMS
• Power @ 14.4V @ 1Ω: 1 X 39025 WRMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 1715 A
• Current Draw (Max): 3429 A
• Recommended Fuse (Music): 3500 A
• Total Efficiency: 81%
• Damping Factor: 200
• Frequency Response (-3dB): 5Hz – 500 Hz
• SNR: 76dB
• Crossover HPF: 5Hz – 30Hz
• Crossover LPF: 50Hz – 500Hz
• THD + N (10% Rated Power): 0.3%
• Product Dimensions: 33.9 x 8.8 x 2.8 in
• Product Dimensions: 86.3 x 22.5 x 7.1 cm.
