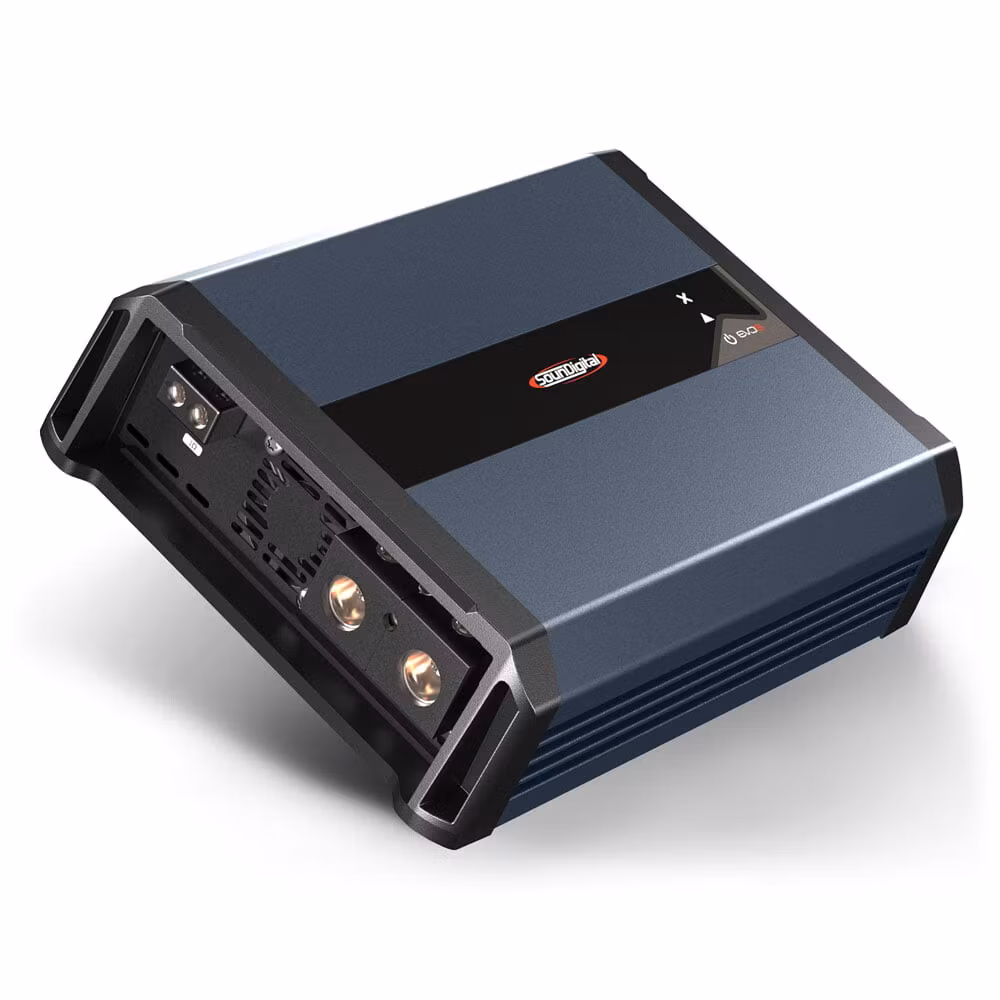

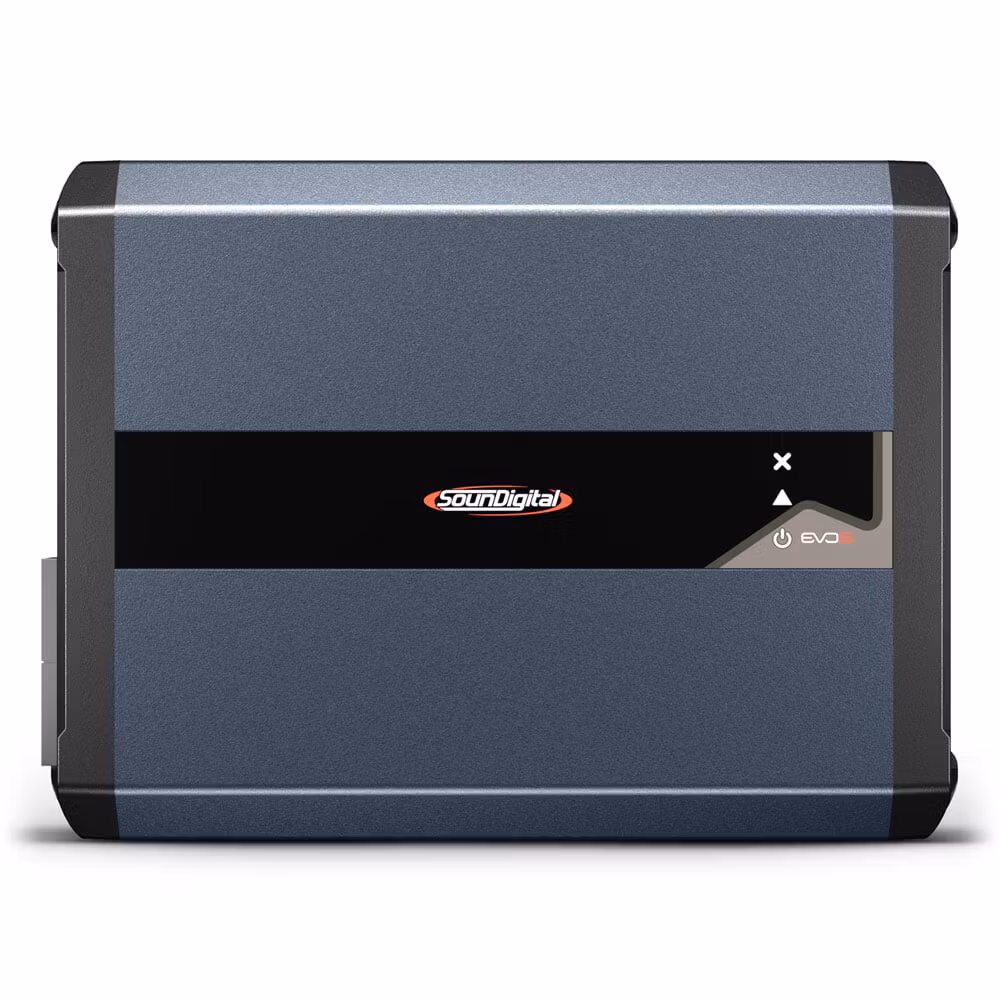

SounDigital 5000.1 EVO 5 - 1 Ohm

The 5000.1EVO 5 is a compact, modern amplifier that delivers 5000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Teknisk information

• Power @ 1Ω: 1 X 5000 WRMS
• Power @ 2Ω: 1 X 3300 WRMS
• Power @ 4Ω: 1 X 2178 WRMS
• Frequency Response (-3dB):
• 5Hz ~ 6kHz
• Low Pass filter (12dB/oct):
• 50Hz ~ 6kHz
• Subsonic (12dB/oct):
• 5Hz ~ 80Hz
• Operating Voltage:
• 8V ~ 16V
• SNR:
• 90dB
• Input Sensitivity (RCA):
• 0.2V ~ 2V
• Input Sensitivity (High Level input):
• 1.2V ~ 12V
• Current Draw (music):
• 230A
• Current Draw (max.):
• 461A
• Total Efficiency:
• 86%
• Damping Factor (@100Hz nominal impedance):
• 2000
• Power Cable:
• 50mm² (0 AWG)
• Speaker Cable:
• 2 x 10mm² (7 AWG)
• Recommended Fuse (music):
• 250A
• Recommended battery (minimum):
• 250Ah
• Width:
• 7.1″ / 18 cm
• Length:
• 9.9″ / 25 cm
• Height:
• 2.5″ / 6.32 cm
• Weight:
• 6.06 lb / 2,75 kg
