SounDigital SD1200.1 EVO 5 - 2 Ohm

  • 2 490 kr
Tillgänglig
Dela
  • Information

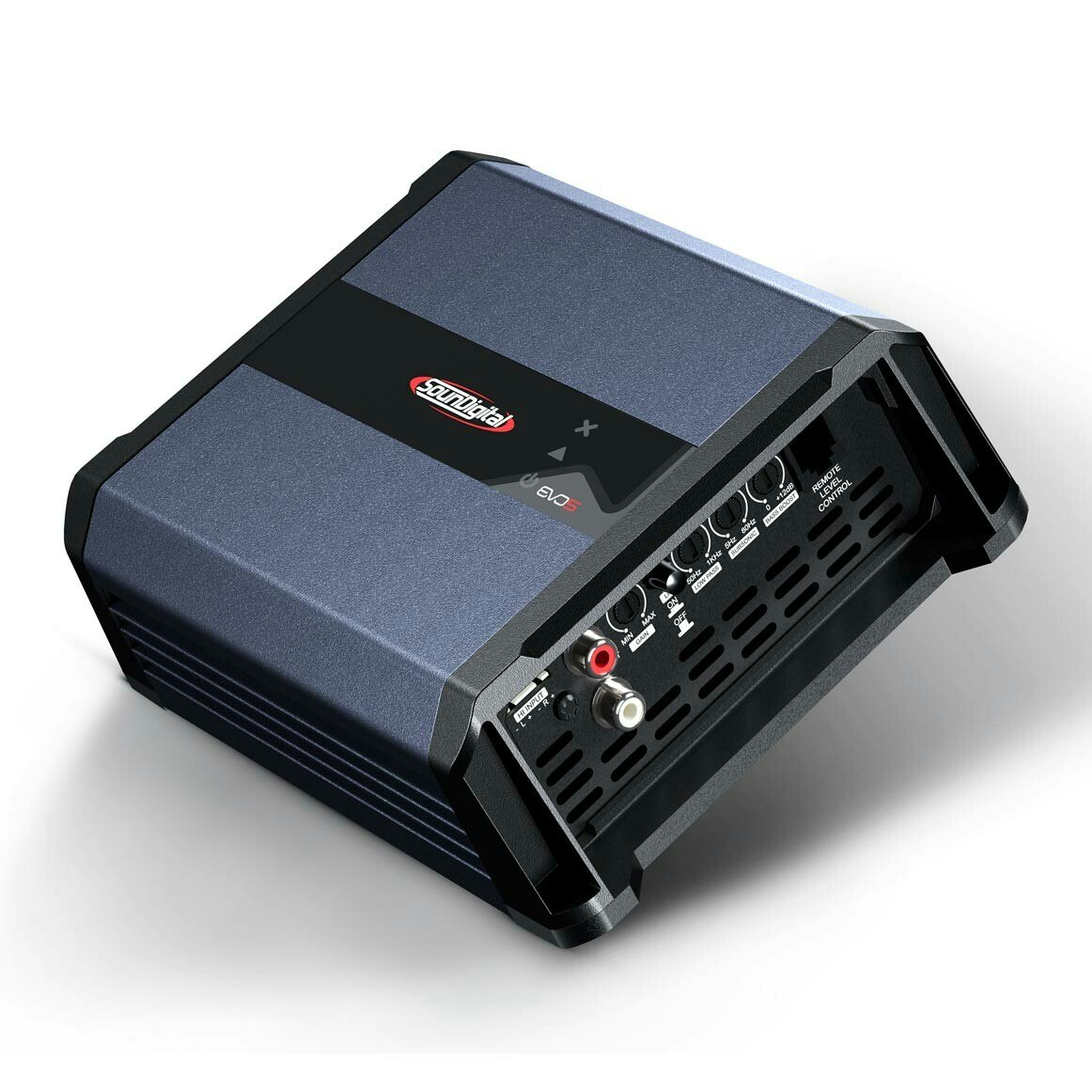

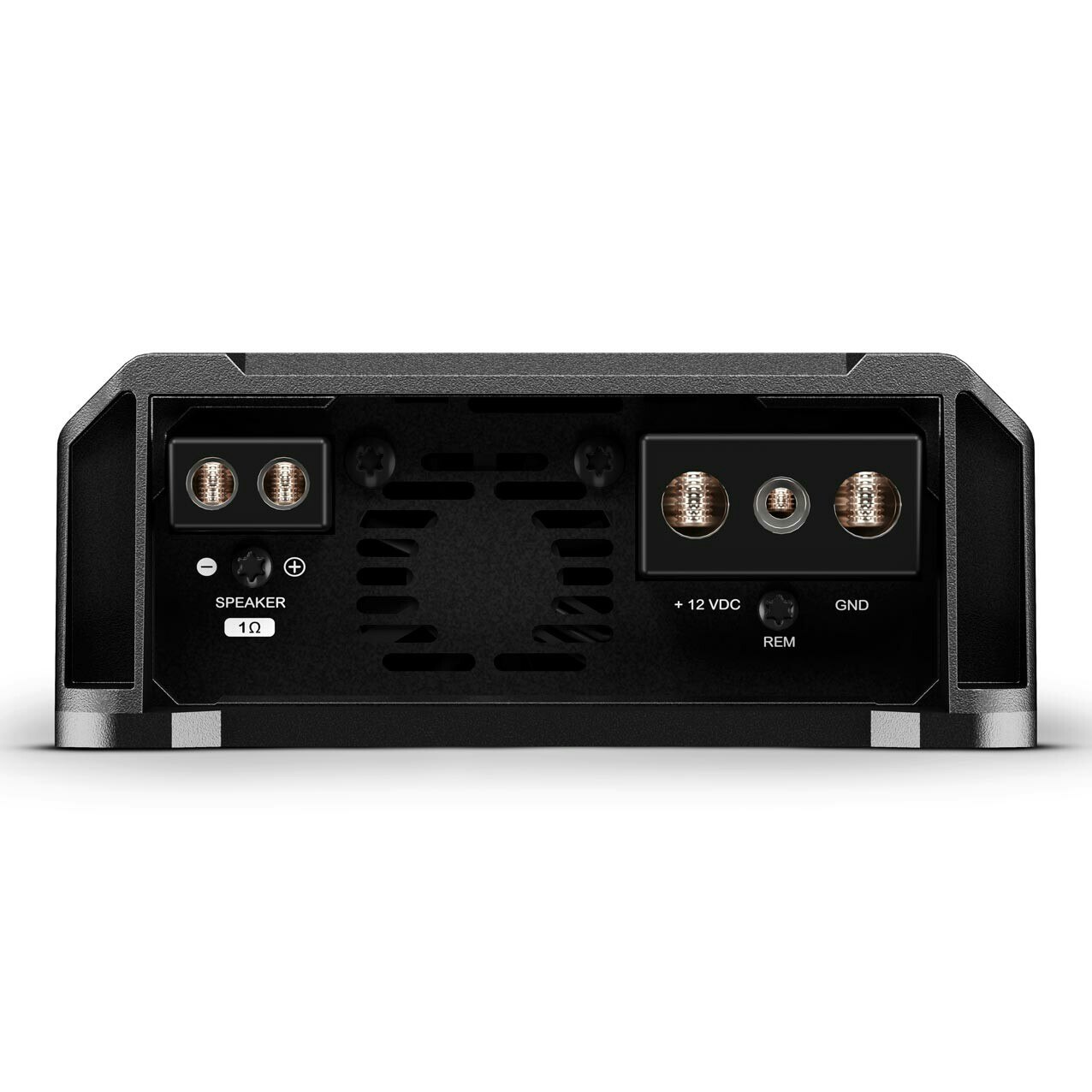

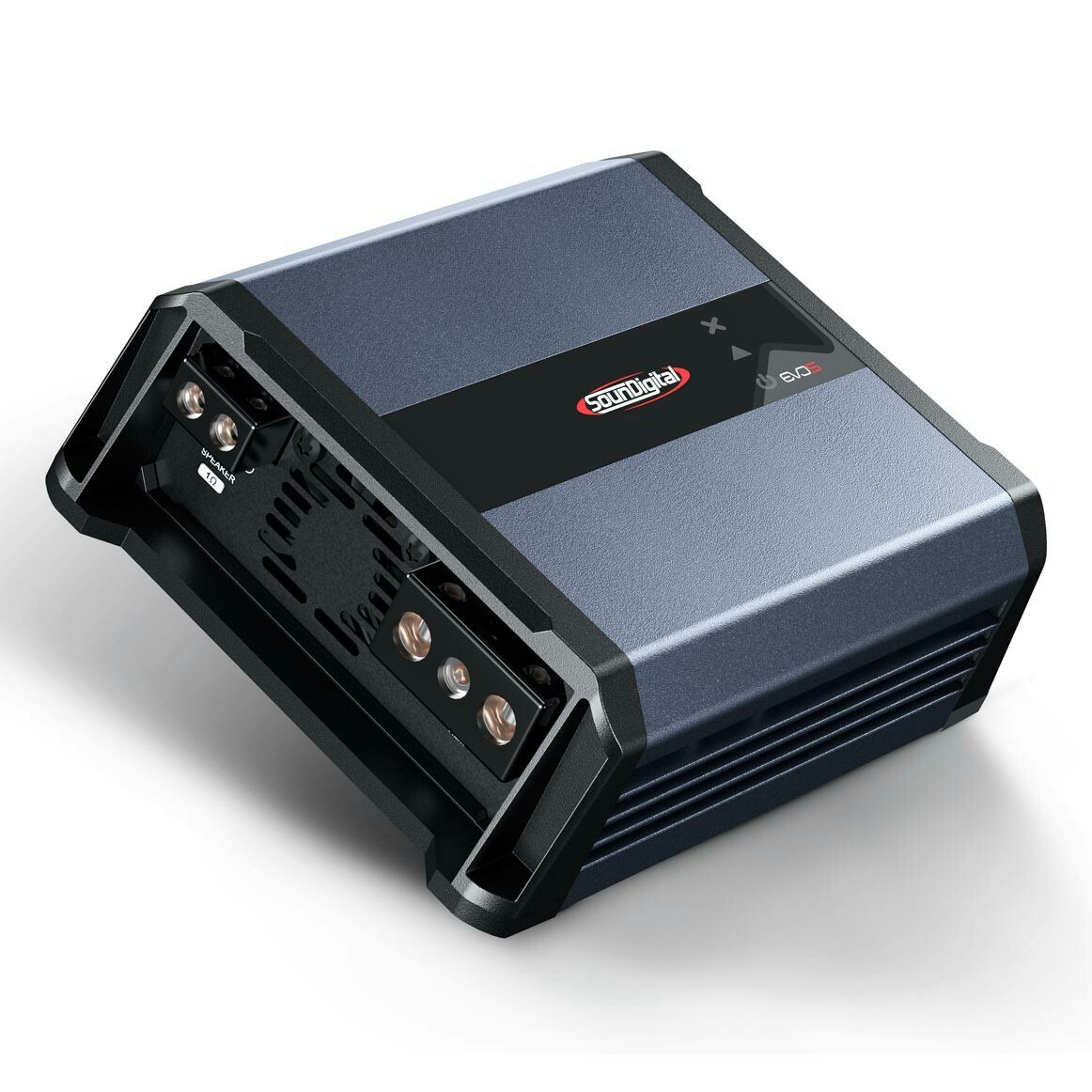

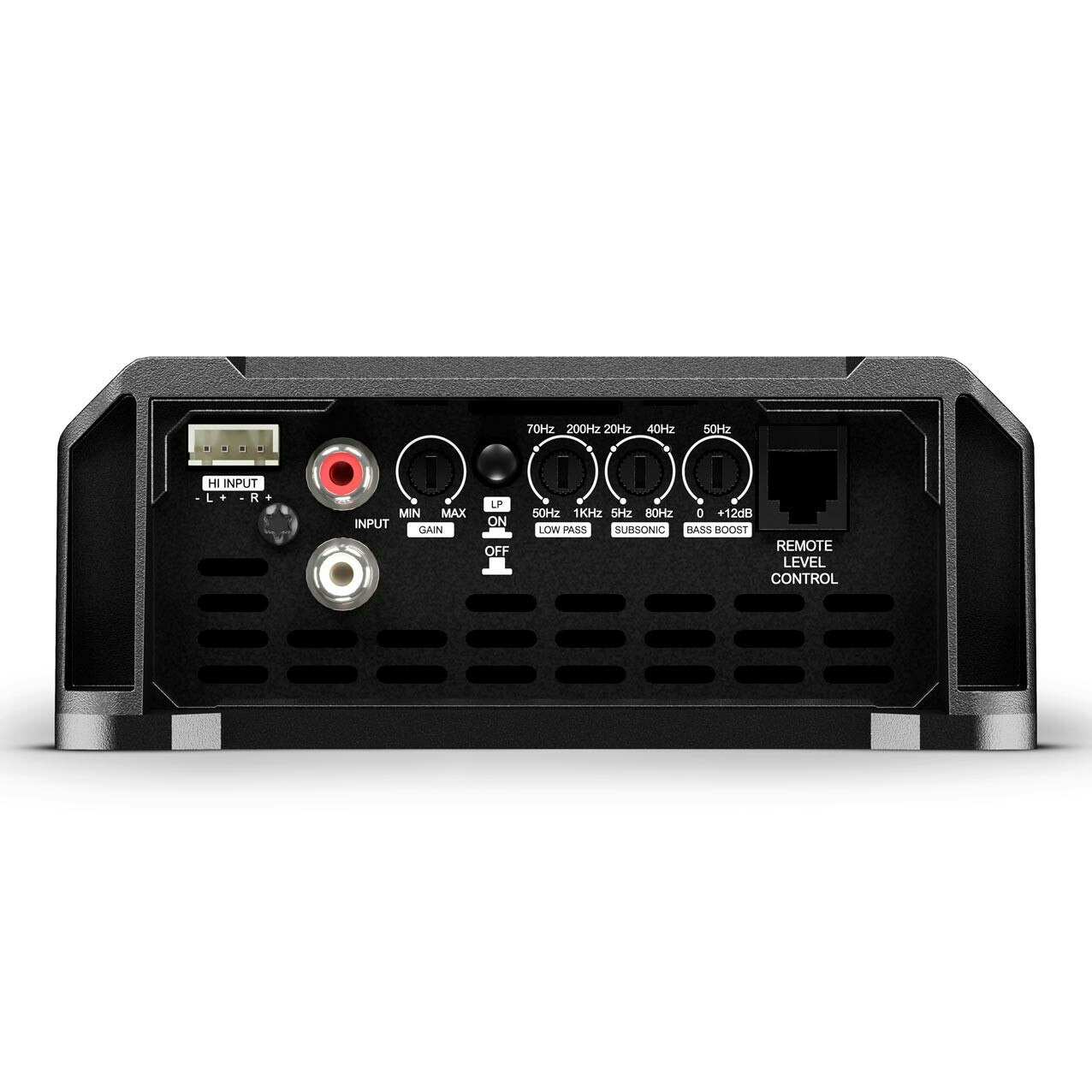

The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Teknisk information

  • Power @ 1Ω: N/A
  • Power @ 2Ω: 1 X 1200 WRMS
  • Power @ 4Ω: 1 X 792 WRMS
  • Frequency Response (-3dB):
  • 5Hz ~ 25kHz
  • Subsonic Filter:
  • 5Hz ~ 80Hz
  • Low Pass Filter:
  • 50Hz ~ 1kHz
  • Bass Boost:
  • 0dB ~ 12dB @ 50Hz
  • Operating Voltage:
  • 9V ~ 16V
  • Signal-Noise Ratio:
  • 95dB
  • Input Sensitivity:
  • 0.2V ~ 2V
  • Current Draw (Music):
  • 1Ω: 54A
  • 2Ω: 52A
  • Current Draw (Max):
  • 1Ω: 108A
  • 2Ω: 105A
  • Total Efficiency:
  • 1Ω: 88%
  • 2Ω: 91%
  • Damping Factor:
  • 2000
  • Power Cable:
  • 16mm² (5AWG)
  • Audio Output Cable:
  • 1Ω: 2 x 4 mm² (6 AWG)
  • 2Ω: 2 x 2,5 mm² (13 AWG)
  • Recommended Fuse (Music):
  • 70A
  • Recommended Battery:
  • 70Ah
  • Width:
  • 13.6 cm / 5.4 in
  • Length:
  • 18 cm / 7.1 in
  • Height:
  • 5.48 cm / 2.2 in
  • Weight:
  • 1,12 Kg.
