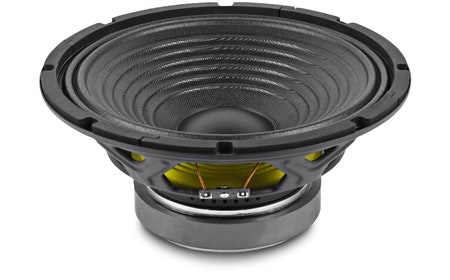

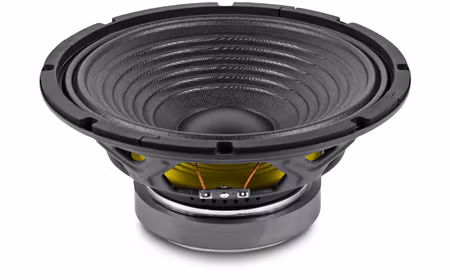

Beyma - 10CMV2 - 8ohm

Technical Specifications

Nominal Impedance

8 ohms

Power

250 W AES

Nominal Diameter

250mm 10 Inch

Effectiveness

95 dB 1 W/1 m @ ZN

Electrical resistance

7.2 ohms

Frequency

60-5000 Hz

Program Power

500 watts

Recommended Housing Volume

30 liters

Coil Diameter

38.1 mm 1.5 in

BL Factor

13.4 N/A

Moving Mass

0.042 kg

Winding length

16 mm

Air gap height

7 mm

Xdamage pp

30 mm

Thielle & Small Parameters

Fs

52 Hz

Re

5.9 ohms

Qms

3.8

Qes

0.47

Qts

0.42

Vas

44 l

Cms

216 μm/N

Rms

3.7 kg/s

Effectiveness %

1.3

Sd

0.038 m²

Xmax

6.5 mm

Vd

247 cc

Le @1 kHz

0.8 mH

Design details

Depth

115 mm 4.52 in

Net Weight

3.1 kg 6.82 lb

Total weight

3.5 kg 7.77 lbs

Magnet

Ferrite
