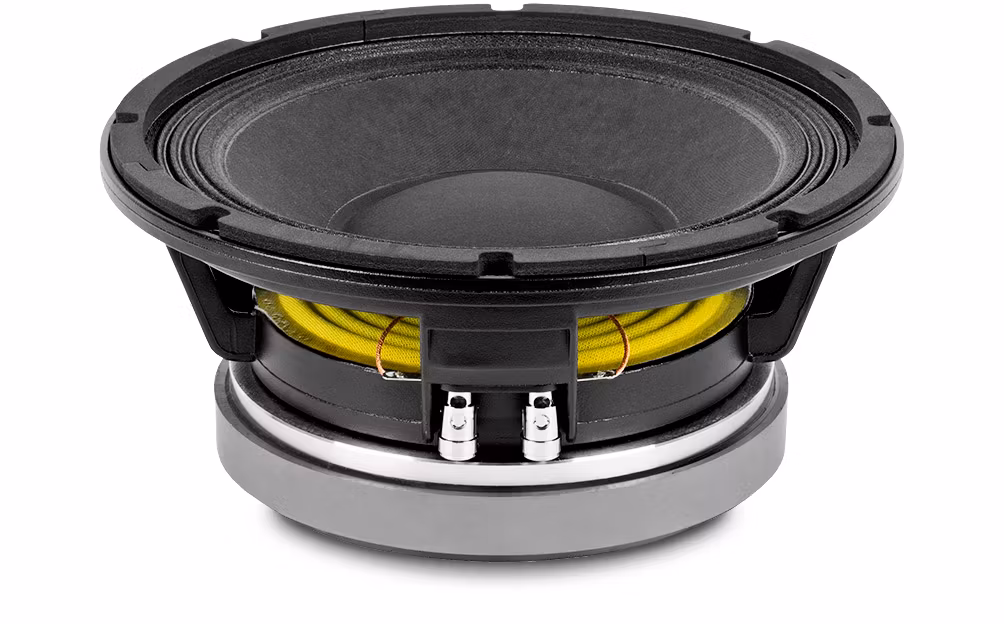

Beyma 10MI100

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

350 W AES

Nominal diameter

250 mm 10 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

6.6 ohm

Frequency range

70-4000 Hz

Program power

700 W

Recommended enclosure volume

-

Voice coil diameter

76.2 mm 3 in

BL factor

18.7 N/A

Moving mass

0.038 kg

Winding length

13.5 mm

Air gap height

10 mm

Xdamage pp

24 mm

PARAMETERS THIELE & SMALL

Fs

50 Hz

Re

6.3 ohm

Qms

6.6

Qes

0.22

Qts

0.21

Vas

54 l

Cms

266 µm / N

Rms

1.8 kg / s

Efficiency %

3

Sd

0.038 m²

Xmax

4.5 mm

Vd

170 cm³

Le @1 kHz

0.9 mH

CONSTRUCTION DETAILS

Depth

122 mm 4.8 in

Net weight

7.1 kg 15.6 lb

Total weight

7.5 kg 16.5 lb

Magnet

Ferrite
