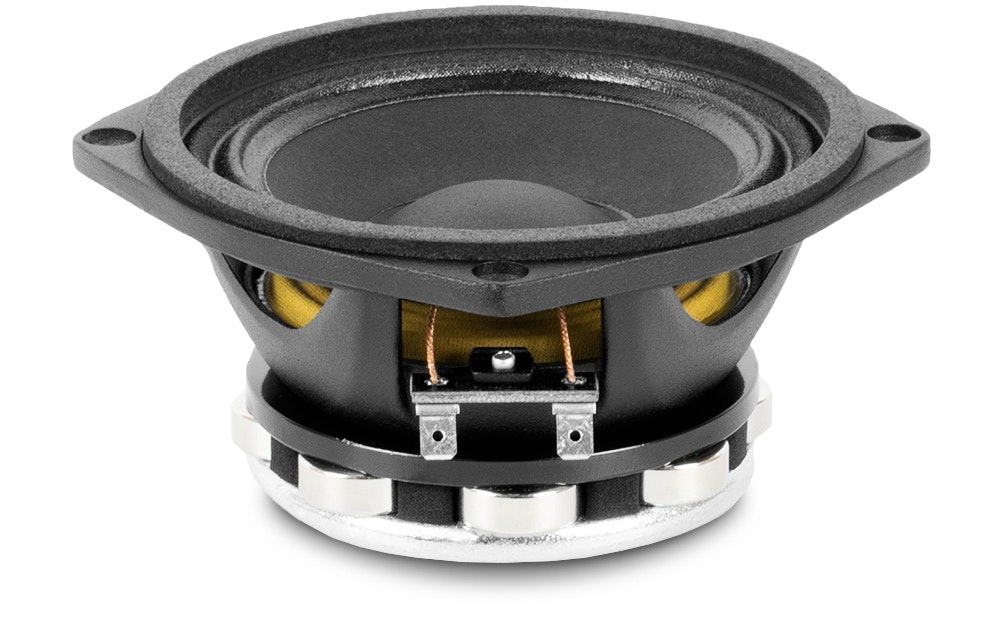

Beyma 5G40Nd/N - 8OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

100 W AES

Nominal diameter

125 mm 5 in

Sensitivity

92 dB 1 W/1 m @ ZN

Minimum impedance

6.9 ohm

Frequency range

150-17000 Hz

Program power

200 W

Recommended enclosure volume

10 / 20 l 0.35 / 0.7 ft.³

Voice coil diameter

38.1 mm 1.5 in

BL factor

10 N / A

Moving mass

0.009 kg

Winding length

9 mm

Air gap height

7 mm

Xdamage pp

20 mm

PARAMETERS THIELE & SMALL

Fs

140 Hz

Re

6.6 ohm

Qms

2.8

Qes

0.53

Qts

0.45

Vas

1.4 l

Cms

143 µm / N

Rms

2.9 kg/s

Efficiency %

0.7

Sd

0.0085 m²

Xmax

3 mm

Vd

26 cm³

Le @1 kHz

0.2 mH

CONSTRUCTION DETAILS

Depth

72 mm 2.83 in

Net weight

1.2 kg 2.64 Ib.

Total weight

1.3 kg 2.86 lb

Magnet

Neodymium
