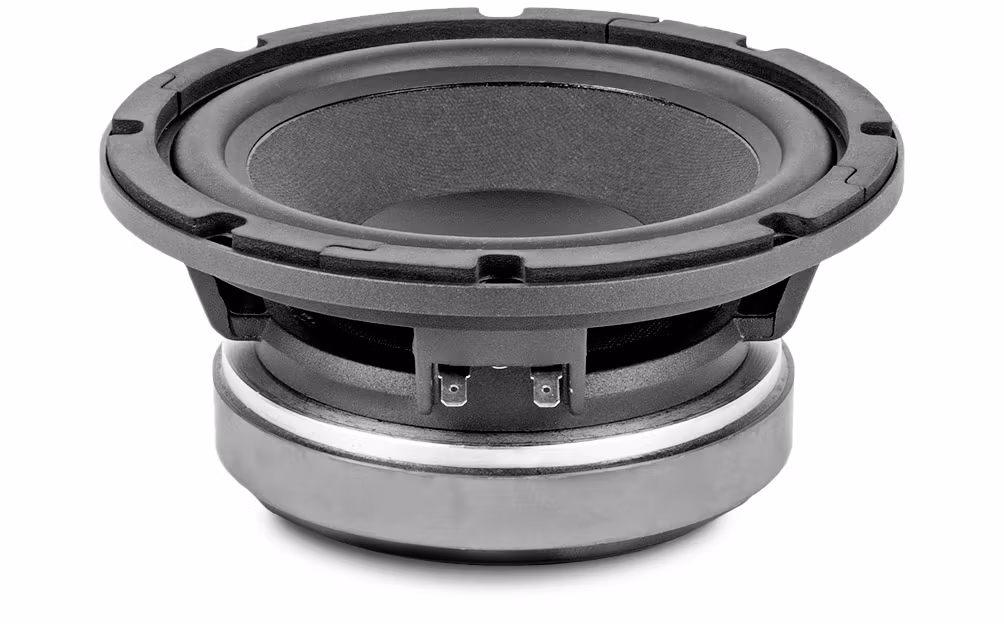

Beyma 8P300FE/N

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

300 W AES

Nominal diameter

200 mm 8 in

Sensitivity

94 dB @ 1 W @ ZN

Minimum impedance

6.7 ohm

Frequency range

55-8000 Hz

Program power

600 W

Recommended enclosure volume

10 / 30 l 0.35 / 1.06 ft.³

Voice coil diameter

63.5 mm 2.5 in

BL factor

11.6 N /A

Moving mass

0.025 kg

Winding length

15 mm

Air gap height

7 mm

Xdamage pp

24 mm

PARAMETERS THIELE & SMALL

Fs

53 Hz

Re

5.2 ohm

Qms

14.3

Qes

0.32

Qts

0.31

Vas

24.8 l

Cms

362 µm / N

Rms

0.58 kg/s

Efficiency %

1.1

Sd

0.022 m²

Xmax

6 mm

Vd

132 cm³

Le @1 kHz

0.4 mH

CONSTRUCTION DETAILS

Depth

97 mm 3.8 in

Net weight

4 kg 8.82 lb

Total weight

4.25 kg 9.35 lb

Magnet

Ferrite
