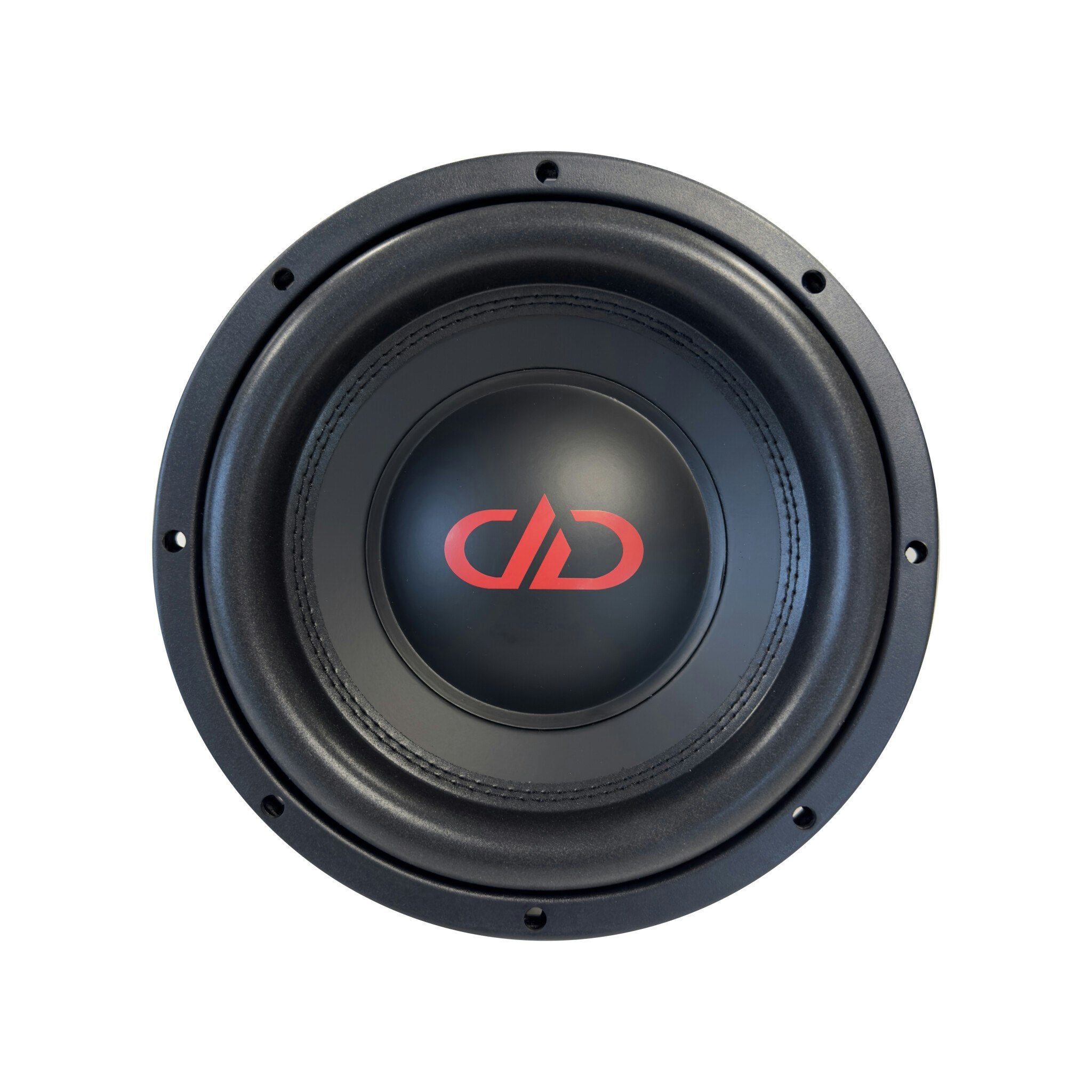

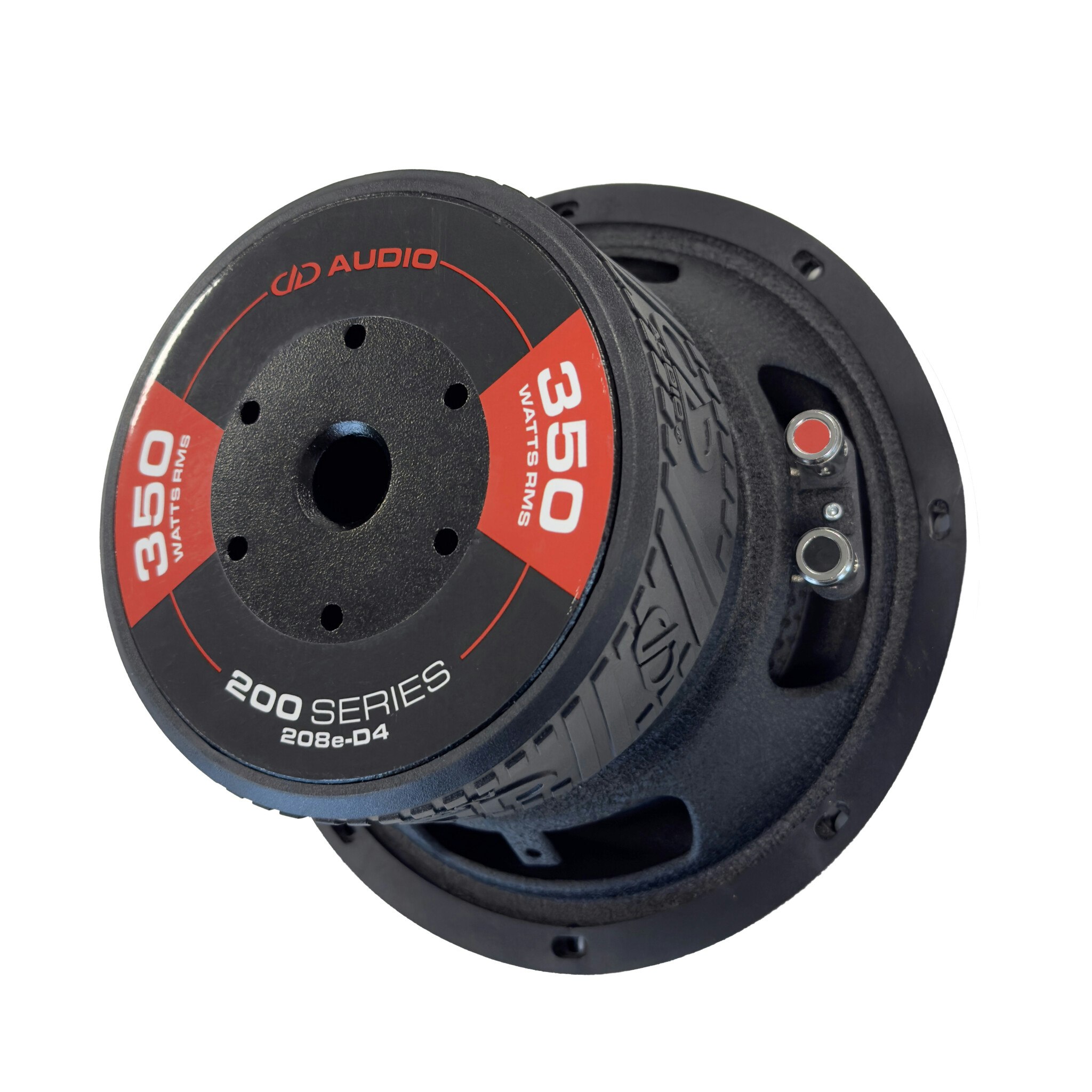

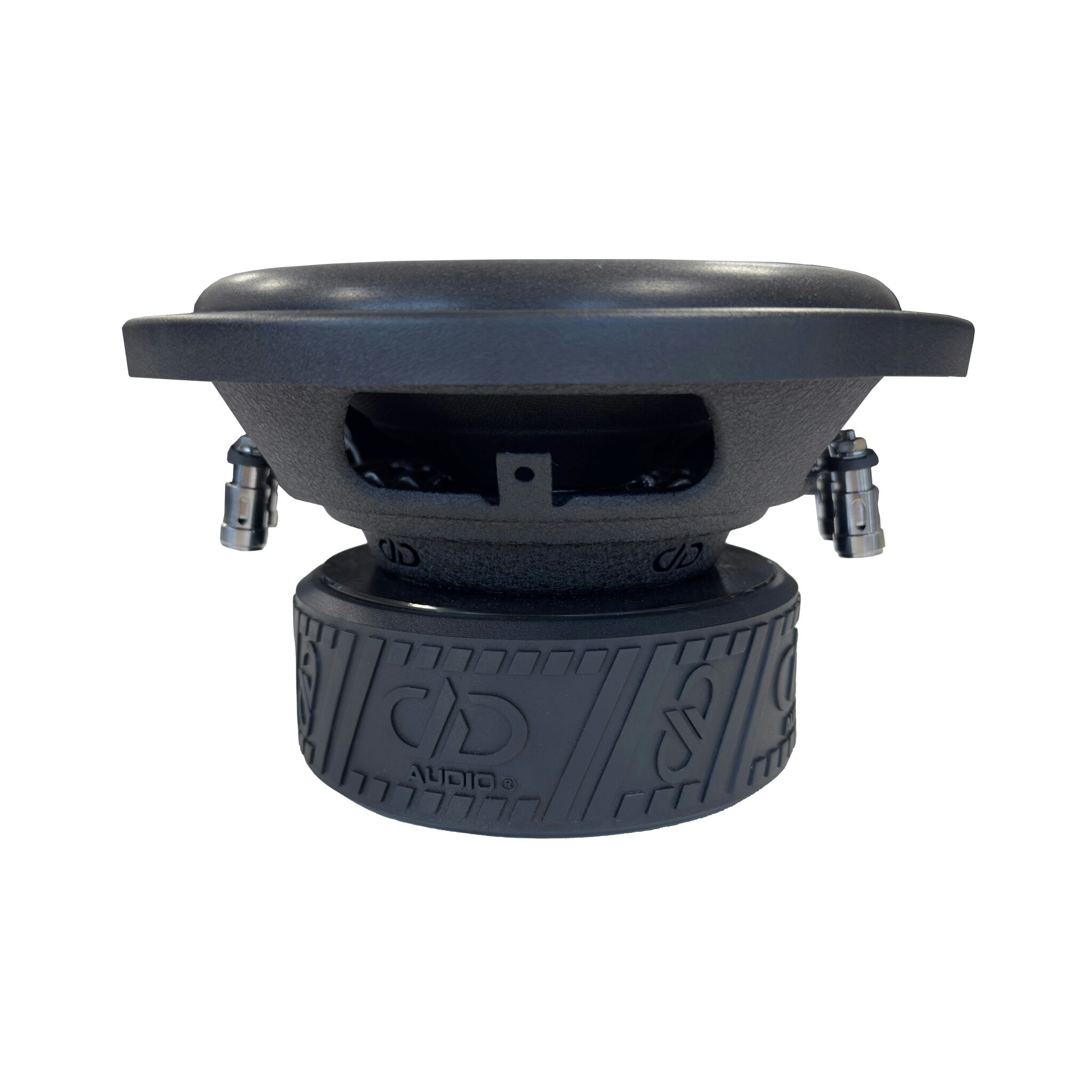

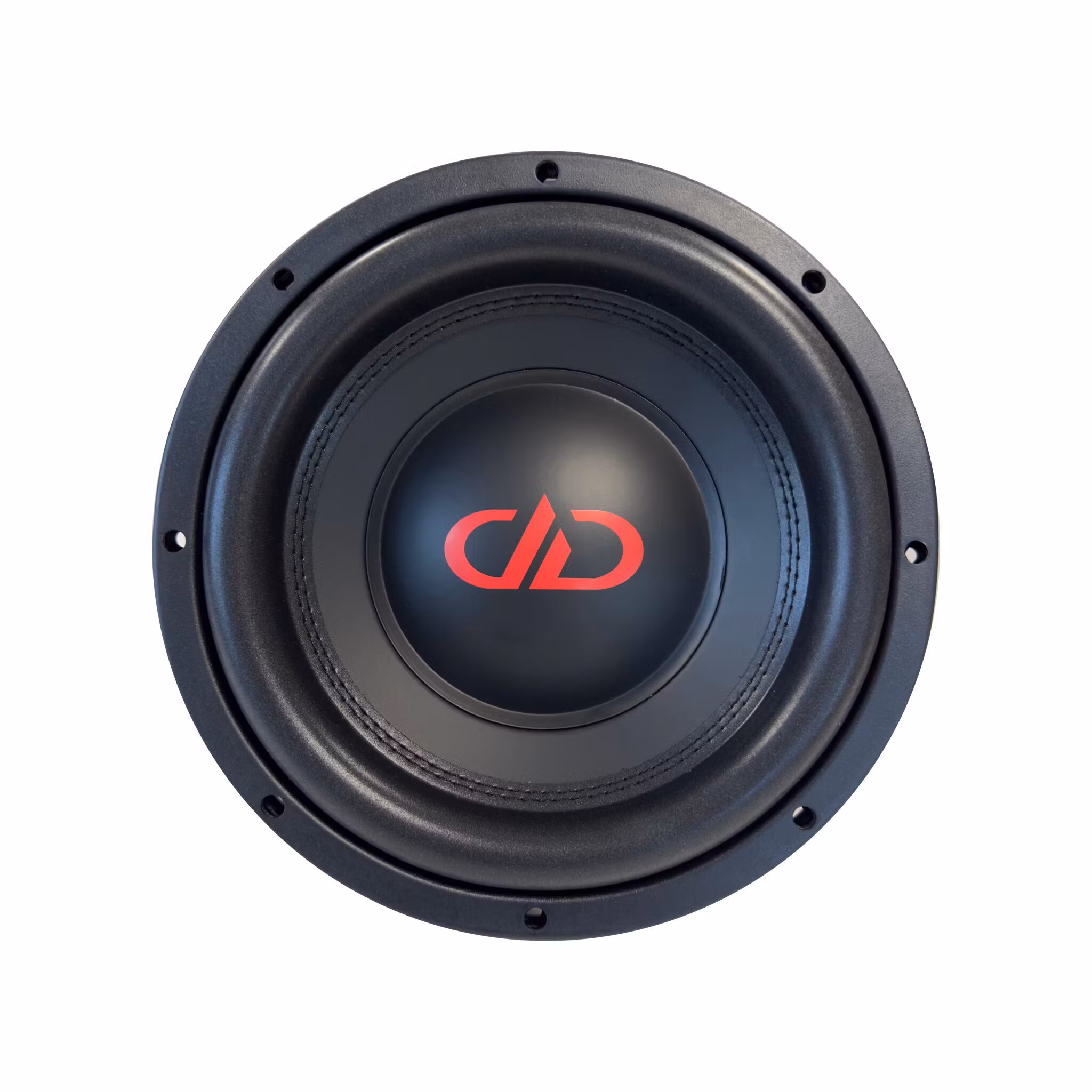

DD Audio 208e-D2

New 200e series offers excellent performance at affordable prices.

The 200e series is designed to provide some satisfying bass on as little as 100-300 Watts. Enhancing these sub’s output efficiency is their smooth, wide bandwidth. They’re tuned to work well in sealed enclosures as well as compact vented designs.

Teknisk information

• Speaker Size (In): 8
• Watts RMS: 350
• Watts Peak: 1100
• Impedance: D2
• VCD (In): 2
• Fs (Hz): 46.7
• Qms: 4.266
• Qes: 0.5922
• Qts: 0.52
• Vas (Liters): 9.086
• BL (TM): 20
• Xmech (MM): 20
• Xmax (MM): 10
• Frame OD (In): 8.215
• Frame OD w/ Gasket (In): 8.63
• Mounting Diameter (In): 7.168
• Mounting Depth (In): 3.898
• Motor Diameter (In): 1.7
• Motor Depth (In): 5.27
• Magnet Weight (Oz): 55
• Woofer Displacement (CuFt): 0.03
• Sealed Enclosure (CuFt): 0.25 - 0.4
• Ported Enclosure (CuFt): 0.35 - 0.75
• Shipping Weight (Lbs): 12
