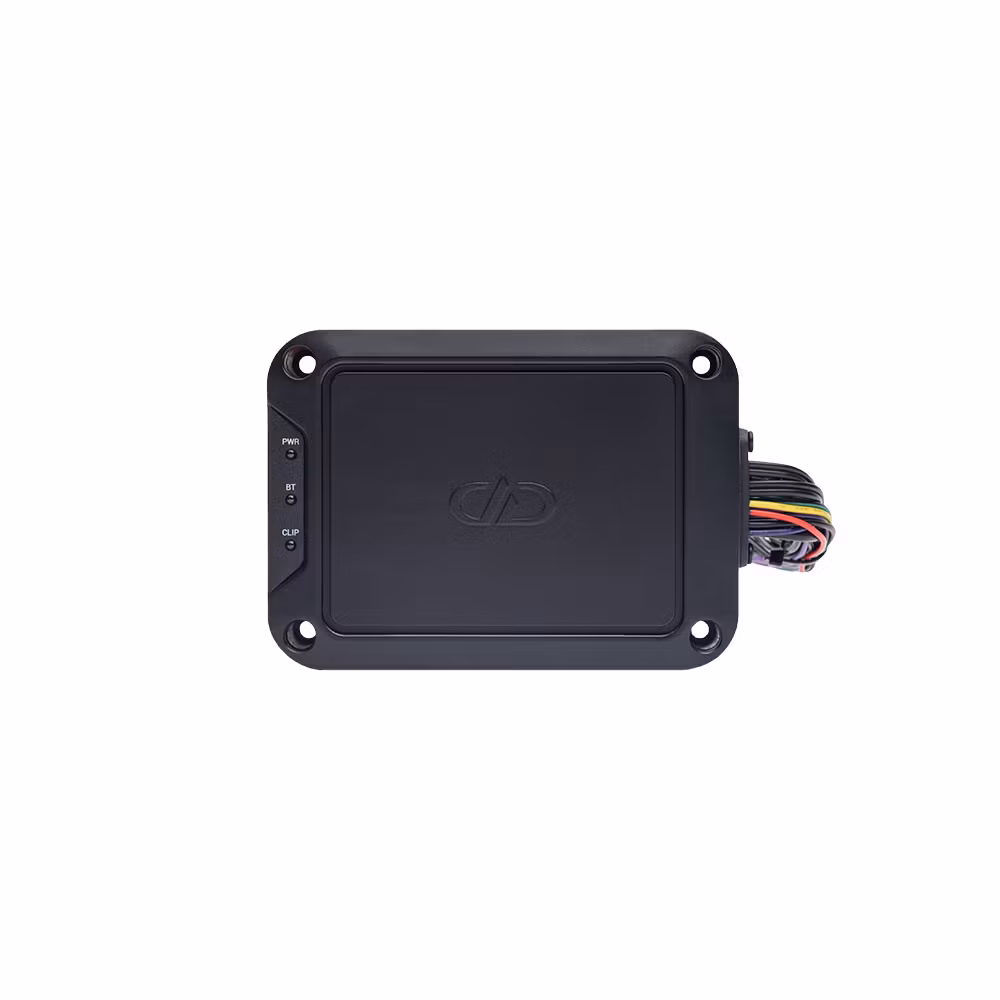

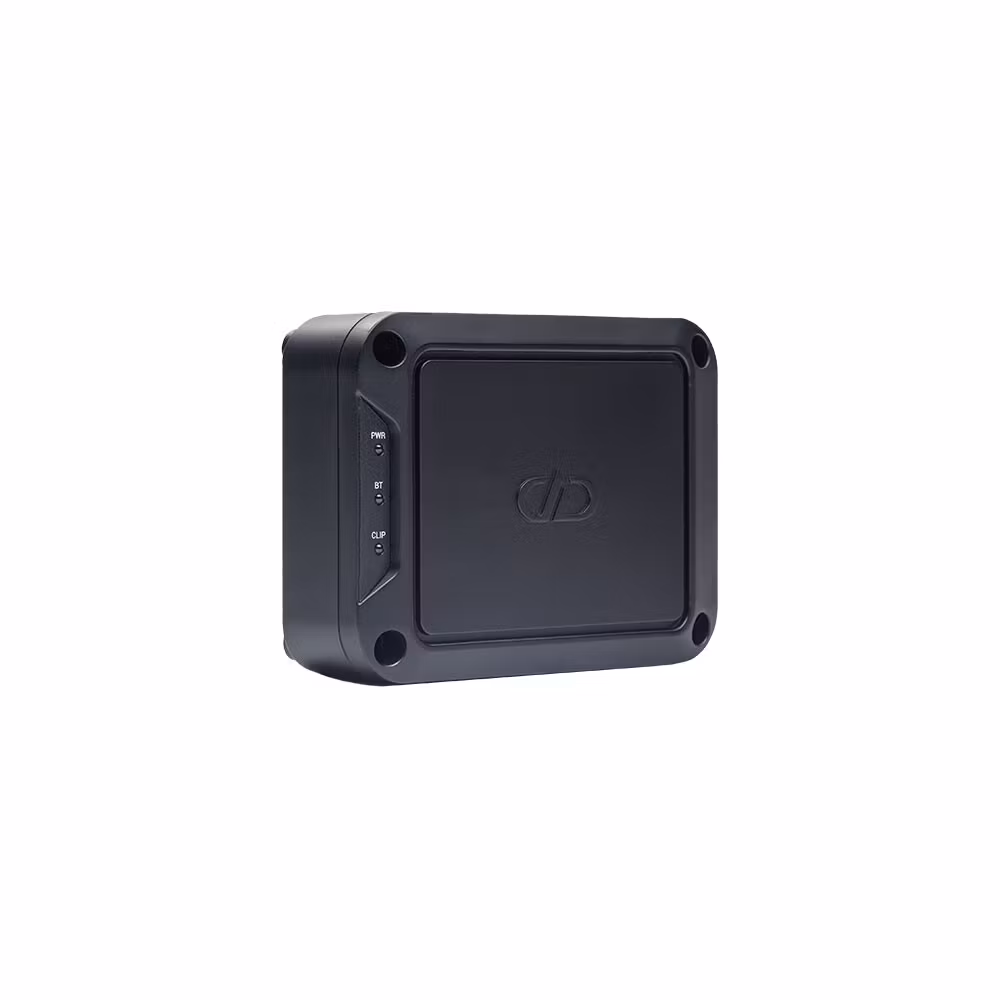

DD Audio DSI-X2

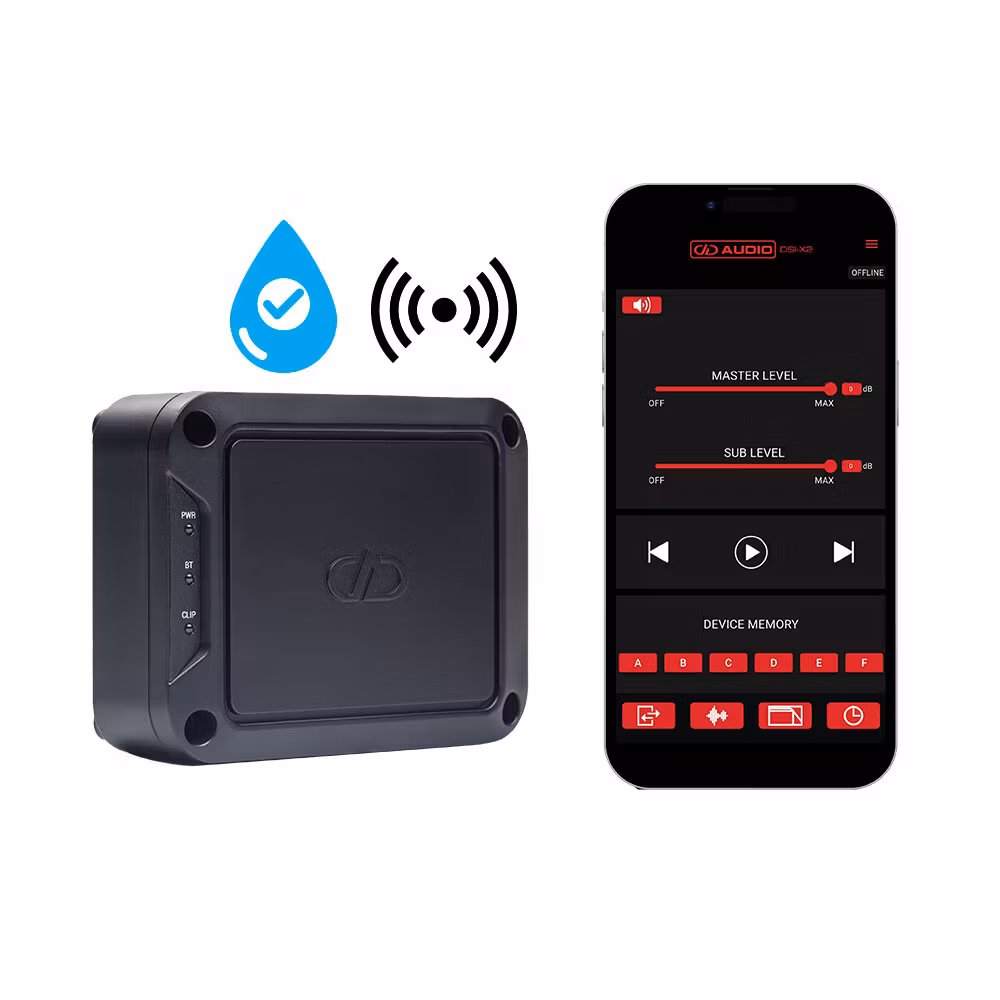

DD Audio DSI-X2 is a compact size signal processor that can be adjusted using Android and iOS phones.

Despite its compact size, the DSI-X2 is packed with awesome features: 4 inputs, 8 output channels, Bluetooth, time alignment, crossovers, 15-band EQ, and a wired remote.

The unit features 4 inputs, and the signal can be either high-level or low-level. The DD Audio DSI-X2 is an excellent solution for connecting amplifiers to a vehicle’s factory head unit while also handling DSP processing. It is also ideal for any audio system where a DSP is needed and real-time adjustment via smartphone is desired.

Note! Thanks to its IPX7 rating, the DSI-X2 is also an excellent choice for applications such as UTV′s, boats, and other demanding environments.

Input signal summing allows you to create a full-range signal even when the signal is taken after factory crossovers. In some factory-installed car audio systems, it can be difficult to find a full-range signal from a single pair of wires. In these cases, signal summing is a major advantage when building an upgraded system behind the factory head unit.

DSI-X2 is IPX7 rated amplifier. An IPX7 rating means a device is water-resistant enough to withstand accidental submersion in up to 1 meter (about 3.3 feet) of fresh water for up to 30 minutes

The unit includes a built-in Bluetooth receiver for audio streaming and tuning the settings using DD Audio APP.

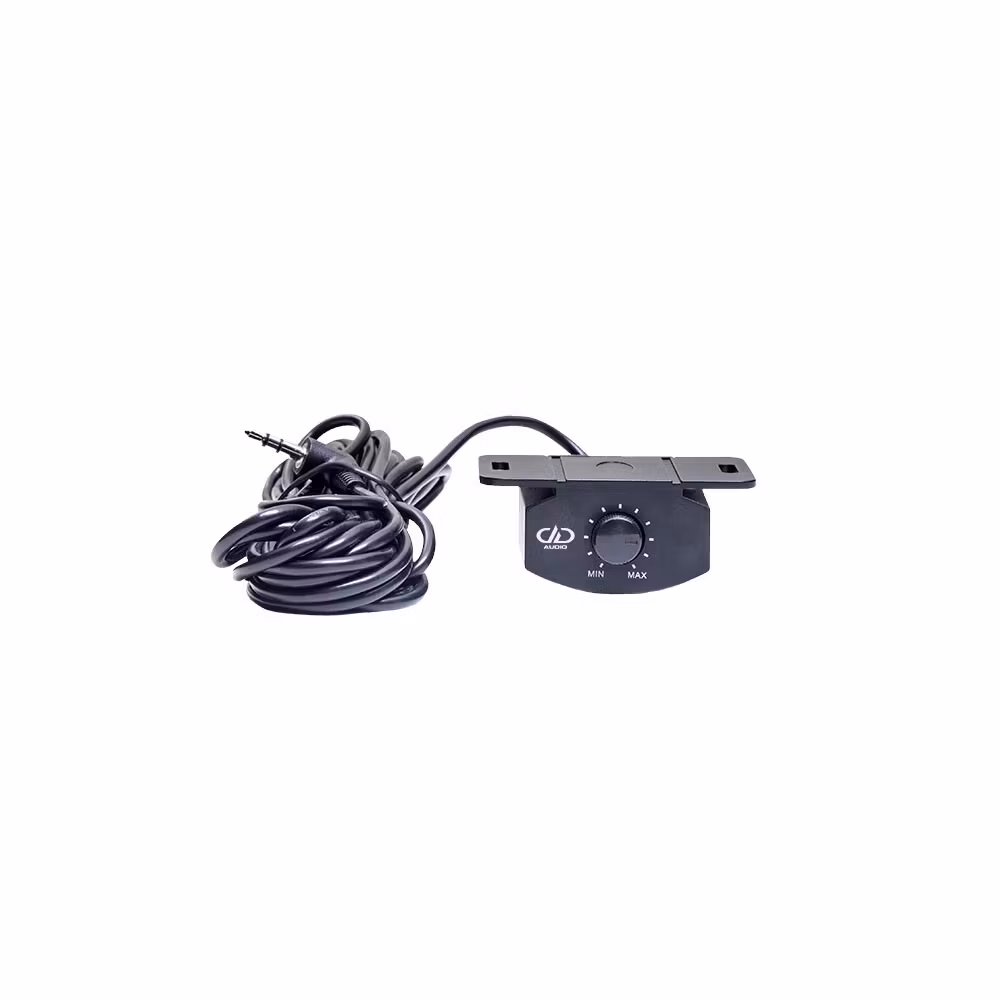

A wired level controller is included in the package.

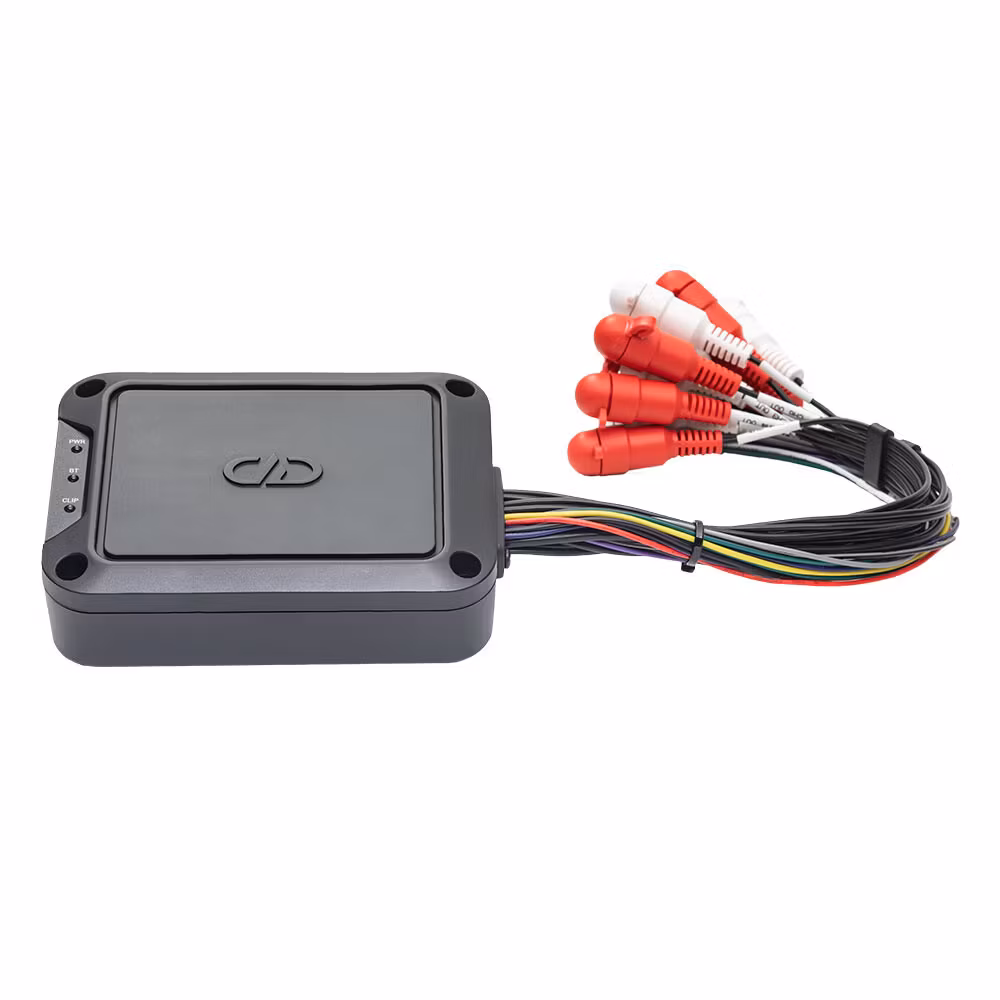

- App control via Android / iOS - Bluetooth audio streaming - Clipping indicator - 4 inputs with signal summing - 8 RCA outputs, ( 8 V ) - 15-band parametric equalizer - Built-in Bluetooth - IPX7 rating - Wired level controller

Download app:

Android: https://play.google.com/store/apps/details?id=com.dd_audio.dsi_x2

iOS: https://apps.apple.com/us/app/dsi-x2/id6751246225

Teknisk information

• Input Channels: 4
• Output Channels: 8
• SPK Input Sensitivity Max: 8 Vrms
• RCA Input Sensitivity Max: 4 Vrms
• Operating Voltage: 9-17 Vdc
• High-Level Input Impedance: 20 KΩ
• RCA Input Impedance: 25 KΩ
• RCA Output Impedance: 220 Ω
• RCA Output Voltage: 8 Vrms
• High-Level Input S/N: 100 dB
• RCA Input S/N: 100 dB
• High-Level Input THD: 0.01%
• RCA Input THD: 0.01%
• REM OUT Output Current: 100mA
• Parametric / Graphic EQ: 15 Bands
• Sampling Frequency: 48KHz
• Bit Depth: 24bit
• Idle Current: 500mA
• Dimensions in (LxWxH): 4.9 x 3.5 x 1.5
• Dimensions mm (LxWxH): 125 x 90 x 37
