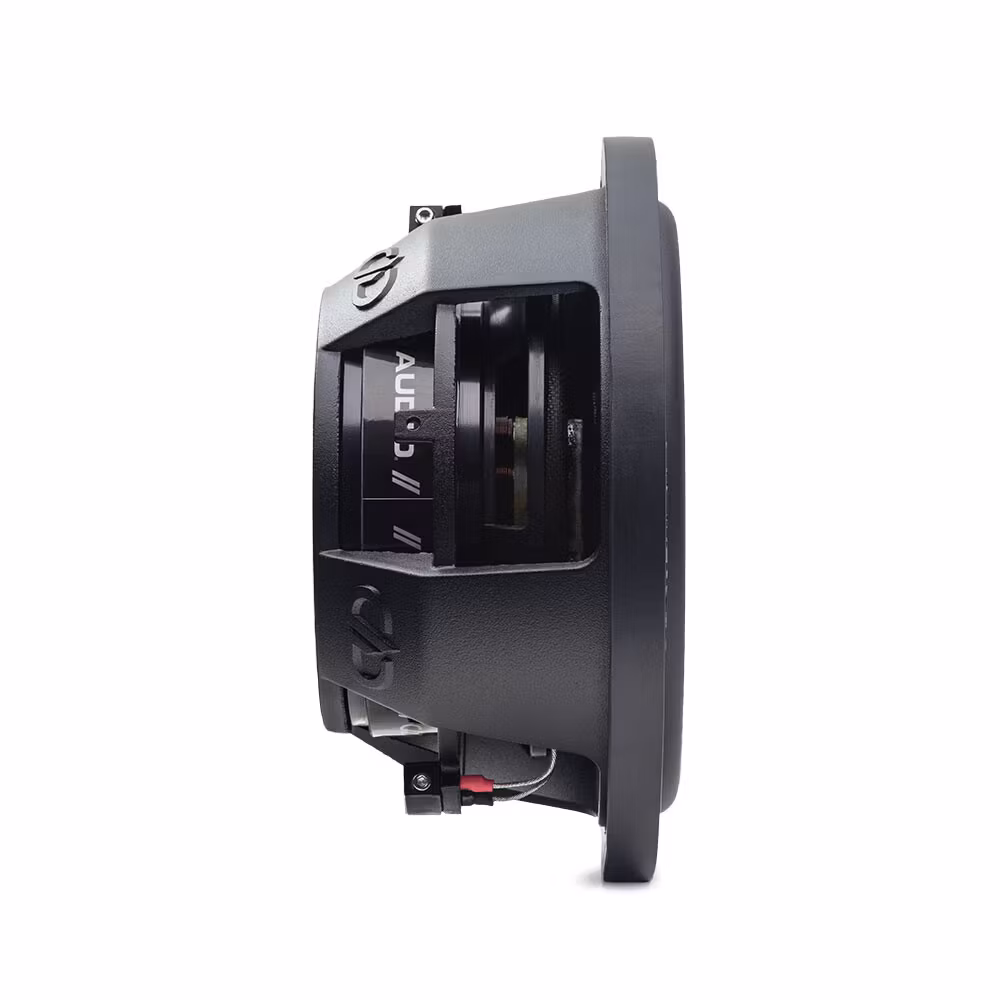

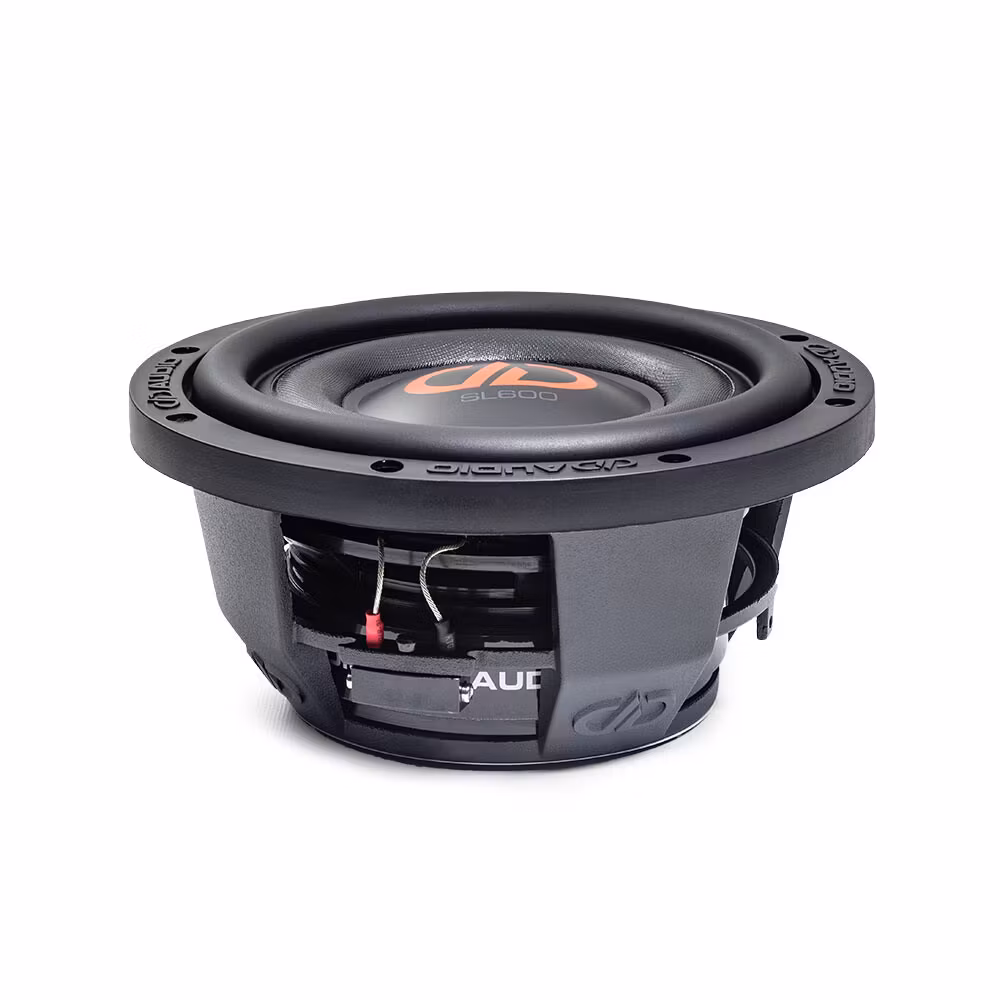

DD Audio SL608-D4

The new SL608 opens new opportunities in achieving great sound in space limited applications. The cast 8 inch DD frame houses a full size 134mm OD motor with a 25mm thick magnet combined with a deep bump back plate with 12mm Xmax. This state of the art subwoofer pushes 38mm excursion from a minimal 3.5 inch mounting depth.

The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.

Teknisk information

• Speaker Size (In): 8
• Watts RMS: 300
• Watts Peak: 900
• Impedance: D4
• VCD (In): 2
• Piston Diameter (In): 6.5
• Fs (Hz): 34
• Qms: 5.139
• Qes: 0.432
• Qts: 0.398
• Vas (Liters): 13.106
• dBSPL: 84
• Xmech (MM): 38
• Xmax (MM): 12
• Frame OD (In): 8.31
• Frame OD (MM): 211.074
• Frame OD w/Gasket (In): 8.5
• Frame OD w/Gasket (MM): 215.9
• Mounting Diameter (In): 7.37
• Mounting Diameter (MM): 187.198
• Mounting Depth (In): 3.5
• Mounting Depth (MM): 88.9
• Motor Diameter (In): 5.276
• Motor Diameter (MM): 134.0104
• Motor Depth (In): 1
• Motor Depth (MM): 25.4
• Magnet Weight (Oz): 50
• Magnet Weight (Gm): 1417.48
• Woofer Displacement (CuFt): 0.04
• Woofer Displacement (Liters): 1.133
• Sealed Enclosure (CuFt): 0.30 - 0.70
• Sealed Enclosure (Liters): 8.495 - 19.822
• Ported Enclosure (CuFt): 0.4 - 1.0
• Ported Enclosure (Liters): 11.327 - 28.317
• Shipping Weight (Lbs): 11
