DB-4518D1R Specifikationer

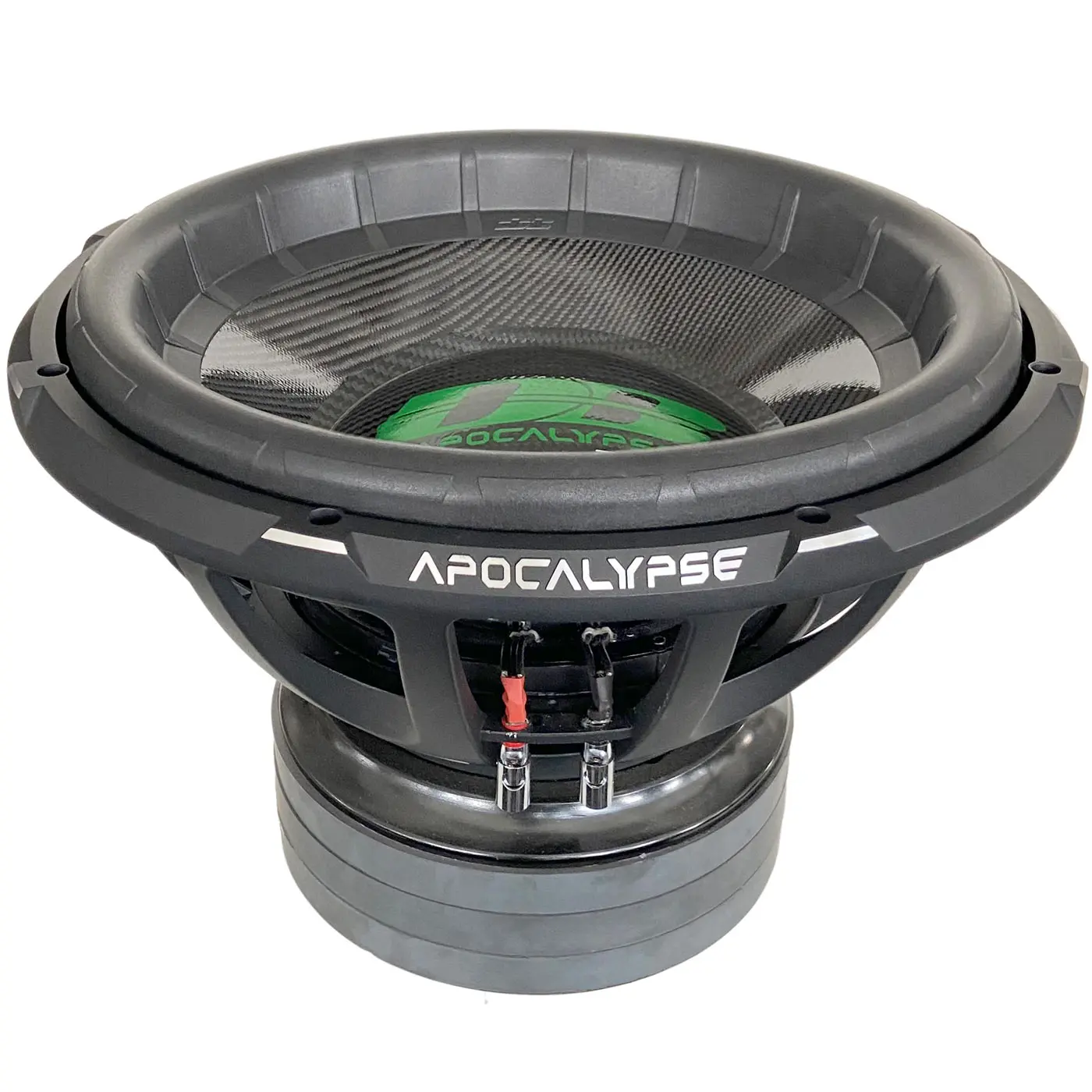

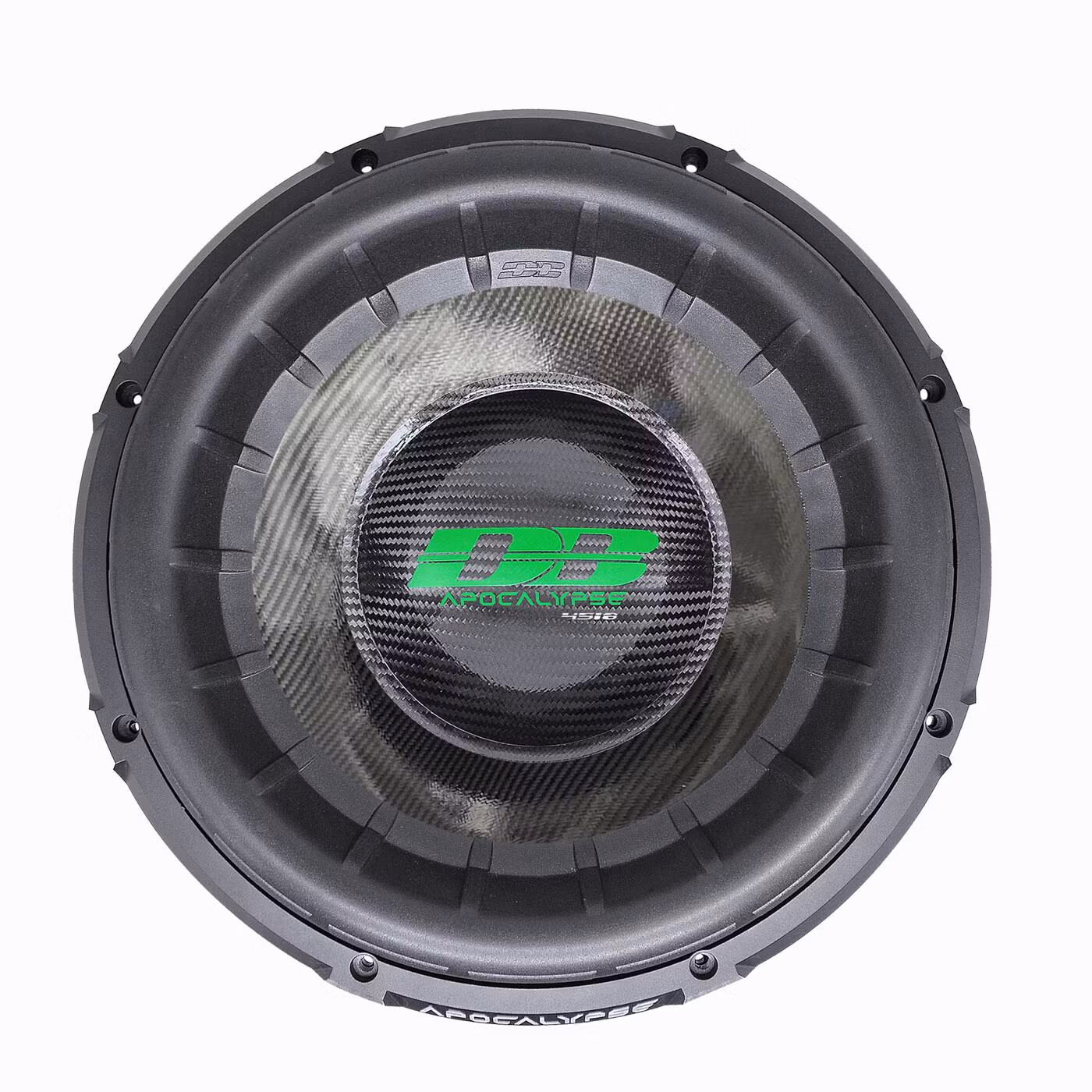

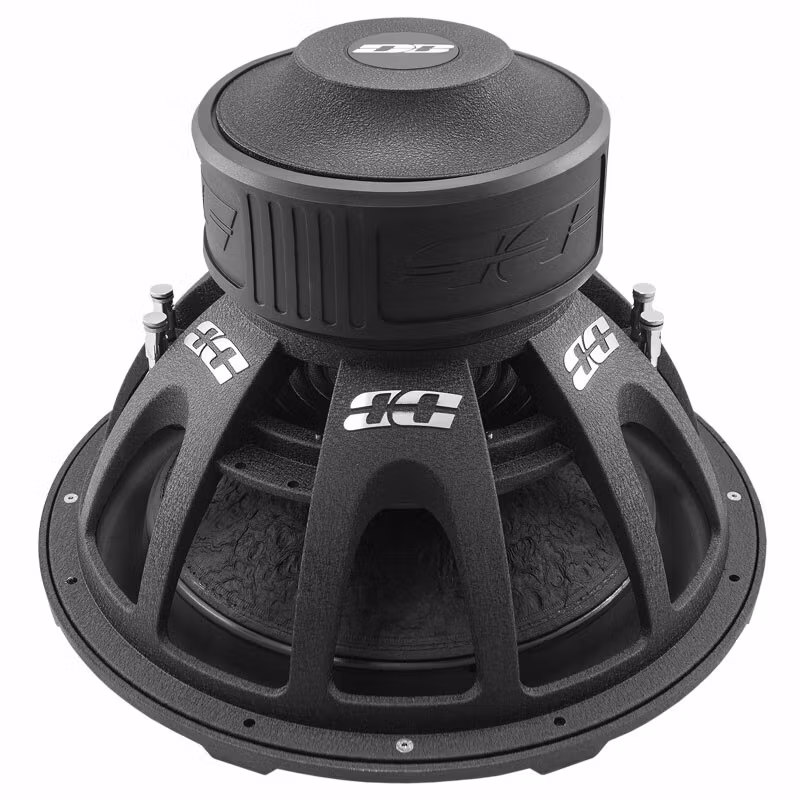

Deaf Bonce Apocalypse DB-4518D1R
Teknisk Information
| Storlek | 18″ |
|---|---|
| Impedans | Dual 1 Ohm |
| Effekttålighet RMS | 4500W |
| Effekttålighet MAX | 9000W |
| Effekttålighet PEAK | 25000W (kortvarigt) |
| Talspole | 4.5″ CCAR |
| Kon | 4-lager kolfiber |
| Magnet | Trippelstackad ferrit |
| Ram | Gjuten aluminium |
| Monteringsdjup | 327 mm |
| Monteringsdiameter | 462.3 mm |
| Yttre diameter | 479 mm |
| Vikt | 65 kg |
| Rekommenderad låda | 160 liter netto |
| Portarea | 450 cm² |
| Portlängd | 70 cm |
| Avstämning | 30 Hz |
Thiele/Small-parametrar
| Fs | 29 Hz |
|---|---|
| Qts | 0.33 |
| Vas | 149 liter |
| BL | 26.4 |
| Xmax | 22.5 mm |
| Xmech | 90 mm |
| SPL | 88.9 dB |
| Re | 2×0.8 Ohm |
