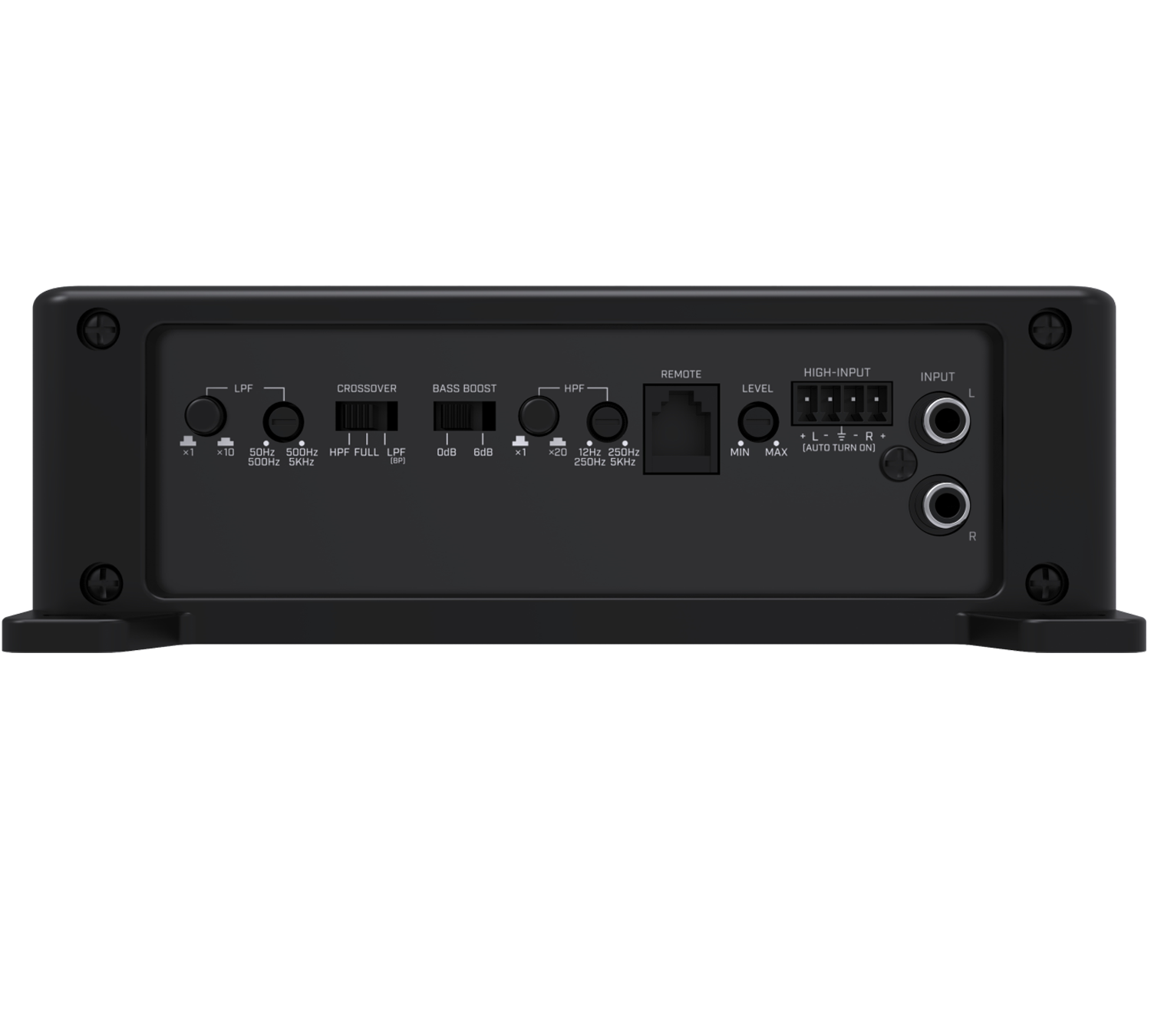

AI - SONIC S2 - A150.2

AI - SONIC S2 - A150.2

RMS POWER (2ohm) 12v 1%THD 2x225W RMS POWER (4ohm) 12v 1%THD 2 x 150W BRIDGED POWER(4ohm) 12v 1%THD 1 x450W T.H.D 0,02% 4ohm, 0.04 % 2ohm BANDWIDTH: 10Hz - 40KHz S/N RATIO (A - WEIGHTED): 105dB CHANNEL SEPARATION: 45dB INPUT SENSITIVITY :0.5 - 6V LOW PASS x1: 50Hz - 500Hz x10: 500Hz - 5KHz HIGH PASS x1: 12Hz - 250Hz x2Q: 250Hz - 5KHz BAND PASS(FRONT ): 12Hz - 5KHz CROSSOVER SLOPE: 12dB/oct BASS BOOST: 0/6dB(@45Hz) POWER FUSE: 2 x 30A HIGH - LEVEL VOLTAGE: 0.75 - 9V Cable fitting size: +12V = 20mm2 GND = 20mm2 REM = 6mm2 SPEAKER = 6mm2 Current Draw (Max): 52A DIMENSIONS W: 183mm / (7.2 IN) H: 60mm / (2.4 IN) L: 374mm / ( 14.7IN).
