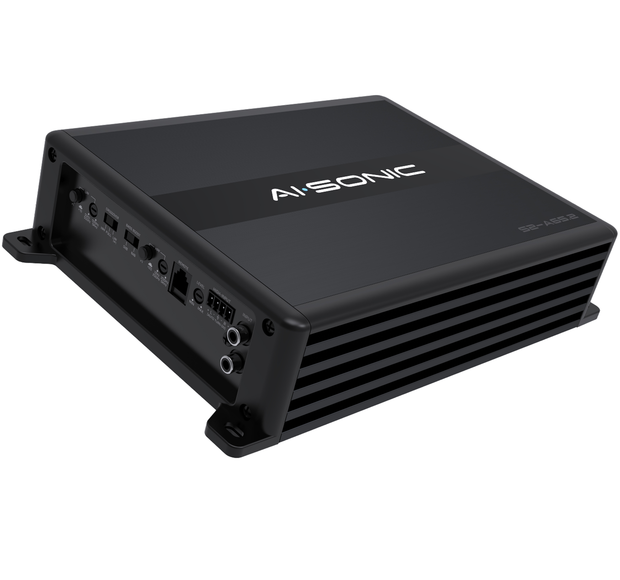

AI-SONIC S2-A65.2

RMS POWER (2ohm) 12v 1%THD 2x105W RMS POWER (4ohm) 12v 1%THD 2x70 W BRIDGED POWER(4ohm) 12v 1%THD 1x210W T.H.D 0,02% 4ohm, 0.04 % 2ohm BANDWIDTH: 10Hz-40KHz S/N RATIO (A-WEIGHTED): 105dB CHANNEL SEPARATION: 45dB INPUT SENSITIVITY: 0.5-6V LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz BAND PASS(FRONT ): 12Hz-5KH z CROSSOVER SLOPE: 12dB/oct BASS BOOST: 0/6dB(@45Hz) POWER FUSE: 1x30A HIGH-LEVEL VOLTAGE: 0.75-9V Cable fitting size: +12V = 20mm2 GND = 20mm2 REM = 6mm2 SPEAKER = 6mm2 Current Draw (Max): 25A DIMENSIONS W: 183mm / (7 .2IN) H: 60mm / (2.4IN) L: 274mm / (10.8 IN).
