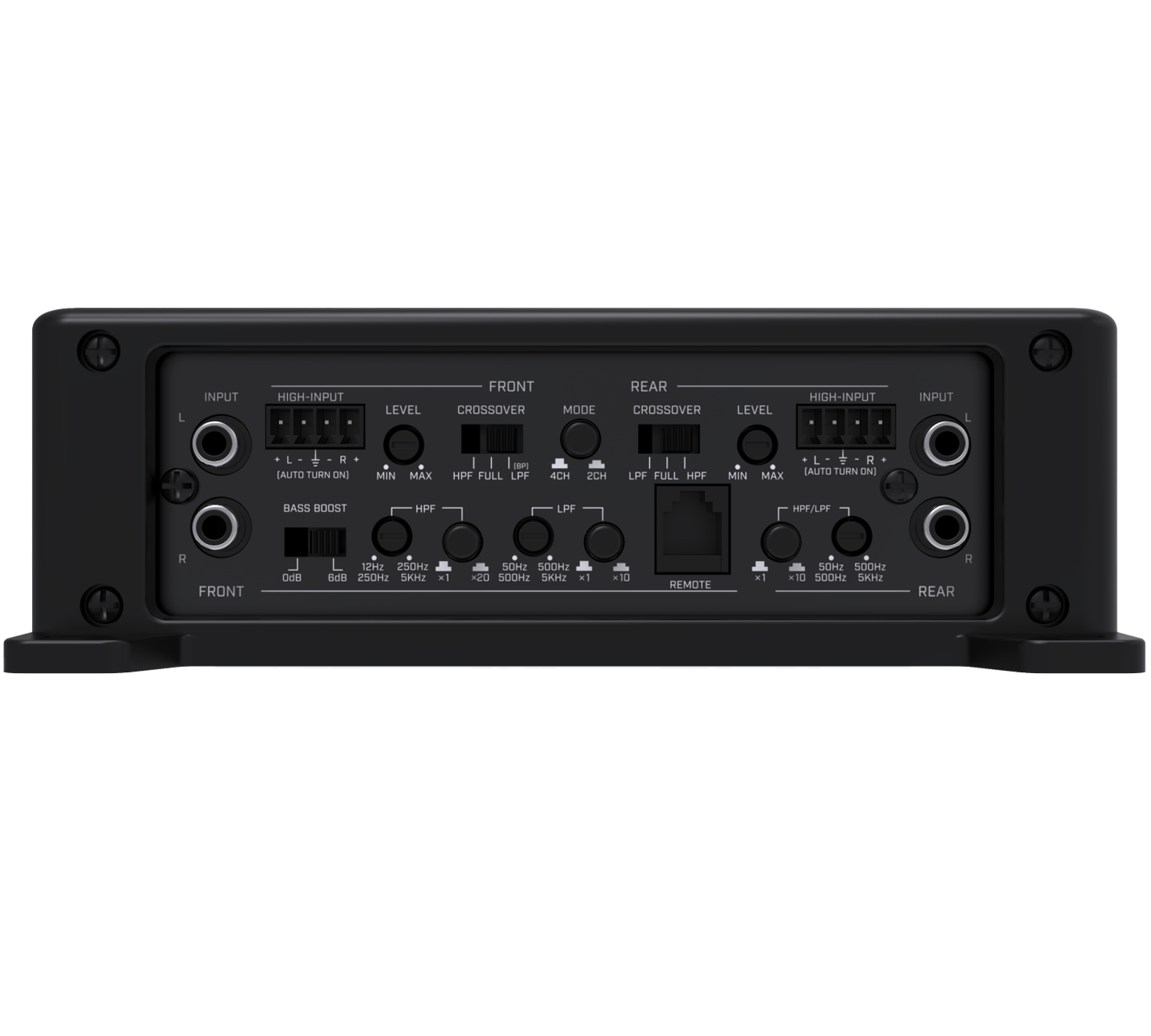

AI-SONIC S2-A100.4

RMS POWER (2ohm) 12v 1%THD 4 x 165W RMS POWER (4ohm) 12v 1%THD 4 x 110W BRIDGED POWER (4ohm) 12v 1%THD 2x330W T.H.D 0,02% 4ohm, 0.04 % 2ohm BANDWIDTH: 10Hz-40KHz S/N RATIO(A-WEIGHTED): 105dB INPUT SENSITIVITY: 0.5-6V LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz HIGH PASS: x1: 12Hz-250Hz (FRONT) x2Q: 250Hz-5KHz (FRONT) x1: 50Hz-500Hz(REAR) x10: 500Hz-5KHz(REAR) SUBSONIC: 12Hz -5KHz CROSSOVER SLOPE: 12dB/oct BASS BOOST: 0/6dB(@45Hz) MODE: 2CH/4CH POWER FUSE: 2x40A HIGH-LEVEL VOLTAGE: 0.75-9V Cable fitting size: +12V = 20mm2 GND = 20mm2 REM = 6mm2 SPEAKER = 6mm2 Current Draw (Max): 75A DIMENSIONS: W: 183mm / (7.2IN) H: 60mm / (2.4IN) L: 444mm / (17.5 IN).
