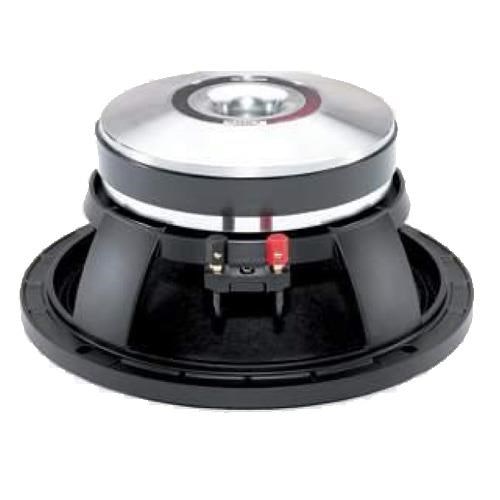

B&C 10MD26 - 8ohm

Specifications

Nominal Diameter

250 mm (10.0 in)

Nominal Impedance

8 Ω

Minimum Impedance

7.2 Ω

Nominal Power Handling1

350 W

Continuous power handling2

700 W

Sensitivity (1W/1m)3

100.0 dB

Frequency Range

80 - 4000 Hz

Voice Coil Diameter

76 mm (3.0 in)

Winding Material

Aluminium

Former Material

Glass Fibre

Winding Depth

11.0 mm (0.43 in)

Magnetic Gap Depth

8.0 mm (0.31 in)

Flux Density

1.45 T

Design

Surround Shape

Double Roll

Cone Shape

Exponential

Magnet Material

Ferrite

Spider

Single

Pole Design

T-Pole

Woofer Cone Treatment

None

Parameters4

Resonance Frequency

76 Hz

Re

5.8 Ω

Qes

0.22

Qms

4.8

Qts

0.21

Vas

20.0 dm3 (0.71 ft3)

Sd

320.0 cm2 (49.1 in2)

η₀

3.9 %

Xmax

± 1.5 mm

Xvar

± 4.5 mm

Mms

31.0 g

Bl

19.6 Txm

Le

1.2 mH

EBP

345 Hz

Mounting and Shipping Info

Overall Diameter

262 mm (10.3 in)

Bolt Circle Diameter

245 mm (9.6 in)

Baffle Cutout Diameter

230.0 mm (8.8 in)

124 mm (4.9 in)

14 mm (0.55 in)

2.6 dm3 (0.09 ft3)

Net Weight

7.3 kg (16.1 lb)

Shipping Units

1

Shipping Weight

7.9 kg (17.4 lb)

Shipping Box

295x314x175 mm (11.61x12.36x6.89 in)

Service Kit

Recone kit

RCK010MD268
