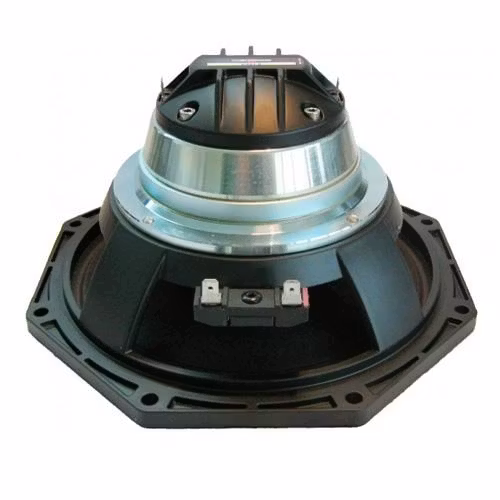

B&C 8CXN51 8" Professional Neodymium Coaxial Speaker 100 x 100 8 Ohm
B&C's 8CXN51 8" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The 8CXN51 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, stage monitor wedges, studio monitors, or high-efficiency home audio systems. Power handling is 500 watts continuous program, which combined with the driver's high efficiency results in very good maximum output.
The B&C 8CXN51 8" coaxial speaker's optimized driver alignment delivers the coherency and focus expected from a point source design. In addition to this superior articulation and accuracy, the 8CN51 requires very little baffle area compared to separate LF and HF components.
Product Details |
|---|
| Brand | B&C Speakers |
| Model | 8CXN51 |
| Part Number | 294-5764 |
| UPC | 848864008813 |
| Unit of Measure | Each |
| Weight | 7 |
Product Specifications |
|---|
| Nominal Diameter | 8" |
| Bolt Circle Diameter | 8.3 |
| Moving Mass Of Diaphragm (Mmd) | 22 |
| Power Handling (RMS) | 225 Watts |
| Power Handling (MAX) | 500 Watts |
| Impedance | 8? |
| Frequency Response | 70 to 18,000Hz |
| Sensitivity | 97dB 2.83V/1m |
| Voice Coil Diameter | 2" |
Thiele-Small Parameters |
|---|
| Resonant Frequency (Fs) | 68Hz |
| DC Resistance (Re) | 5? |
| Voice Coil Inductance (Le) | 0.9mH |
| Mechanical Q (Qms) | 4.7 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.27 |
| Compliance Equivalent Volume (Vas) | 0.6ft³ |
| BL Product (BL) | 12.6T·m |
| Maximum Linear Excursion (Xmax) | 6mm |
| Surface Area of Cone (Sd) | 220cm² |
Materials of Construction |
|---|
| Cone Material | Coated Paper |
| Voice Coil Wire Material | Aluminum |
| Magnet Material | Neodymium |
Mounting Information |
|---|
| Overall Outside Diameter | 8.8" |
| Baffle Cutout Diameter | 7.4" |
| Depth | 4.4" |
| # Mounting Holes | 8 |
