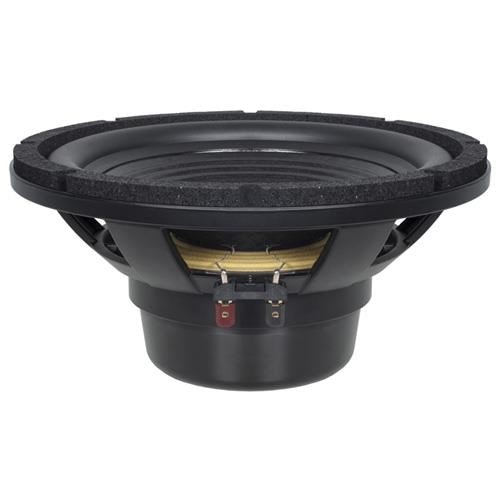

B&C 12BG100 - 8ohm

/Features

2000 W continuous program power capacity

100 mm (4 in) copper voice coil

40 - 1000 Hz response

93 dB sensitivity

FEA optimized Neodymium magnet assembly

Aluminium demodulating ring for very low distortion

Double silicone spider with optimized compliance

Ventilated voice coil gap for reduced power compression

Specifications

Nominal Diameter

320 mm (12.0 in)

Nominal Impedance

8 Ω

Minimum Impedance

5.8 Ω

Nominal Power Handling1

1000 W

Continuous power handling2

2000 W

Sensitivity (1W/1m)3

93.0 dB

Frequency Range

40 - 1000 Hz

Voice Coil Diameter

100 mm (4.0 in)

Winding Material

Copper

Former Material

Glass Fibre

Winding Depth

27.0 mm (1.05 in)

Magnetic Gap Depth

11.0 mm (0.43 in)

Flux Density

1.15 T

Design

Surround Shape

Roll

Cone Shape

Radial

Magnet Material

Neodymium Inside Slug

Spider

Double Silicone

Pole Design

T-Pole

Woofer Cone Treatment

TWP Waterproof Both Sides

Recommended Enclosure

40.0 dm3 (1.41 ft3)

Recommended Tuning

40 Hz

Parameters4

Resonance Frequency

39 Hz

Re

5.1 Ω

Qes

0.35

Qms

6.8

Qts

0.33

Vas

41.0 dm3 (1.45 ft3)

Sd

522.0 cm2 (80.9 in2)

η₀

0.7 %

Xmax

± 10.5 mm

Xvar

± 14.0 mm

Mms

152.0 g

Bl

23.0 Txm

Le

1.6 mH

EBP

111 Hz

Mounting and Shipping Info

Overall Diameter

319 mm (12.5 in)

Bolt Circle Diameter

299 mm (11.8 in)

Baffle Cutout Diameter

281.0 mm (11.1 in)

Depth

137 mm (5.4 in)

Flange and Gasket Thickness

13 mm (0.5 in)

Air Volume Occupied by Driver

2.7 dm3 (0.09 ft3)

Net Weight

8.2 kg (18.0 lb)

Shipping Units

1

Shipping Weight

9.1 kg (20.06 lb)

Shipping Box

360x360x200 mm (14.17x14.17x7.87 in)

Service Kit

RCK12BG1008

Discover more

12 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.

2Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

3Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.

4Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
