Product Details | |
|---|---|

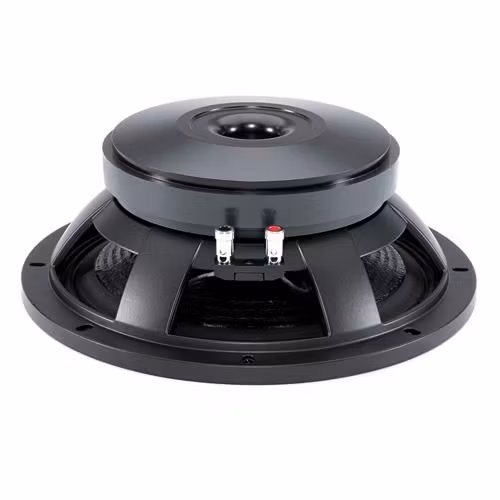

| Brand | B&C Speakers |
| Model | 12PS100 |
| Part Number | 294-665 |
| UPC | 844632002120 |
| Unit of Measure | Each |
| Weight | 20.7 |
Product Specifications | |
|---|---|
| Nominal Diameter | 12" |
| Bolt Circle Diameter | 11.8 |
| Moving Mass Of Diaphragm (Mmd) | 106 |
| Power Handling (RMS) | 700 Watts |
| Power Handling (MAX) | 1400 Watts |
| Impedance | 8? |
| Frequency Response | 45 to 1,000Hz |
| Sensitivity | 93dB 2.83V/1m |
| Voice Coil Diameter | 4" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 44Hz |
| DC Resistance (Re) | 5.3? |
| Voice Coil Inductance (Le) | 2mH |
| Mechanical Q (Qms) | 3.9 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.27 |
| Compliance Equivalent Volume (Vas) | 1.6ft³ |
| BL Product (BL) | 22.5T·m |
| Maximum Linear Excursion (Xmax) | 8mm |
| Surface Area of Cone (Sd) | 531cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Fiberglass |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 12.5" |
| Baffle Cutout Diameter | 11.1" |
| Depth | 4.6" |
| # Mounting Holes | 8 |
