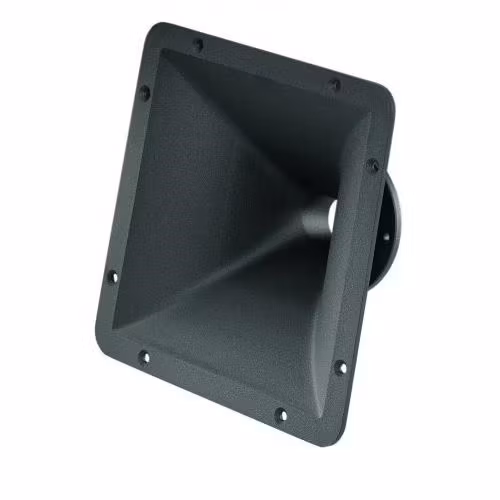

B&C ME90

EN
Specifications

Throat Diameter
36 mm (1.4 in)
Nominal Coverage Horizontal
80 °
Nominal Coverage Vertical
60 °
Cutoff Frequency
0.9 kHz
Material
Cast Aluminium
Dimensions
270x270x138 mm (10.6x10.6x5.4 in)
Mounting and Shipping Info
Baffle Cutout Dimension
225x225 mm (8.86x8.86 in)
Air Volume Occupied by Driver
0.42 dm3 (0.01 ft3)
Net Weight
1.4 kg (3.1 lb)
Shipping Units
1
Shipping Weight
2.0 kg (4.41 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Other Details
4x 6.5 mm (0.255 in) holes 90° on 102 mm (4 in) diameter
