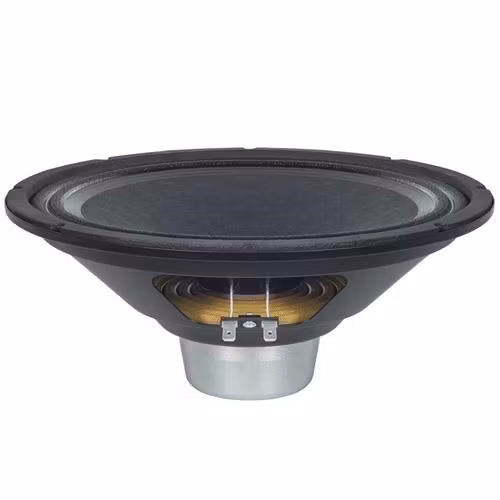

B&C's CL Series stamped metal frame 10CL51 10" neodymium woofers perform almost identically to B&C's lightweight HPL Series, but at a significantly lower price. They are aimed at the OEM builder, for a wide variety of purposes including premium quality plastic speaker cabinets, bass guitar enclosures, or any system that can benefit from a significant reduction in weight. The 10CL51 offers an excellent alternative to similar performance ceramic magnet drivers.
Product Details
|
|---|
Brand
| B&C Speakers
|
Model
| 10CL51
|
Part Number
| 294-693
|
UPC
| 844632086205
|
Unit of Measure
| Each
|
Weight
| 4
|
Product Specifications
|
|---|
Nominal Diameter
| 10"
|
Power Handling (RMS)
| 150 Watts
|
Power Handling (MAX)
| 300 Watts
|
Impedance
| 8Ω
|
Frequency Response
| 60 to 4,000Hz
|
Sensitivity
| 96dB 2.83V/1m
|
Voice Coil Diameter
| 2"
|
Thiele-Small Parameters
|
|---|
Resonant Frequency (Fs)
| 60Hz
|
DC Resistance (Re)
| 5.2Ω
|
Voice Coil Inductance (Le)
| 0.8mH
|
Mechanical Q (Qms)
| 3.8
|
Electromagnetic Q (Qes)
| 0.44
|
Total Q (Qts)
| 0.39
|
Compliance Equivalent Volume (Vas)
| 1.1ft³
|
BL Product (BL)
| 12T·m
|
Diaphragm Mass Inc. Airload (Mms)
| 31.5g
|
Maximum Linear Excursion (Xmax)
| 5.5mm
|
Surface Area of Cone (Sd)
| 320cm²
|
Materials of Construction
|
|---|
Cone Material
| Paper
|
Surround Material
| Cloth
|
Voice Coil Wire Material
| Aluminum
|
Voice Coil Former
| Fiberglass
|
Magnet Material
| Neodymium
|
Mounting Information
|
|---|
Overall Outside Diameter
| 10.1"
|
Baffle Cutout Diameter
| 9.7"
|
Depth
| 4.25"
|
# Mounting Holes
| 8
|
Parts Express Staff Recommended Enclosure Volume
|
|---|
Sealed Volume
| 0.45ft³
|
Sealed F3
| 121.8Hz
|
Vented Volume
| 1.13ft³
|
Vented F3
| 58.8Hz
|
