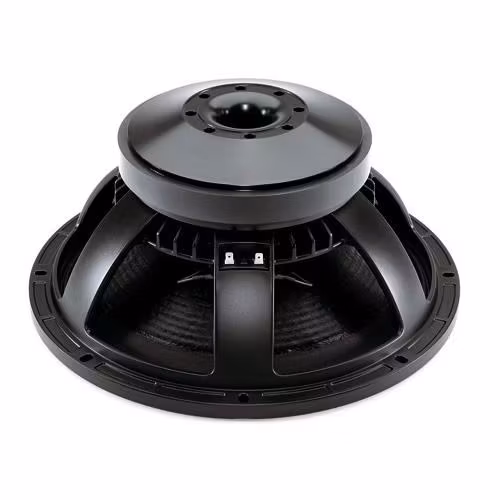

B&C Speakers 15TBX100-8

Product Details

BrandB&C Speakers

Model15TBX100

Part Number294-670

UPC844632002175

Unit of MeasureEach

Weight30.4

Product Specifications

Nominal Diameter15"

Bolt Circle Diameter14.7

Power Handling (RMS)1000 Watts

Power Handling (MAX)2000 Watts

Impedance8Ω

Frequency Response35 to 1,500Hz

Sensitivity96dB 2.83V/1m

Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz

DC Resistance (Re)5.1Ω

Voice Coil Inductance (Le)1.6mH

Mechanical Q (Qms)5.2

Electromagnetic Q (Qes)0.3

Total Q (Qts)0.28

Compliance Equivalent Volume (Vas)3.8ft³

BL Product (BL)25.5T·m

Diaphragm Mass Inc. Airload (Mms)163g

Maximum Linear Excursion (Xmax)9mm

Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialPaper

Surround MaterialCloth

Voice Coil Wire MaterialCopper

Voice Coil FormerFiberglass

Basket / Frame MaterialCast Aluminum

Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"

Baffle Cutout Diameter13.9"

Depth7.1"

# Mounting Holes8
