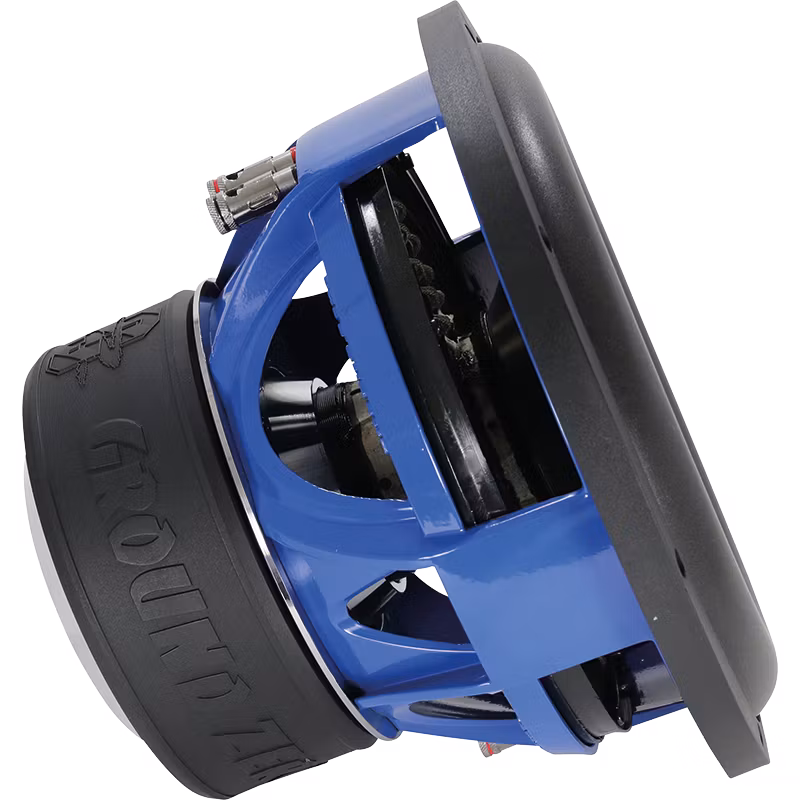

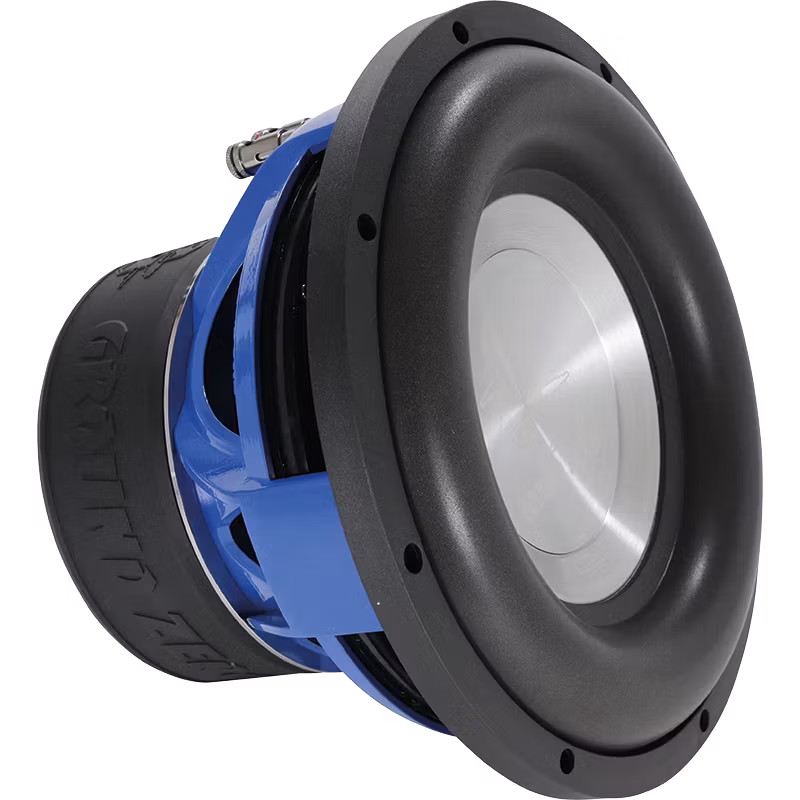

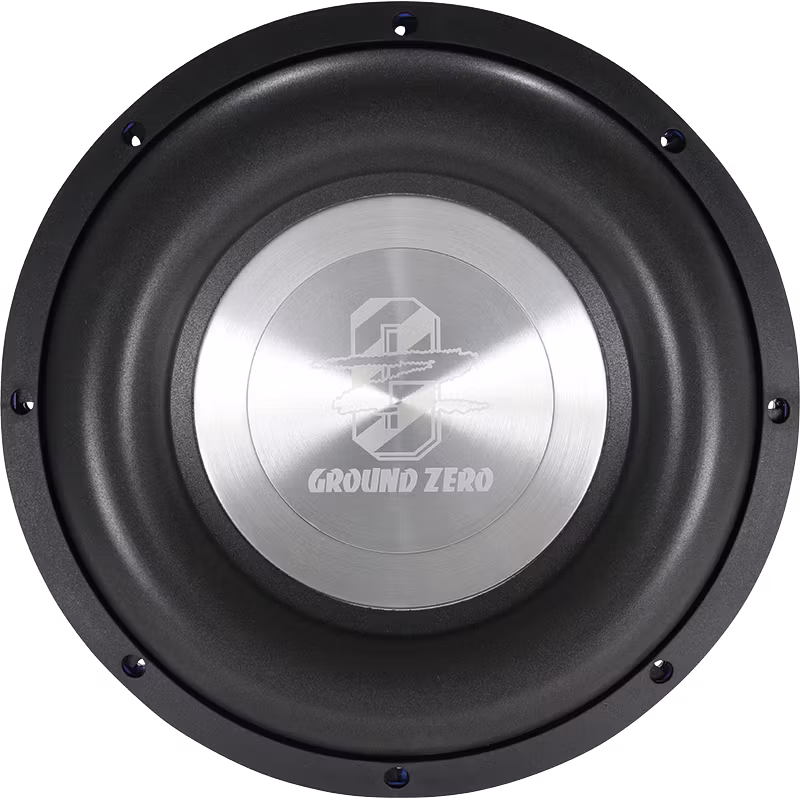

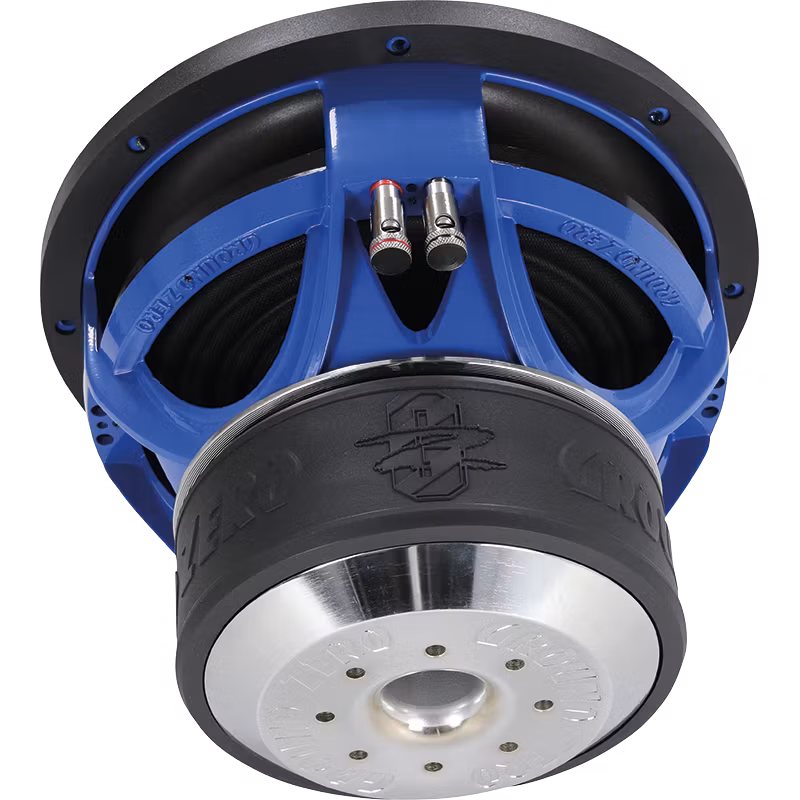

Ground Zero GZNW 12X-D2

With GZNW 12X-D2 Ground Zero resurrects an old legend!

Combining the looks of the legendary blue GZNW 12X with modern subwoofer technology and years of experience, Ground Zero creates the long awaited successor.

Features: - High performance long excursion subwoofer - Klippel optimized - Aluminum cone - High-roll surround - Solid blue aluminum cast basket - 75mm / 3″ 4-layer CCA round wire voice coil - 4-layer polycotton spider - Aluminum dust cap

Teknisk information

• Voice coil diameter (mm / inch) 75 / 3”
• Impedance (Ohm) 2 x 2
• Re (Ohm) 1.04 (parallel)
• FS (Hz) 21.8
• Qms 7.76
• Qes 0.32
• Qts 0.33
• Vas (Liter / cu.ft.) 35 / 1.24
• Mms gr 438.35
• Xmax (mm / inch) 62 / 2.44
• SPL (1w/1m) 83
• BL (Tesla – m) 14.3
• Power handling* (Watts RMS/SPL) 2000 / 3500
• Recommended amplifier power
• 1500 – 3500 WRMS @4 ohms (1 ohm)
• Recommended enclosure / Suositeltu kotelo:
• 60 Liter netto
• Port 40 x 250 cm² / 1.57 x 9.84”
• Port length* 257 mm / 10.11”
• Frequency 32 Hz
