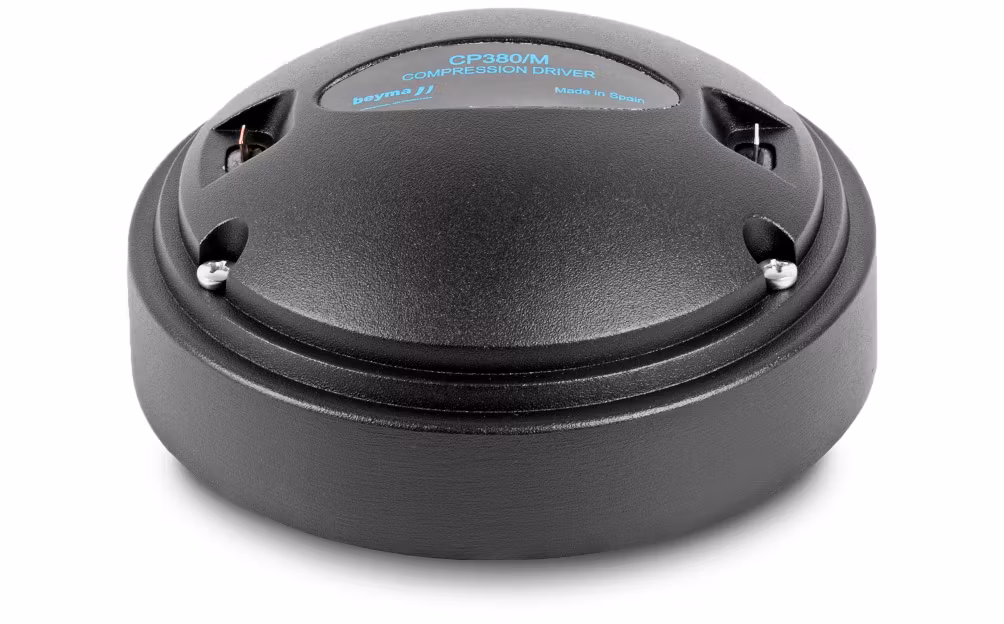

Beyma CP380M - 8OHM

  • 2 356 kr
Tillgänglig
Artikelnummer: CP380M
Dela

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Throat diameter

25.4 mm 1 in

Nominal impedance

8 Ohm

Minimum impedance

5.2 ohm

Re

4.3 ohm

Power capacity

70 W AES above 1.5 kHz

Program power

140 W above 1.5 kHz

Sensitivity

107 dB 1W / 1m @ ZN acoplado a bocina TD-250

Frequency range

800-20000 Hz

Recom. crossover frequency

1.2 kHz or higher (12dB/oct min slope)

Voice coil diameter

44.4 mm 1.75 in

Flux density

2 T

BL factor

7 N/A

Diaphragm material

Polyester

CONSTRUCTION DETAILS

External diameter

146 mm 5.7 in

Depth

69 mm 2.7 in

Mounting

Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.

Net weight

3.2 kg 7.2 lb

Total weight

3.4 kg 7.5 lb

Magnet

Ferrite
