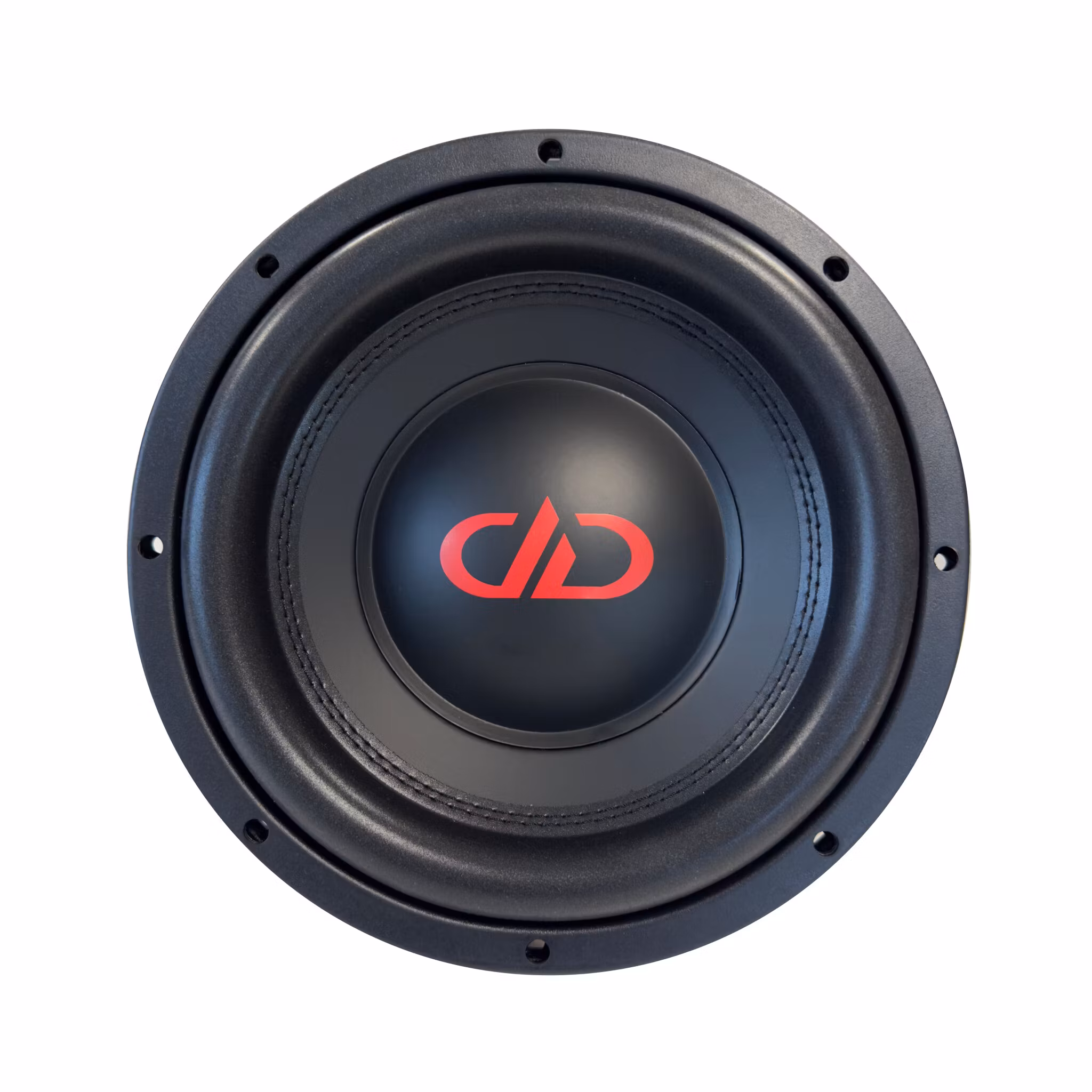

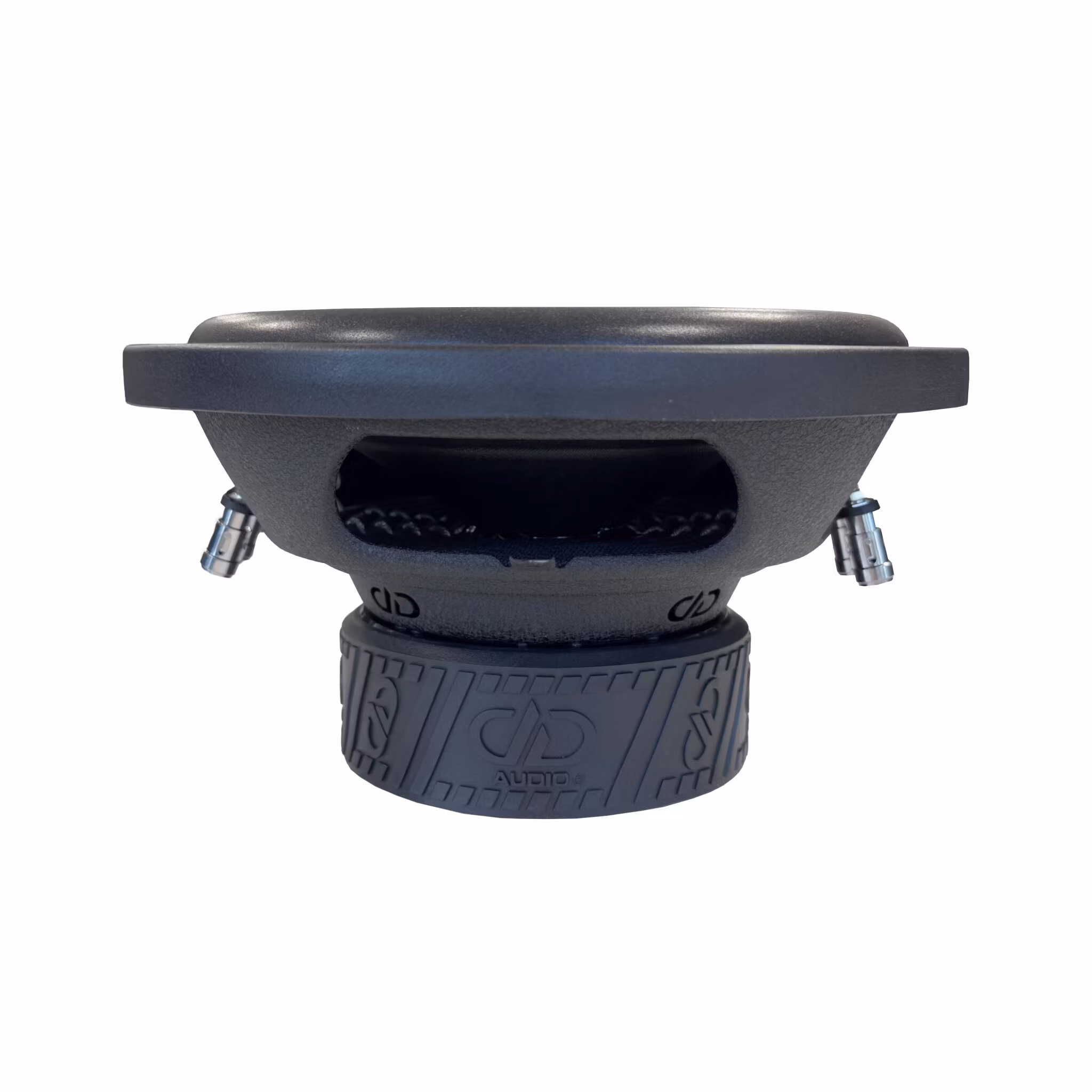

DD Audio 210e-D2

New 200e series offers excellent performance at affordable prices.

The 200e series is designed to provide some satisfying bass on as little as 100-300 Watts. Enhancing these sub’s output efficiency is their smooth, wide bandwidth. They’re tuned to work well in sealed enclosures as well as compact vented designs.

Teknisk information

• Speaker Size (In): 10
• Watts RMS: 350
• Watts Peak: 1100
• Impedance: D2
• VCD (In): 2
• Fs (Hz): 35
• Qms: 11.107
• Qes: 0.53
• Qts: 0.506
• Vas (Liters): 32.495
• BL (TM): 20
• Xmech (MM): 30
• Xmax (MM): 10
• Frame OD (In): 10.12
• Frame OD w/ Gasket (In): 10.25
• Mounting Diameter (In): 9
• Mounting Depth (In): 4.75
• Motor Diameter (In): 1.7
• Motor Depth (In): 5.27
• Magnet Weight (Oz): 55
• Woofer Displacement (CuFt): 0.05
• Sealed Enclosure (CuFt): 0.5 - 0.7
• Ported Enclosure (CuFt): 0.5 - 1.25
• Shipping Weight (Lbs): 12.5
