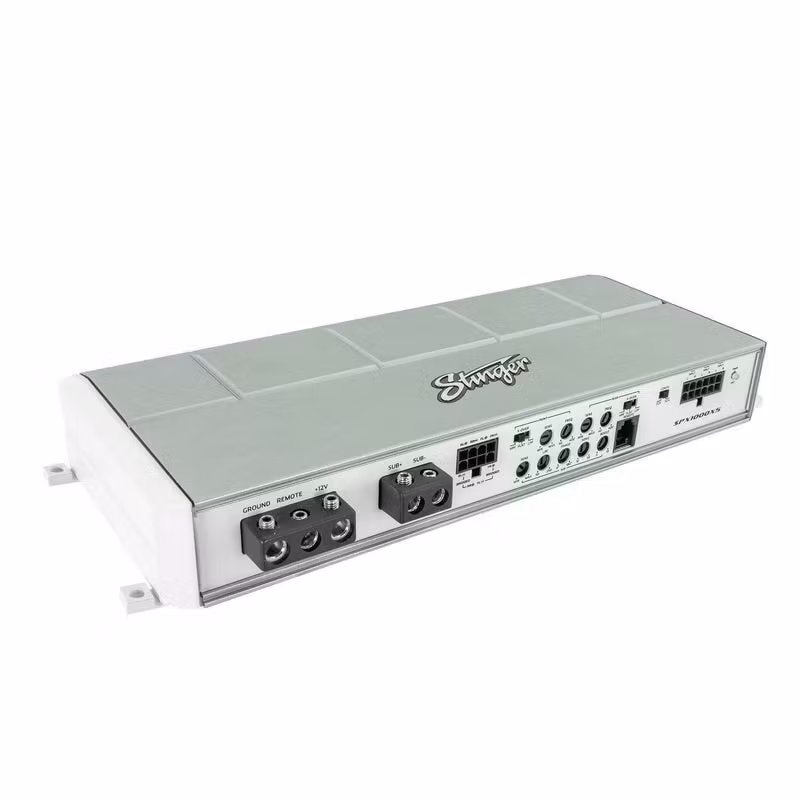

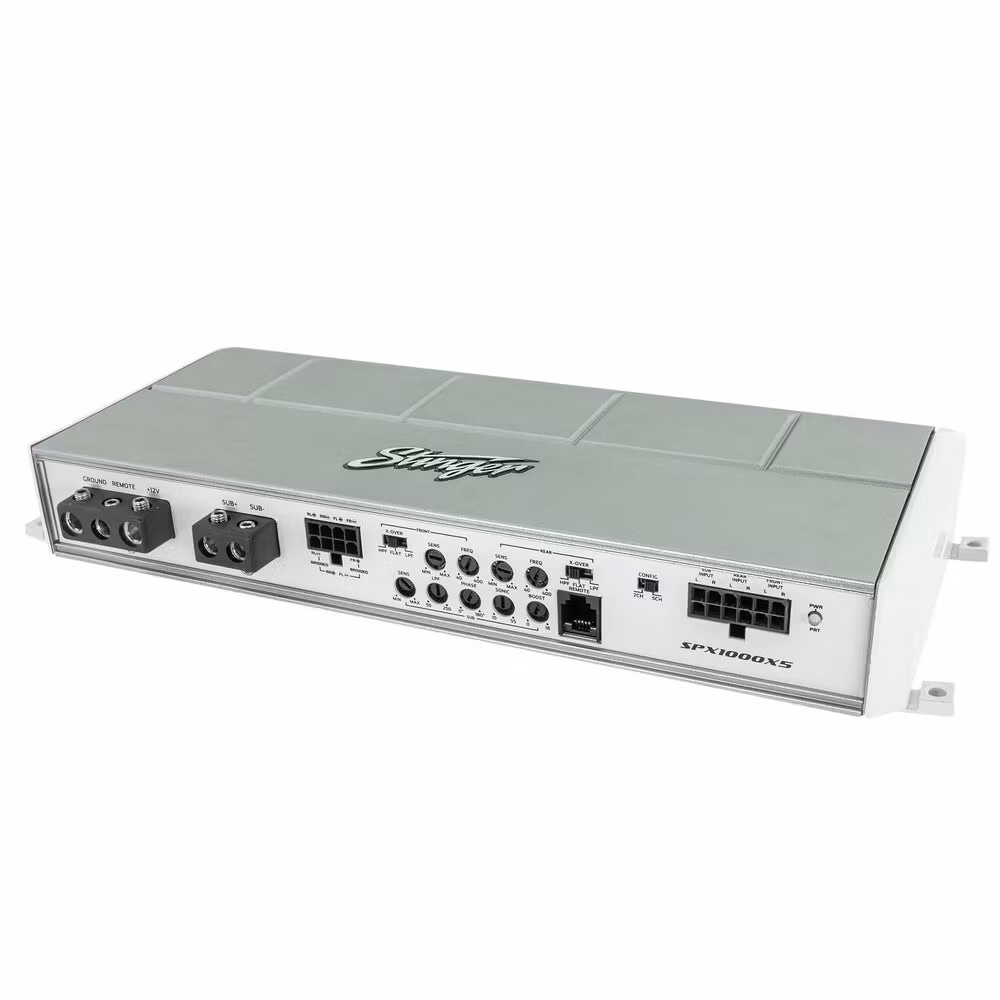

Micro 5-Channel 1000 Watt Marine Amplifier

The perfect single amp solution for Marine, the SPX1000X5; a compact, weather-resistant, full-range Class D amplifier that delivers massive power with minimal size and extreme durability, built to withstand harsh marine environment.

SPX1000X5 marine-grade 5ch, 1000watt amplifier features conformal coated PCB’s to reject salt and fog intrusion and to ensure season after season of listening enjoyment. Corrosion-resistant aluminum chassis, nickel-plated termination with stainless hardware make housing to the connections bulletproof to the elements.

Features

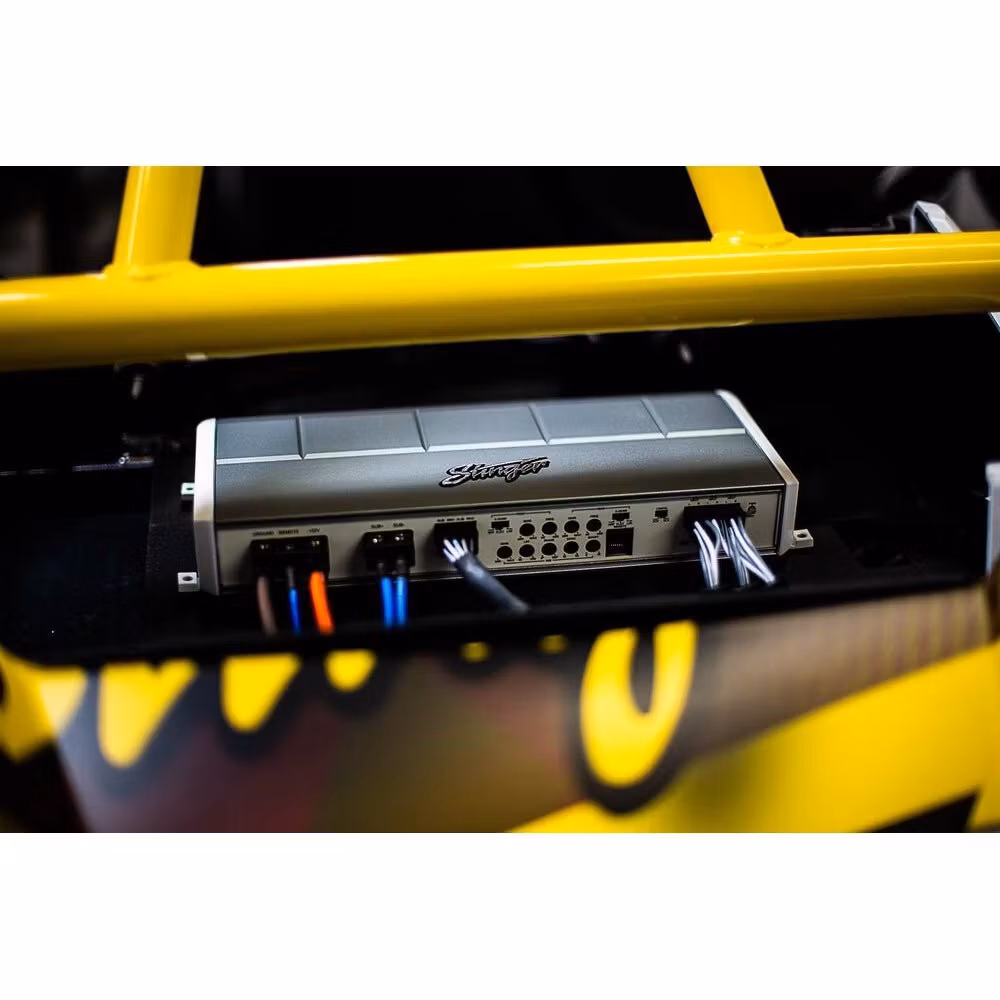

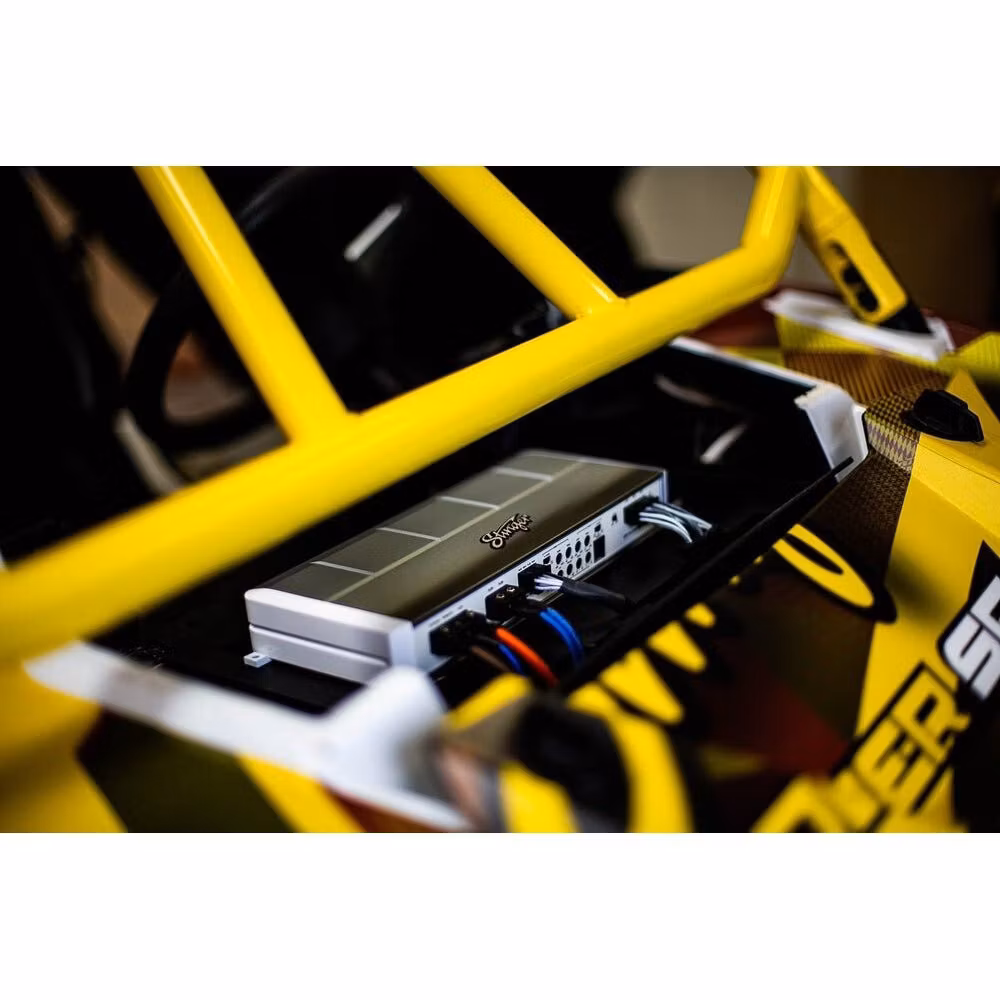

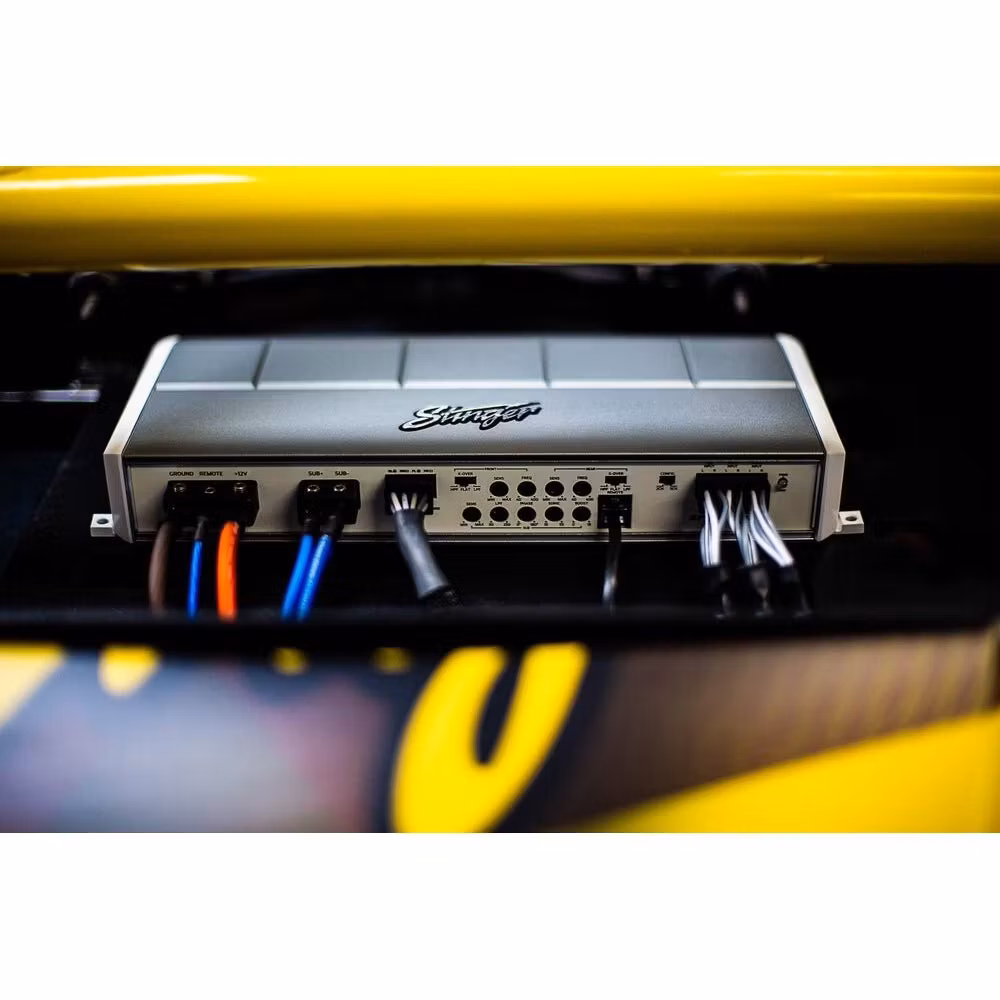

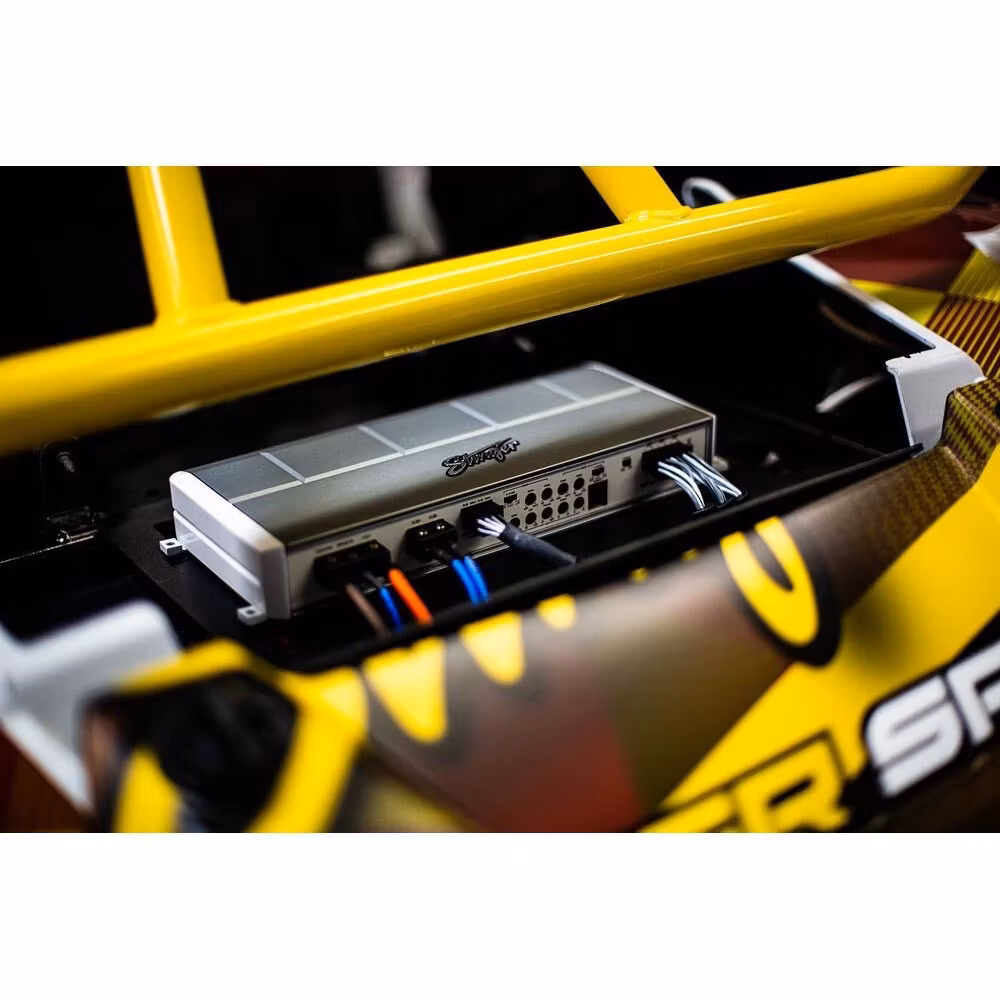

• Perfect for motorcycles, ATV, marine and mobile applications
• Small footprint low profile design
• IPX-4/5 weather resistant design with conformal coated PCB
• Full range Class D
• Unregulated power supply
• High Level or Low Level inputs
• Diecast endcaps with removable mounting feet
• Sub level control included
• Aluminum Chassis
• Corrosion resistant Nickel-plated connections and stainless hardware
• Switchable 2 or 5ch inputs with no jumpers needed
• Onboard HP/LP/Bypass Crossovers Channels 1-4
• Onboard 50-250Hz LP Crossover with 0-180⁰ Phase adjustment and up to 18dB of Bass Boost (Channel 5)

Specification

• Frequency Response: ± 1dB from 20Hz to 20kHz
• Signal to Noise Ratio: >110dB
• High and Low Pass Crossovers: 12dB per Octave
• Low Pass Crossover Range: 40Hz to 400Hz
• High Pass Crossover Range: 40Hz to 400Hz
• Sub Crossover Range: 50Hz to 250Hz
• Input Range: 200 millivolts to 12 volts
• Typical Efficiency: 80%
• Damping Factor: Greater than 200
• Recommended Fuse Size: 80 amp
• Power/Ground Wire Size: 8 Gauge

Documentation

User manual

Vehicle application

Universal
