file_downloadDOWNLOAD DATASHEET
TECHNOLOGIES
MALT CrossMEET THE LEX FERRITE SERIESTECHNICAL SPECIFICATIONS
Nominal impedance8 OhmPower capacity1000 W AESNominal diameter300 mm 12 inSensitivity95 dB 1 W/1 m @ ZNMinimum impedance7.6 ohmFrequency range50-1500 HzProgram power2000 WRecommended enclosure volume50 lVoice coil diameter88.9 mm 3.5 inBL factor24.6 N/AMoving mass0.118 kgWinding length27 mmAir gap height12 mmXdamage pp51 mmPARAMETERS THIELE & SMALL
Fs49 HzRe5.4 ohmQms3.6Qes0.32Qts0.3Vas38.4 lCms89 µm / NRms10.1 kg/sEfficiency %1.3Sd0.055m²Xmax11 mmVd605 cm³Le @1 kHz1.7 mHCONSTRUCTION DETAILS
Depth166 mm 6.5 inNet weight10.4 kg 22.9 lbTotal weight11.1 kg 24.4 lbMagnetFerriteTECHNOLOGIES
MALT Cross

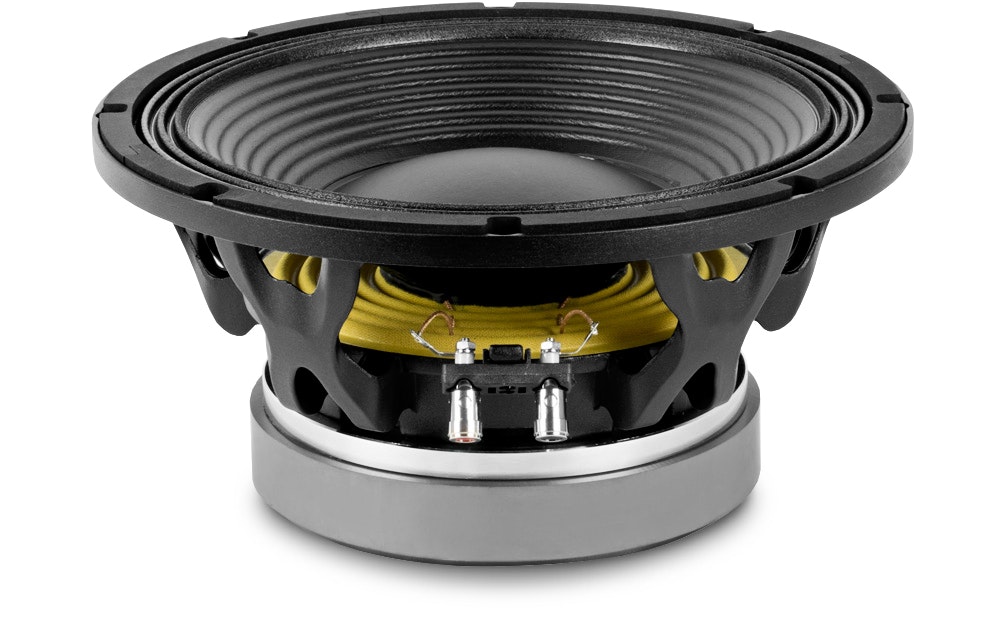

MEET THE LEX FERRITE SERIES
TECHNICAL SPECIFICATIONS
Nominal impedance
8 Ohm
Power capacity
1000 W AES
Nominal diameter
300 mm 12 in
Sensitivity
95 dB 1 W/1 m @ ZN
Minimum impedance
7.6 ohm
Frequency range
50-1500 Hz
Program power
2000 W
Recommended enclosure volume
50 l
Voice coil diameter
88.9 mm 3.5 in
BL factor
24.6 N/A
Moving mass
0.118 kg
Winding length
27 mm
Air gap height
12 mm
Xdamage pp
51 mm
PARAMETERS THIELE & SMALL
Fs
49 Hz
Re
5.4 ohm
Qms
3.6
Qes
0.32
Qts
0.3
Vas
38.4 l
Cms
89 µm / N
Rms
10.1 kg/s
Efficiency %
1.3
Sd
0.055m²
Xmax
11 mm
Vd
605 cm³
Le @1 kHz
1.7 mH
CONSTRUCTION DETAILS
Depth
166 mm 6.5 in
Net weight
10.4 kg 22.9 lb
Total weight
11.1 kg 24.4 lb
Magnet
Ferrite
