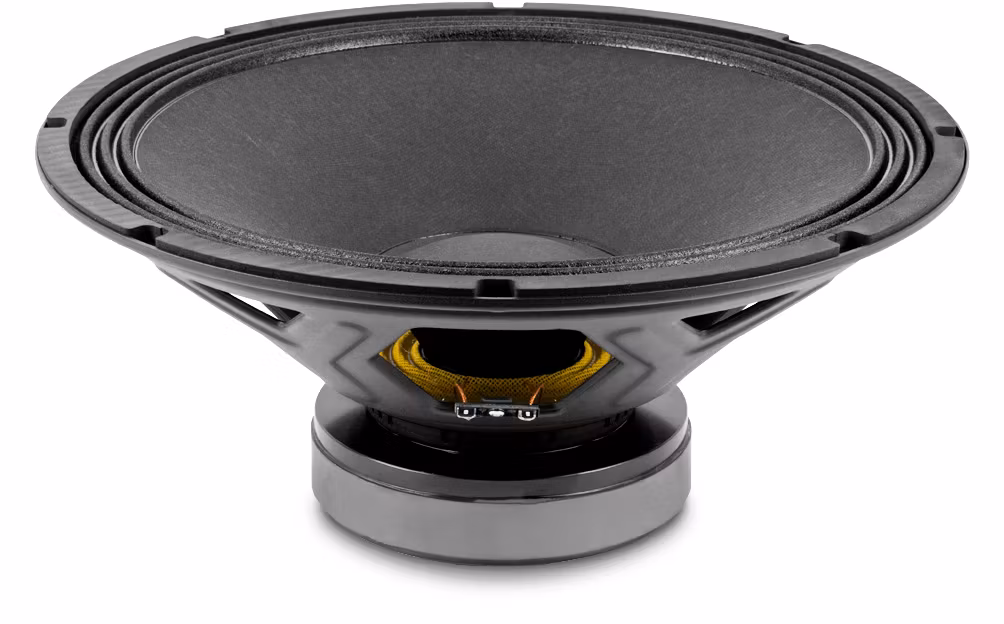

Beyma 15MCS500 - 8ohm

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

500 W AES

Nominal diameter

380 mm 15 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

7.2 ohm

Frequency range

50-4000 Hz

Program power

1000 W

Voice coil diameter

63.5 mm 2.5 in

BL factor

17.6 N/A

Moving mass

0.098 kg

Winding length

19.5 mm

Air gap height

9.5 mm

Xdamage pp

40 mm

PARAMETERS THIELE & SMALL

Fs

46 Hz

Re

5.6 ohm

Qms

7.8

Qes

0.5

Qts

0.48

Vas

134 l

Cms

122 µm / N

Rms

3.6 kg/s

Efficiency %

2.5

Sd

0.088 m²

Xmax

8 mm

Vd

704 cm³

Le @1 kHz

1.1 mH

CONSTRUCTION DETAILS

Depth

172 mm 6.77 in

Net weight

6.2 kg 13.67 lb

Total weight

7.2 kg 15.87 lb

Magnet

Ferrite
