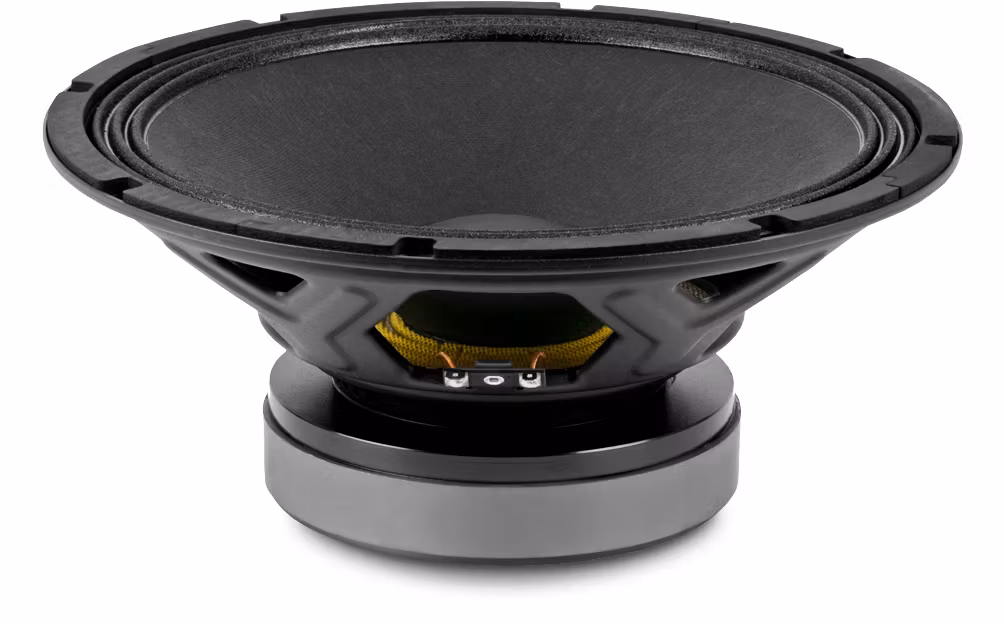

Beyma 12MCS500 - 8ohm

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

500 W AES

Nominal diameter

300 mm 12 in

Sensitivity

98 dB 1 W @ 1 m @ ZN

Minimum impedance

7.3 ohm

Frequency range

65-5000 Hz

Program power

1000 W

Voice coil diameter

63.5 mm 2.5 in

BL factor

17.6 N/A

Moving mass

0.059 kg

Winding length

19.5 mm

Air gap height

9.5 mm

Xdamage pp

40 mm

PARAMETERS THIELE & SMALL

Fs

57 Hz

Re

5.6 ohm

Qms

7.8

Qes

0.38

Qts

0.36

Vas

57 l

Cms

132 µm / N

Rms

2.7 kg/s

Efficiency %

2.6

Sd

0.055m²

Xmax

8 mm

Vd

440 cm³

Le @1 kHz

1.1 mH

CONSTRUCTION DETAILS

Depth

141 mm 5.55 in

Net weight

6 kg 13.3 lb

Total weight

6.7 kg 14.77 lb

Magnet

Ferrite
