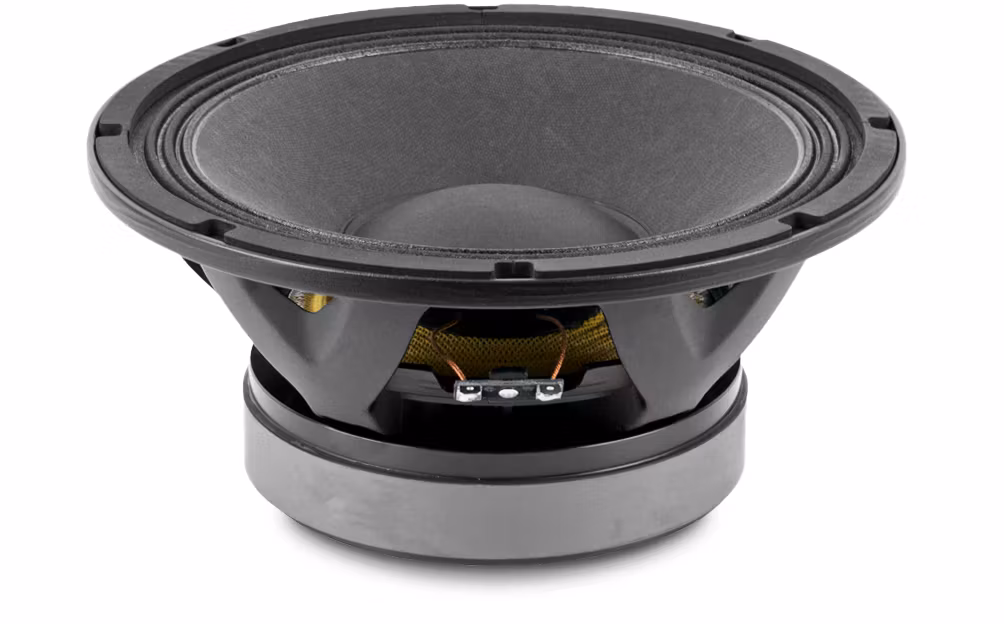

Beyma 10MC500

file_downloadDOWNLOAD DATASHEET

TECHNOLOGIES

MALT Cross

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

500 W AES

Nominal diameter

250 mm 10 in

Sensitivity

97 dB 1 W @ 1 m @ ZN

Minimum impedance

7.1 ohm

Frequency range

70-5000 Hz

Program power

1000 W

Voice coil diameter

63.5 mm 2.5 in

BL factor

18.3 N / A

Moving mass

0.044 kg

Winding length

19.5 mm

Air gap height

9.5 mm

Xdamage pp

40 mm

PARAMETERS THIELE & SMALL

Fs

65 Hz

Re

5.6 ohm

Qms

7.5

Qes

0.30

Qts

0.29

Vas

24 l

Cms

136 µm / N

Rms

2.4 kg / s

Efficiency %

2.1

Sd

0.035 m²

Xmax

8 mm

Vd

280 cm³

Le @1 kHz

1 mH

CONSTRUCTION DETAILS

Depth

124 mm 4.9 in

Net weight

5.7 kg 12.5 lb

Total weight

6.1 kg 13.42 lb

Magnet

Ferrite
