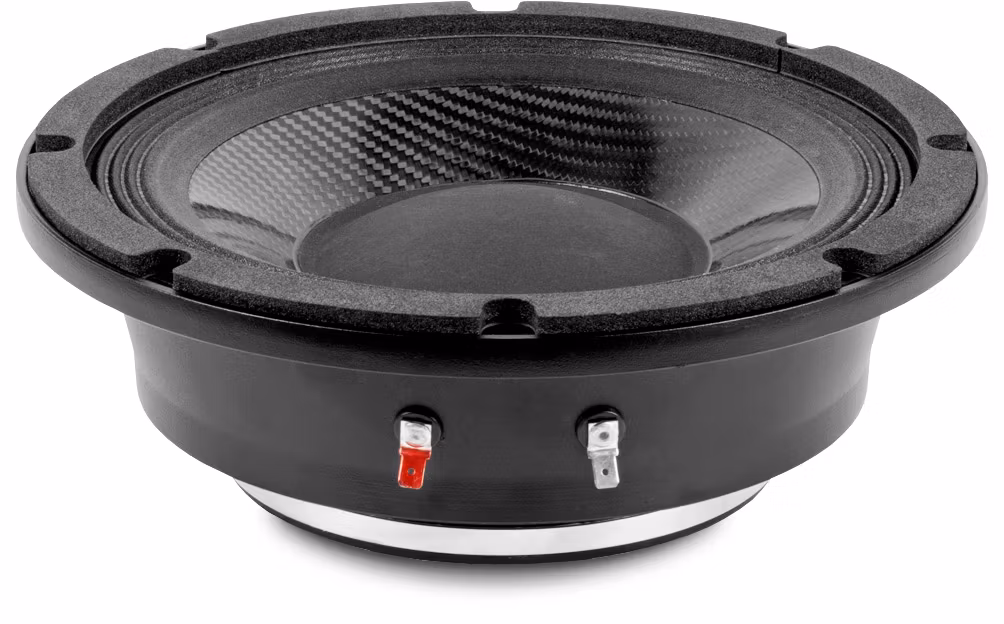

Beyma 10MCF400Nd

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

400 W AES

Nominal diameter

250 mm 10 in

Sensitivity

102 dB 1 W/1 m @ ZN

Minimum impedance

8.5 ohm

Frequency range

300-5000 Hz

Program power

800 W

Voice coil diameter

101.6 mm 4 in

BL factor

28.8 N/A

Moving mass

0.040 kg

Winding length

11.5 mm

Air gap height

10 mm

Xdamage pp

-

PARAMETERS THIELE & SMALL

Fs

260 Hz

Re

5.8 ohm

Qms

22

Qes

0.45

Qts

0.44

Vas

2 l

Cms

10 µm / N

Rms

3 kg / s

Efficiency %

7.2

Sd

0.038 m²

Xmax

3.5mm

Vd

133 cm³

Le @1 kHz

0.5 mH

CONSTRUCTION DETAILS

Depth

103 mm 4.05 in

Net weight

6.2 kg 13.67 lb

Total weight

6.6 kg 14.55 lb

Magnet

Neodymium
