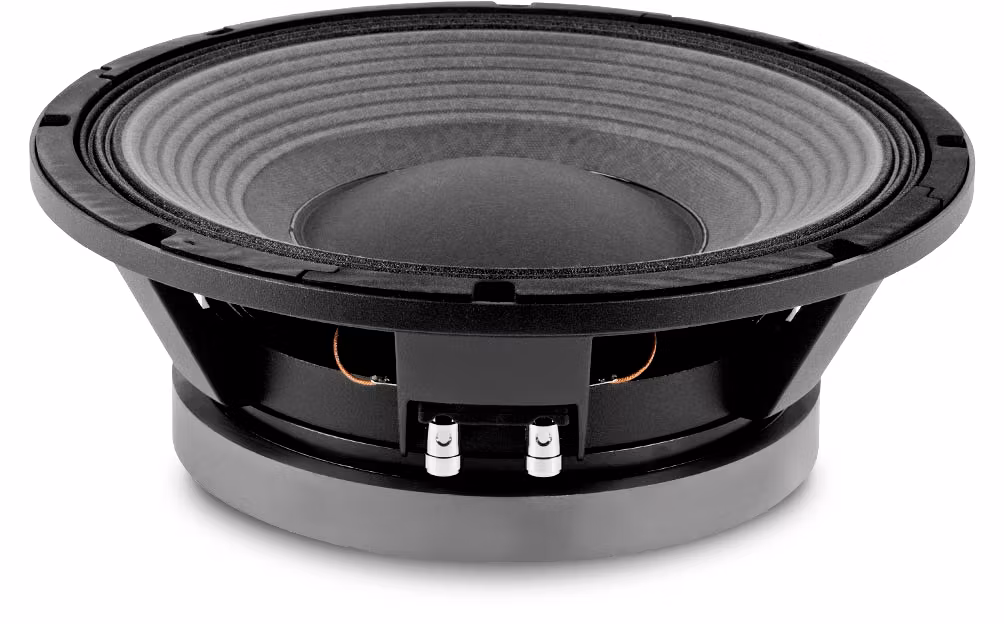

Beyma 12LX60V2 - 8OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

300 mm 12 in

Sensitivity

96 dB 1 W @ 1 m @ 2π

Minimum impedance

7.1 ohm

Frequency range

35-2000 Hz

Program power

1400 W

Recommended enclosure volume

12 / 60 l 0.7 / 2.24 ft³

Voice coil diameter

100 mm 4 in

BL factor

20 N / A

Moving mass

0.102 kg

Winding length

20 mm

Air gap height

10 mm

Xdamage pp

58 mm

PARAMETERS THIELE & SMALL

Fs

49 Hz

Re

5.1 ohm

Qms

15.3

Qes

0.4

Qts

0.38

Vas

43 l

Cms

99 µm / N

Rms

2.1 kg / s

Efficiency %

1.21

Sd

0.055 m²

Xmax

9 mm

Vd

500 cm³

Le @1 kHz

2.1 mH

CONSTRUCTION DETAILS

Net weight

9.7kg 21.39 lb

Total weight

10.4 kg 22.92 lb

Magnet

Ferrite
