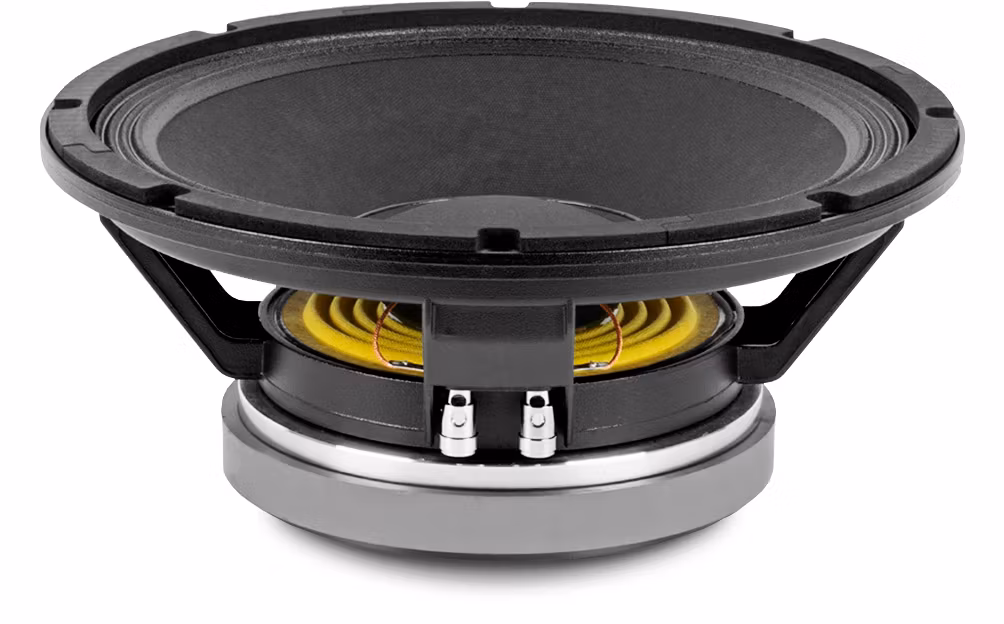

Beyma 12MI100 - 8OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

450 W AES

Nominal diameter

300 mm 12 in

Sensitivity

100 dB 1 W @ 1 m @ ZN

Minimum impedance

8 ohm

Frequency range

60-4000 Hz

Program power

900 W

Recommended enclosure volume

-

Voice coil diameter

76.2 mm 3 in

BL factor

21.6 N / A

Moving mass

0.047 kg

Winding length

13.5 mm

Air gap height

10 mm

Xdamage pp

24 mm

PARAMETERS THIELE & SMALL

Fs

58 Hz

Re

6.3 ohm

Qms

5.5

Qes

0.23

Qts

0.22

Vas

64 l

Cms

163 µm / N

Rms

3.3 kg / s

Efficiency %

5.1

Sd

0.053 m²

Xmax

3 mm

Vd

159 cm³

Le @1 kHz

1 mH

CONSTRUCTION DETAILS

Depth

135 mm 5.4 in

Net weight

7.2 kg 15.8 lb

Total weight

8 kg 17.63 lb

Magnet

Ferrite
