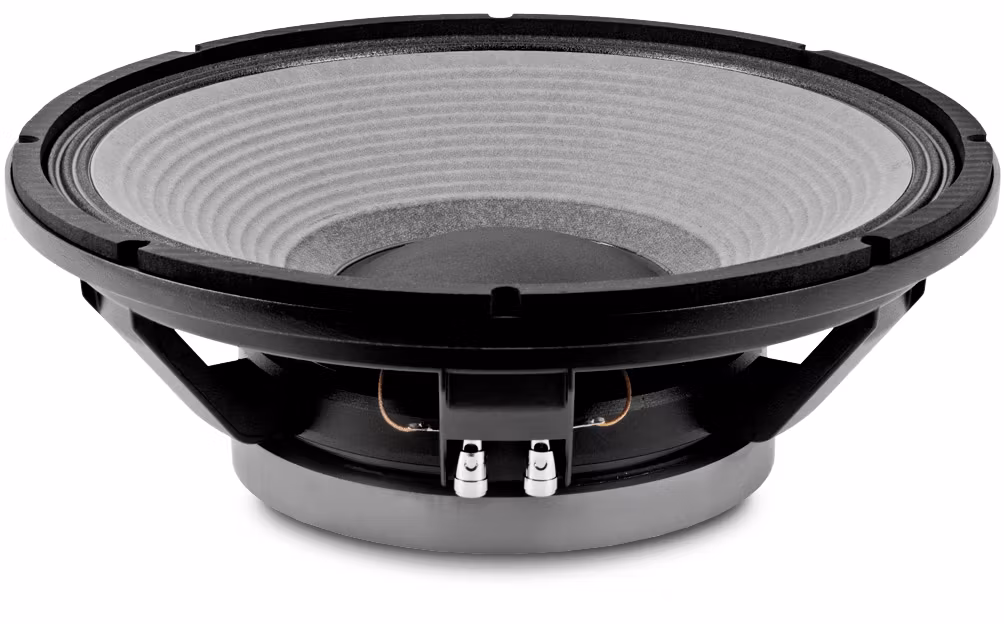

Beyma 15LX60v2 - 8ohm

DOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

700 W AES

Nominal diameter

380 mm 15 in

Sensitivity

98 dB 1 W @ 1 m

Minimum impedance

7.2 ohm

Frequency range

30-1500 Hz

Program power

1400 W

Recommended enclosure volume

60 / 150 l 2.12 / 5.3 ft³

Voice coil diameter

100 mm 4 in

BL factor

21.1 N / A

Moving mass

0.147 kg

Winding length

20 mm

Air gap height

10 mm

Xdamage pp

58 mm

PARAMETERS THIELE & SMALL

Fs

42 Hz

Re

5.1 ohm

Qms

21.23

Qes

0.45

Qts

0.44

Vas

105.53 l

Cms

92.4 µm / N

Rms

1.9 kg / s

Efficiency %

1.67

Sd

0.091 m²

Xmax

8 mm

Vd

728 cm³

Le @1 kHz

2.1 mH

CONSTRUCTION DETAILS

Net weight

10.2 kg 22.49 lb

Total weight

13.30 kg 29.3 lb

Magnet

Ferrite
