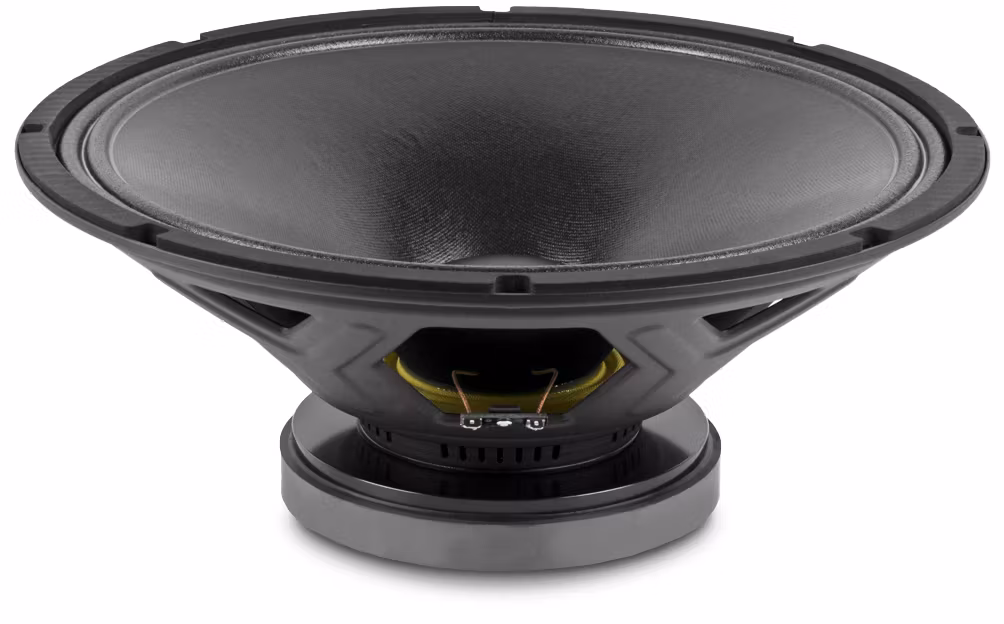

Beyma 15WRS400 - 8OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

400 W AES

Nominal diameter

380 mm 15 in

Sensitivity

98.5 dB 1 W @ 1 m @ ZN

Minimum impedance

7 ohm

Frequency range

40-4000 Hz

Program power

800 W

Recommended enclosure volume

70 / 150 l 2.45 / 5.25 ft.³

Voice coil diameter

76.2 mm 3 in

BL factor

18.2 N/A

Moving mass

0.091 kg

Winding length

16 mm

Air gap height

8 mm

Xdamage pp

30 mm

PARAMETERS THIELE & SMALL

Fs

36 Hz

Re

5.6 ohm

Qms

9.1

Qes

0.35

Qts

0.33

Vas

236 l

Cms

215 µm / N

Rms

2.3 kg/s

Efficiency %

3

Sd

0.088 m²

Xmax

6.3 mm

Vd

555 cm³

Le @1 kHz

1.1 mH

CONSTRUCTION DETAILS

Depth

163 mm 6.42 in

Net weight

6.25 kg 13.78 lb

Total weight

7.25 kg 15.98 lb

Magnet

Ferrite
