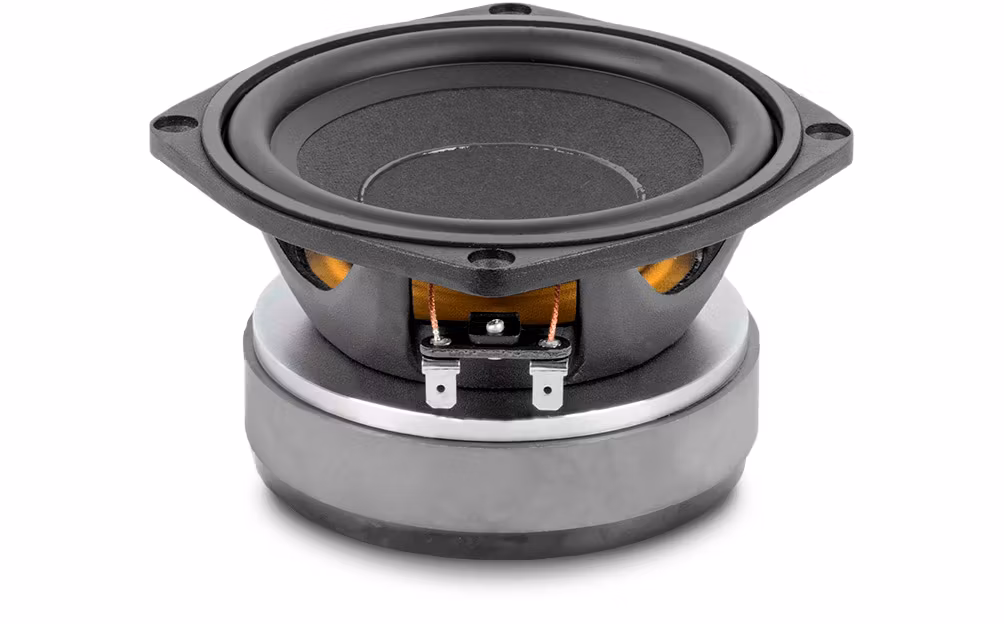

Beyma 5P200fe - 8OHM

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

150 W AES

Nominal diameter

125 mm 5 in

Sensitivity

92 dB 1 W/1 m @ ZN

Minimum impedance

6.7 ohm

Frequency range

70-10000 Hz

Program power

300 W

Recommended enclosure volume

4 / 10 l 0.14 / 0.35 ft.³

Voice coil diameter

38.1 mm 1.5 in

BL factor

8.5 N / A

Moving mass

0.01 kg

Winding length

14 mm

Air gap height

6 mm

Xdamage pp

16 mm

PARAMETERS THIELE & SMALL

Fs

72 Hz

Re

5.2 ohm

Qms

7.5

Qes

0.35

Qts

0.33

Vas

5.7 l

Cms

451 µm/N

Rms

0.65 kg /s

Efficiency %

0.6

Sd

0.0095 m²

Xmax

5.7 mm

Vd

49 cm³

Le @1 kHz

0.6 mH

CONSTRUCTION DETAILS

Depth

79 mm 3.11 in

Net weight

2.2 kg 4.8 lb

Total weight

2.3 kg 5.1 lb

Magnet

Ferrite
