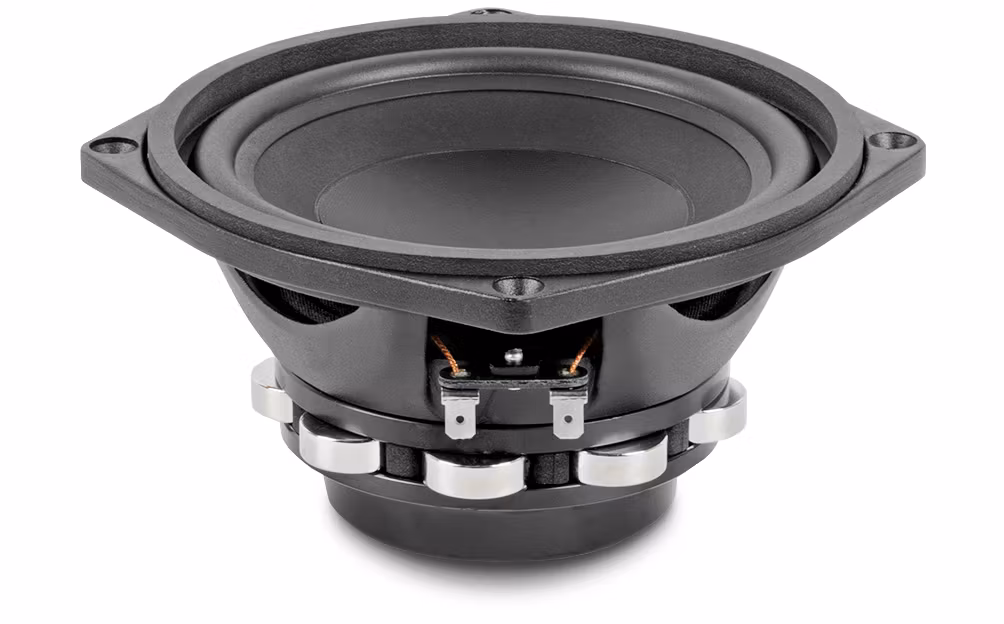

Beyma 6P200nd

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Nominal impedance

8 Ohm

Power capacity

200 W AES

Nominal diameter

165 mm 6.5 in

Sensitivity

92 dB 1 W @ 1m @ 2π

Minimum impedance

5.8 ohm

Frequency range

60-9000 Hz

Program power

400 W

Recommended enclosure volume

10 / 40 l 0.35 / 1.41 ft.³

Voice coil diameter

50.8 mm 2 in

BL factor

10.5 N /A

Moving mass

0.017 kg

Winding length

14 mm

Air gap height

7 mm

Xdamage pp

20 mm

PARAMETERS THIELE & SMALL

Fs

56 Hz

Re

5.3 ohm

Qms

3.7

Qes

0.32

Qts

0.29

Vas

11.9 l

Cms

468 µm / N

Rms

1.6 kg / s

Efficiency %

0.65

Sd

0.0135 m²

Xmax

5.5 mm

Vd

74.2 cm³

Le @1 kHz

0.6 mH

CONSTRUCTION DETAILS

Depth

86 mm 3.4 in

Net weight

1.9 kg 4.2 lb

Total weight

2 kg 4.4 lb

Magnet

Neodymium
