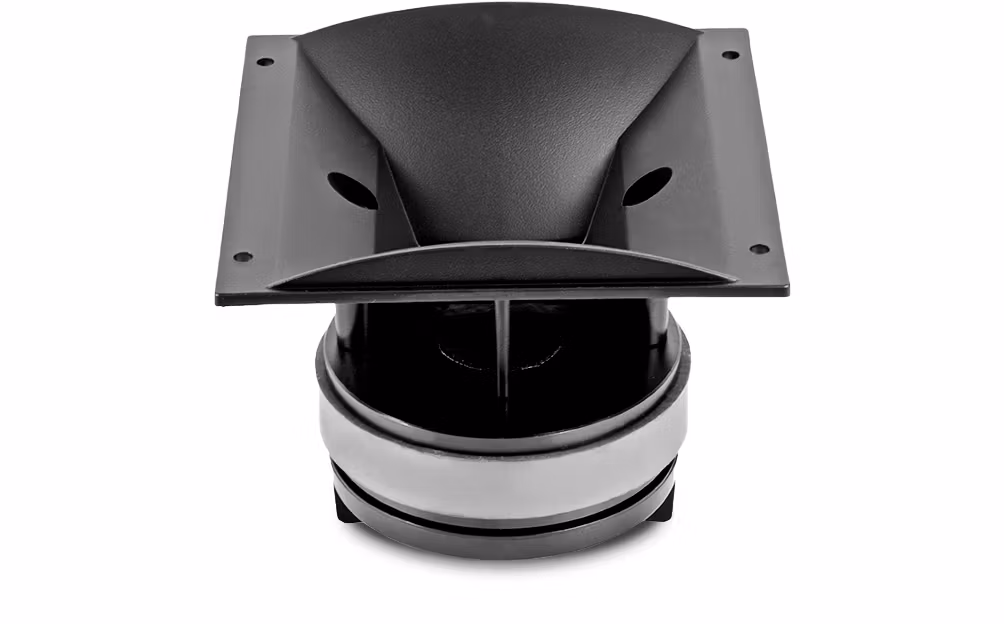

Beyma SMC8060/N - Driver med horn

file_downloadDOWNLOAD DATASHEET

TECHNICAL SPECIFICATIONS

Throat diameter

25.4 mm 1 in

Nominal impedance

8 Ohm

Minimum impedance

5 ohm

Re

4.3 ohm

Power capacity

50 W AES above 1.5 kHz

Program power

100 W above 1.5 kHz

Sensitivity

107 dB 1W / 1m @ ZN

Frequency range

800-18000 Hz

Recom. crossover frequency

1.5 kHz or higher (12dB/oct min slope)

Voice coil diameter

44.4 mm 1.75 in

Flux density

1.65 T

BL factor

8.5 N / A

Diaphragm material

Polyester

CONSTRUCTION DETAILS

External diameter

140x140 mm 5.5x5.5 in

Depth

122 mm 4.8 in

Cutout diameter

129x112 mm 5.1 x 4.4 in

Net weight

1.5 kg 3.3 lb

Total weight

1.7 kg 3.74 lb

Magnet

Ferrite
