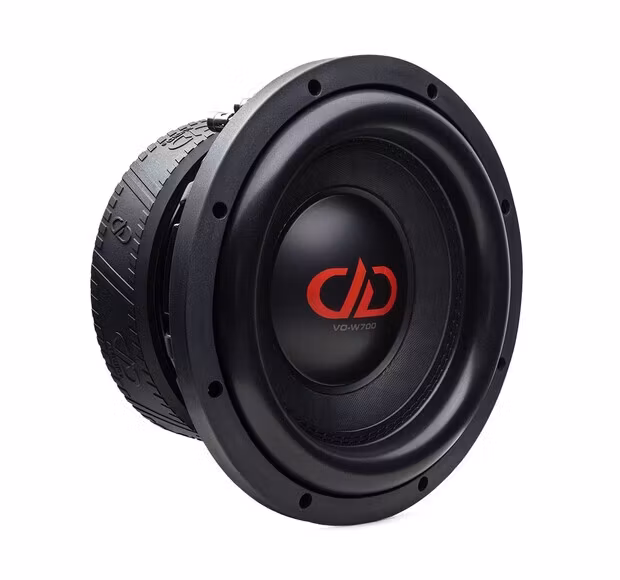

DD Audio VO-W710-D4

The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not. The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces. Speaker Size (In): 10 Watts RMS: 1200 Impedance: D4 VCD (In): 3 Piston Diameter (MM): 203.2 Frequency Response (Hz): 35 - 2k Fs (Hz): 42 Qms: 4.684 Qes: 0.462 Qts: 0.421 Vas (Liters): 9.331 BL (TM): 30 Xmech (MM): 30 Xmax (MM): 12 Frame OD w/Gasket (In): 10.625 Mounting Diameter (In): 9.375 Mounting Diameter (MM): 238 Mounting Depth (In): 4.8125 Mounting Depth (MM): 122
